    • Indoor Fiber Cable

    Indoor fiber optical cable, suitable for indoor application, is a fiber optic cable laid in a building, and is mainly used for communication equipment, computers, switches and end user equipment. FTTH Drop Cable is commonly known as indoor hanging wiring cable. FTTH Drop Cable is mostly single-core and double-core structure. It can also be made into a 4,8 or 12 cores structure with a cross-section of 8-shaped.
  • Contact Us
    • Product Description

    Classification

    Features

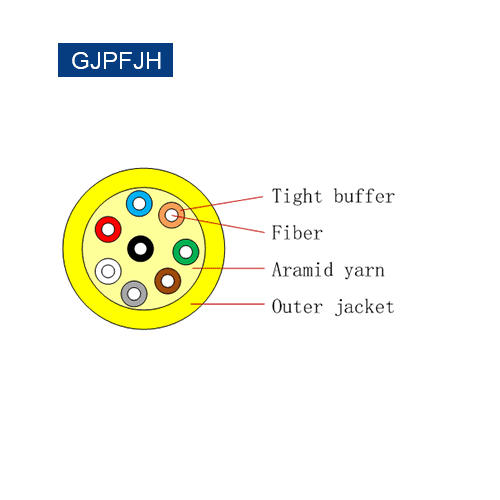

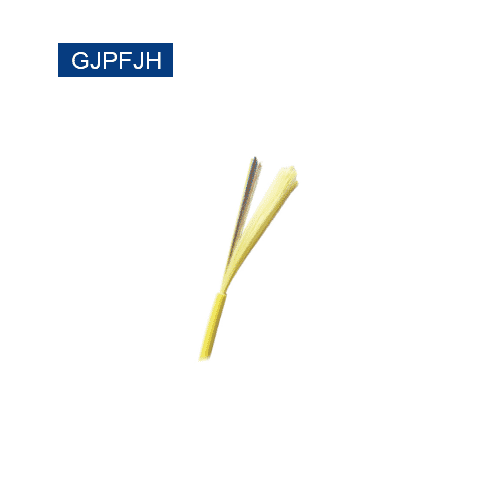

    Indoor fiber optic cable

    1.1 ~ 72 cores

    2.bunched or ribbon fiber

    3.SM (G.652D, G.655, G.657.A1, G.657.A2)   and MM (OM1, OM2, OM3, OM4) are available;

    4.LSZH，PVC outer jacket material optional

    5.High-strength aramid reinforcement with   good tensile properties

    6.Tight-set dry structure for easy   construction and maintenance

    7.Small outer diameter, light weight,   flame retardant, easy to peel off, and high flexibility

    8.Tight sleeve optical fiber, easy to   peel;

    9.The outer jacket is corrosion-resistant,   waterproof, flame retardant and environmentally friendly

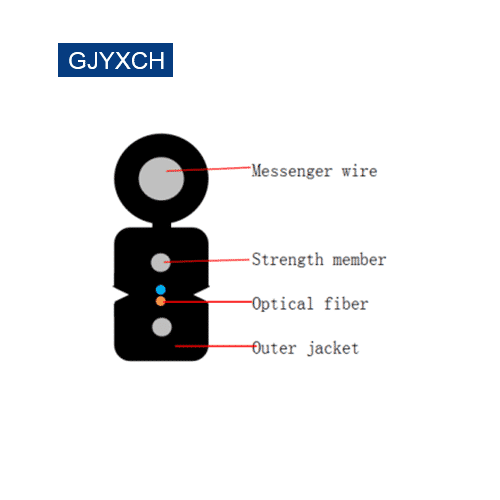

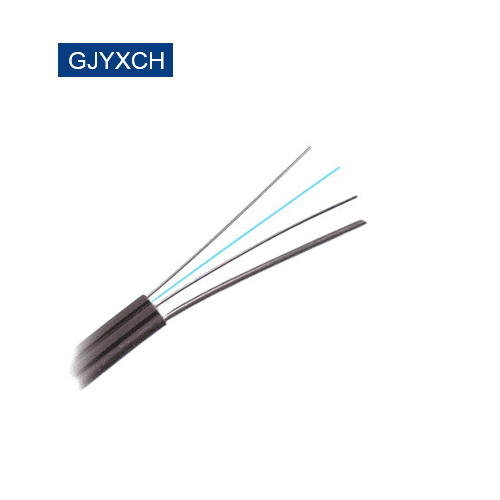

    FTTH Drop Cable

    1.1 ~ 8 cores

    2.Single-mode fiber is commonly used   (G.652D, G.657.A1, G.657.A2)

    3.Lighter and small diameter，flame retardant, separated easily and   excellent softness

    4.Two parallel FRP or metal reinforcements   provide good compression resistance and protect the fiber;

    5.The cable has the advantages of simple   structure, light weight and strong practicability;

    6.Unique groove design, easy to peel, easy   to connect, simplify installation and maintenance;

    7.Low-smoke, halogen-free flame-retardant   polyethylene sheath or flame-retardant PVC sheath for environmental   protection.
