  • Fusion splicer Fusion splicer Fusion splicer
  • Fusion Splicers

    FTTH high-precision fusion splicer with its sleek shape and reliable quality, is a precision, durable and convenient fiber construction instrument specially designed for installation, operation and fiber network maintenance. It is widely used in the field of optical communication such as construction, inspection and maintenance of fiber cable.
  • Contact Us
  • SPTK-4107

    ● Used for FTTH and ordinary fiber project

    ● Core to core alignment by PAS technology

    ● 8 sec splicing time and 30 sec heat time

    ● 300 X or Y view, 200 X and Y view

    ● 5 inch digital high-quality LCD screen, observe X and Y view at same time

    ● Three in one fixture, splicing single fiber, cable indoor and pig tail

    ● Built in large capacity lithium battery of 200 times splicing and heating

    ● Small size and light weight, 2.1KG including battery


    ● Compact & Light weight

    ● Applied for Fibers, Cables and SOC (splice- on connector)

    ● Integrated Holder Design

    ● Fully Automatic, Semi-automatic and Manual Operation

    ● 7 sec splicing time and 15 sec heat time

    ● Shockproof, Drop resistance

    ● Power saving Function

    ● 4.3 inch Color LCD monitor

    ● USB&DC interface


    ● Precise fiber core alignment, ultra-low fiber fusion splicing consumption

    ● 7s fast fusion splicing, 18s highly efficient heating.

    ● 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length

    ● 300 groups of fusion splicing modes, 100 groups of heating modes

    ● 10000 groups of fusion records, 64 images storage

    ● Ceramic presser foot, ceramic V-block, all-in-one fixture

    ● Dual-direction splicing, automatic splicing, intelligent pyrocondensation

    ● USB and SD card interfaces, U-disk automatic software upgrade

    ● Built-in modular lithium battery, supports 220 times of splicing and heating cycles.

    ● Optical Assembly

    ● Opt-Electronics Manufacture

    ● Optical network construction and repair

    ● LAN/WAN

    ● Fiber to the home (FTTH)

    ● Data center

    Part Number

    Product Description

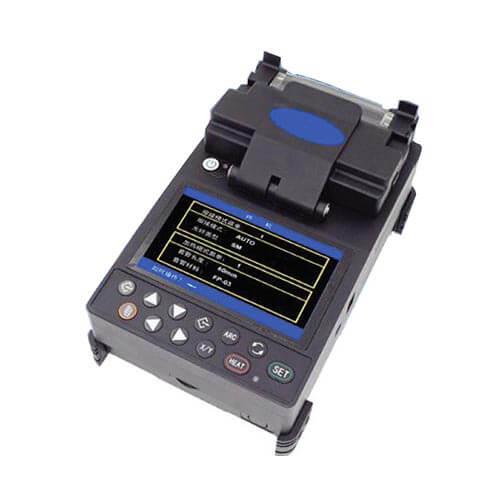

    Optical Fiber Fusion Splicer Mini type

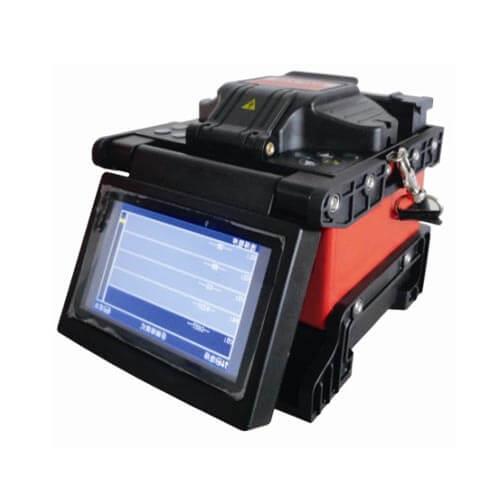

    Handheld FTTH Fusion Splicer

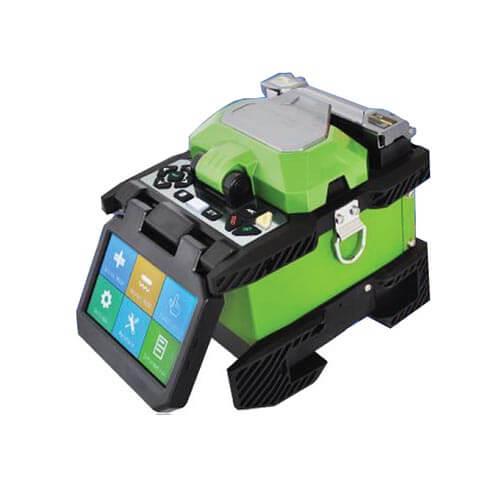

    Optical Fiber Fusion Splicer
