  • 2.5G SFP 2.5G SFP 2.5G SFP 2.5G SFP
  • 2.5G SFP

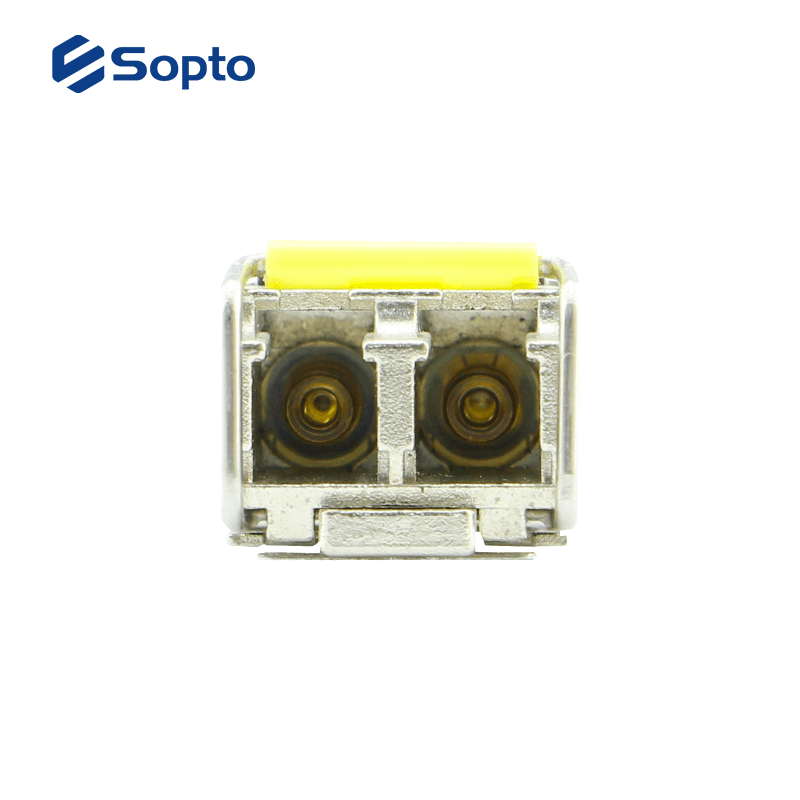

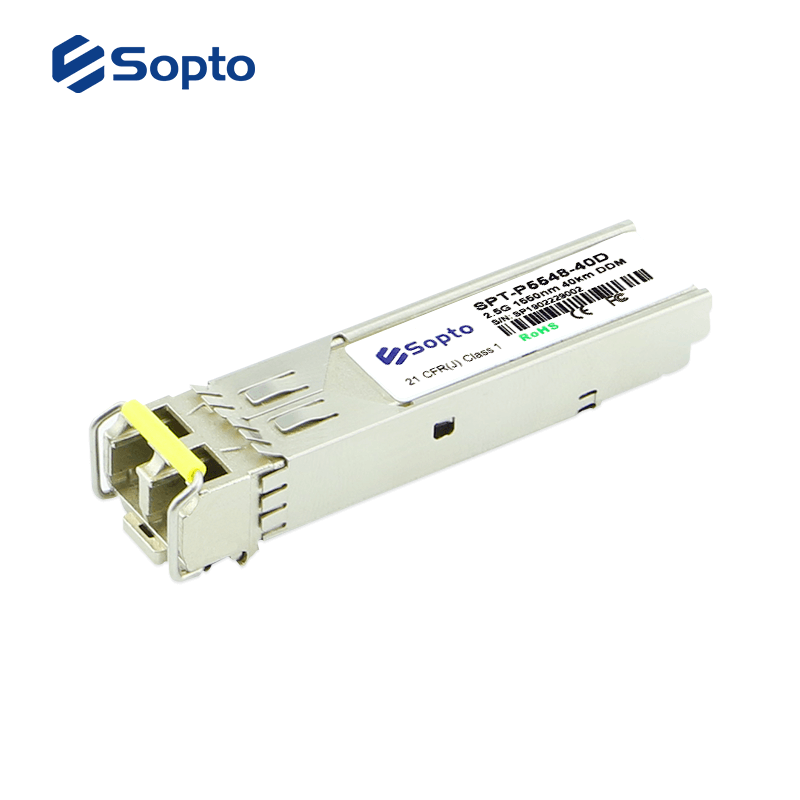

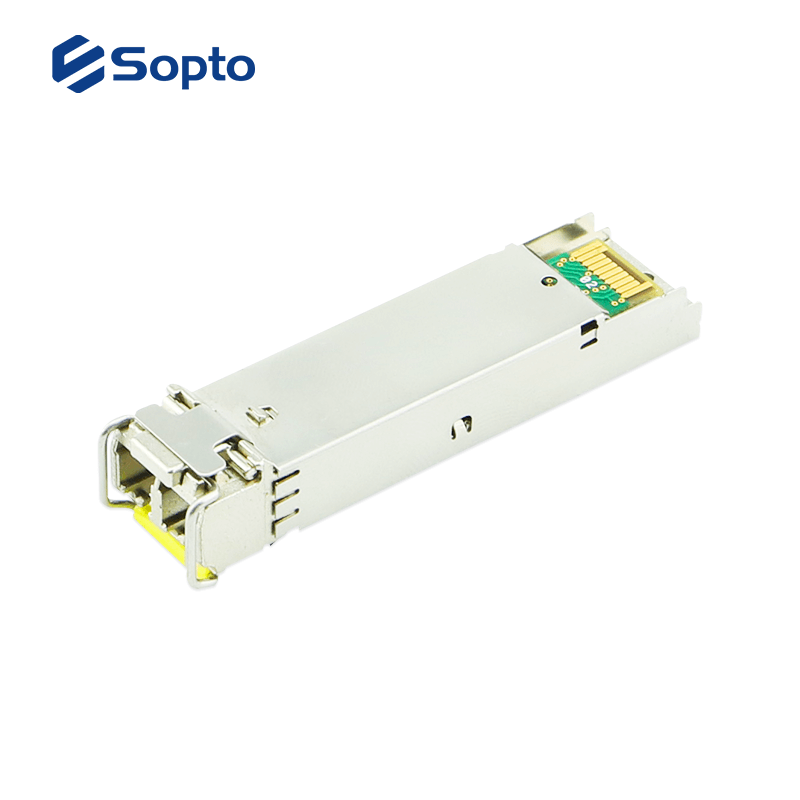

    SOPTO’s 2.5G SFP is a series of optical transceiver modules designed for use in 2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
  • Contact Us
  • ● Single +3.3V power supply

    ● Built-in digital diagnostic functions

    ● Supports data rates up to 2.67Gb/s

    ● Transmission distance up to 300m on MMF OM3 and 120km over SMF

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C


    Hot Model

    P/NDescriptionDetails
    SFP-P1348-10D1310nm, 2.5Gbps, 10km, 0ºC ~ +70ºC, DDM

    PDF

    SPT-P5548-120D

    1550nm, 2.488Gbps, 120km, 0ºC ~ +70ºC, DDM

    PDF

    If you have more requirements about wavelength, distance etc, please contact us.

    Compliant

    ● RoHS-6

    ● SFP+ MSA

    ● FC-PI 13.0

    ●  IEEE Std 802.3

    Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

    transceiver certificate.png

    ---------------------------------------------------------------------------------------------------------------------------------


    ● 2X/1X FC

    ● 1000Base Ethernet

    ● SDH/SONET

    ● Storage Area Network (SAN)

    ● Other Optical Link


    Related Articles

    ●  Single Mode Fiber Transceivers

    ●  What is the Basic Principle of an Optical Module

    ●  Fiber Optic Transceiver Module's Selection and Use Skills

    ●  Introduction to common package types of optical modules


    PN

    Data Rate(Gbps)

    Distance

    Fiber

    Output Power(dBm)

    Sensitivity(dBm)

    Interface

    Temp.

    DDM

    SPT-P8548-S3D

    2.5

    300m/OM3

    MM

    -5-1

    -11

    Duplex LC

    0 to 70

    D

    SFP-P1348-02D

    2.5

    2km

    SM

    -1013

    -19

    Duplex LC

    0 to 70

    D

    SFP-P1348-10D

    2.5

    10km

    SM

    -50

    -15

    Duplex LC

    0 to 70

    D

    SFP-P1348-20D

    2.5

    20km

    SM

    -40

    -15

    Duplex LC

    0 to 70

    D

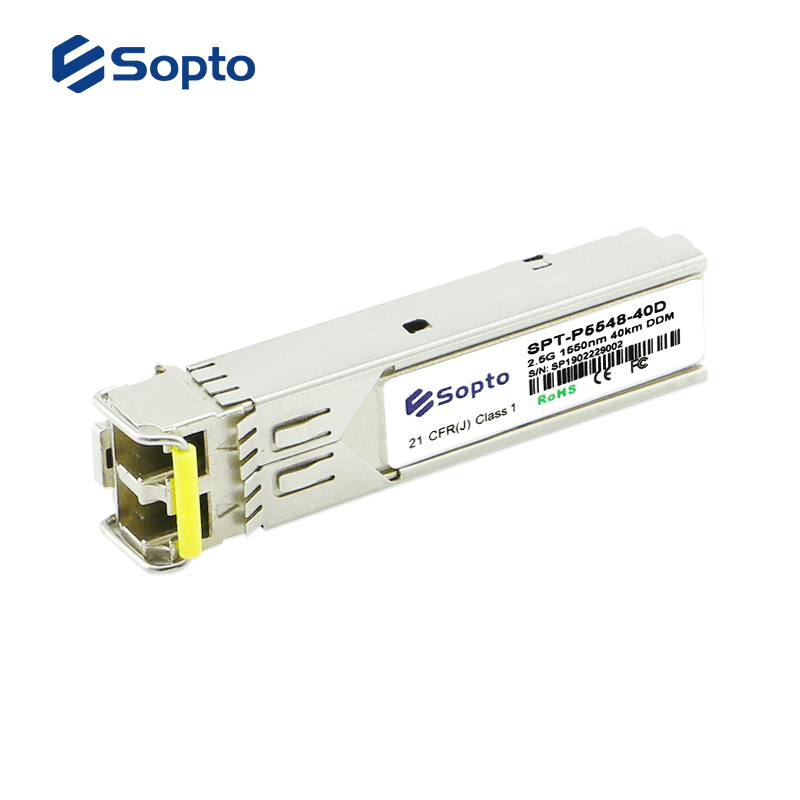

    SPT-P5548-40D

    2.5

    40km

    SM

    03

    -17

    Duplex LC

    0 to 70

    D

    SPT-P5548-80D

    2.5

    80km

    SM

    05

    -23

    Duplex LC

    0 to 70

    D

    SPT-P5548-100D

    2.5

    100km

    SM

    >0

    -29

    Duplex LC

    0 to 70

    D

    SPT-P5548-120D

    2.5

    120km

    SM

    >1

    -30

    Duplex LC

    0 to 70

    D
