Max rate

100Mbps

1000Mbps

1000Mbps

10Gbps

1000Mbps

25Gbps，40Gbps

Frequency（MHz）

100

100

250

500

600

2000

Max transmission distanc（m）

100

100

100

100

100

30

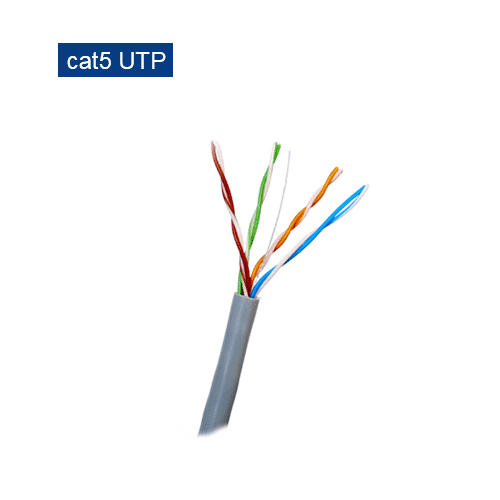

Cat5e

● FTP or UTP,SFTP

● 26AWG/24AWG/23AWG

● PVC/PE/LSZH Jacket optional

● Standard   supports up to 100MHz and speeds up to 1000Mb/s over 100 meters of cable.

● Fully backward compatible with all the previous categories.

● RJ-45 plugs on both sides of the short LAN cable meet the standards of TIA/EIA-568B or 568A.

● RJ-45 plugs on both sides of the short LAN cable are designed with 50 mm gilt, with good contact and

transmission properties, oxidation resistance, rust, and no blackening.

● Operating Temperature: -20 to 60°C

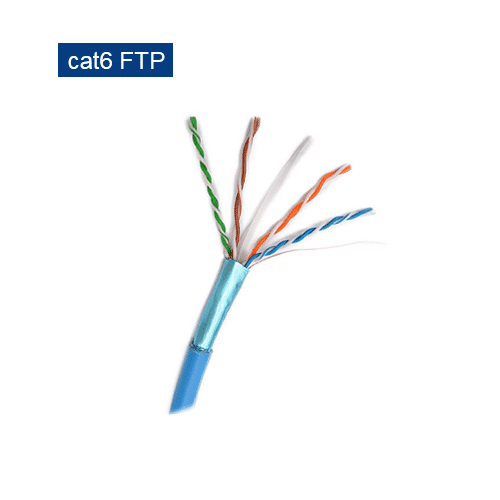

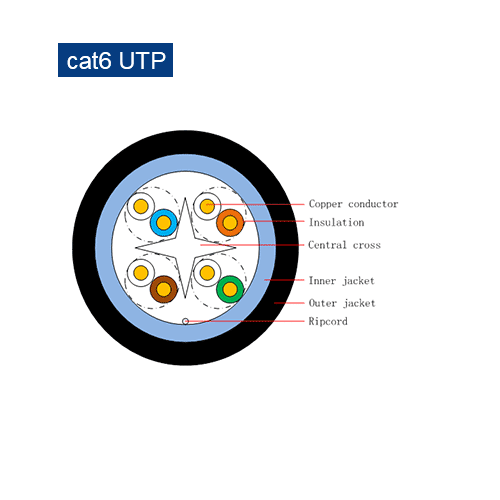

Cat6/6a

● FTP or UTP, SFTP

● 26AWG/24AWG/23AWG

● PVC/PE/LSZH Jacket optional

● Standard supports up to 250MHz and speeds up to 1000Mbp/s over 100 meters of Cat6 cable.

● Standard supports up to 250MHz and speeds up to 1000Mbp/s over 100 meters of Cat6a cable.

● Fully backward compatible with all the previous categories.

● RJ-45 plugs on both sides of the short LAN cable meet the standards of TIA/EIA-568B or 568A.

● RJ-45 plugs on both sides of the short LAN cable are designed with 50 mm gilt, with good contact and

 transmission properties, oxidation resistance, rust, and no blackening.

● Operating Temperature: -20 to 60°C

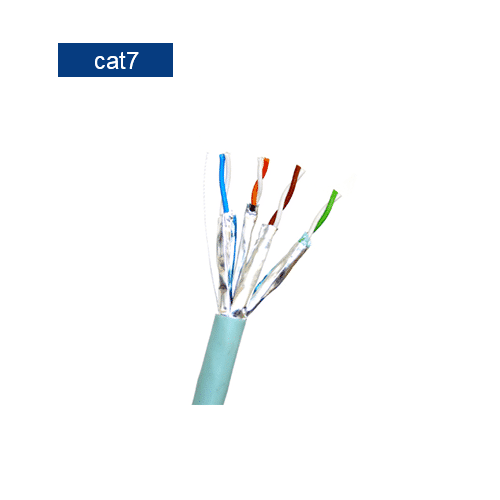

Cat7

● FTP

● 26AWG

● PVC/PE/LSZH Jacket optional

● Standard supports up to 600MHz and speeds up to 10Gbp/s over 100 meters of cable.

● Fully backward compatible with all the previous categories.

● RJ-45 plugs on both sides of the short LAN cable meet the standards of TIA/EIA-568B or 568A.

● RJ-45 plugs on both sides of the short LAN cable are designed with 50 mm gilt, with good contact and

 transmission properties, oxidation resistance, rust, and no blackening.

● Operating Temperature: -20 to 60°C
