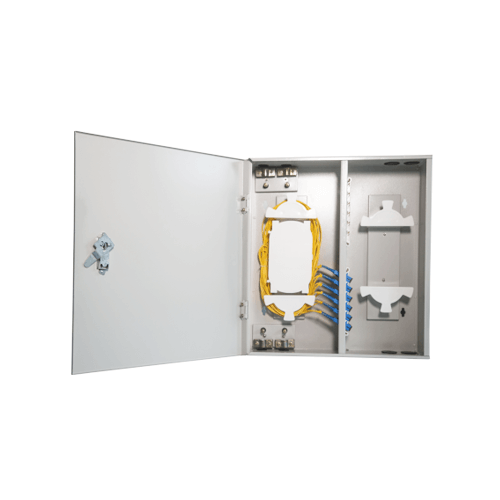

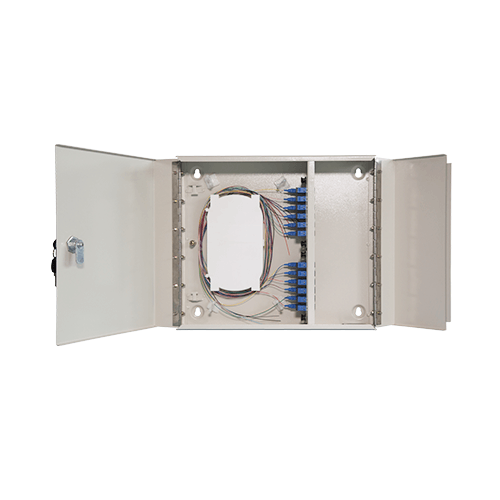

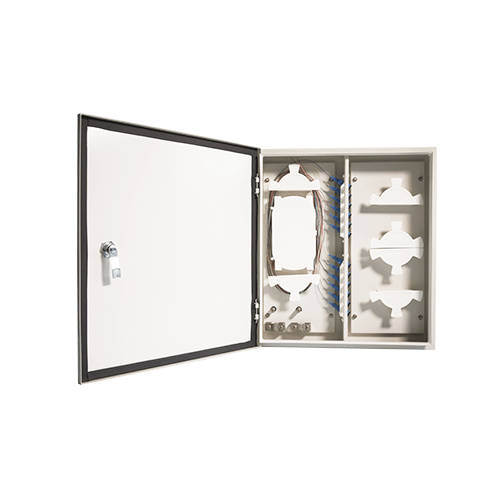

  • 24 cores Fiber Terminal Box

    FTTH Terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
  • Contact Us
  • ● Single door, double door optional, easy to operate

    ● Suitable for outdoor or indoor use

    ● Applicable to SC, LC duplex, FC, ST and other adapters and pigtails

    ● Made of high-quality metal material, fully enclosed structure, beautiful appearance

    ● Effectively protect and manage cables

    ● Adopt anti-theft lock mechanism

    ● Integrated processing of feeder cable and lead-in cable, fiber connection, fixing, storage, and distribution


    Item

    Parameter

    Model No.

    SPDF-O24SCS-XXX

    Mounting way

    Wall-mounting or Pole   mounting

    Insert Loss

    ≤ 0.2dB

    UPC Return  Loss

    ≥ 50dB

    APC Return  Loss

    ≥ 60dB

    Insert  and Pull out Life

    ≥ 1000 times



    ● Telecommunication subscriber loop

    ● Fiber to the home (FTTH)

    ● LAN/WAN


    Part Number

    Product Description

    Size(mm)

    SPDF-I24SCS-WMMB-D

    FTTH Terminal Box Indoor wall mounted 24 cores Simplex SC/Duplex LC type without adaptors , pigtails, Metal Double door customized   type B

    350*350*140

    SPDF-I24SCS-WMA

    FTTH Terminal Box Indoor wall mounted 24cores Simplex SC/Duplex LC type without adaptors , pigtails Metal Single door type A

    455*405*80

    SPDF-I24SCS-WMA-D

    FTTH Terminal Box Indoor wall mounted 24cores Simplex SC/Duplex LC type without adaptors , pigtails Metal Double door type A

    350*350*80

    SPDF-O24SCS-WMA

    FTTH Terminal Box Outdoo wall mounted 24cores Simplex  SC/Duplex LC type without adaptors , pigtails Metal Single door type A

    455*405*80
