  • 6 cores

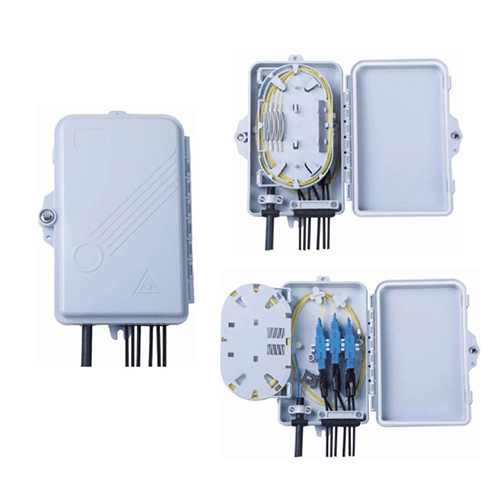

  • 6 cores Splitter Distribution Box

    This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
  • Contact Us
  • ● Protects and manages cable effectively

    ● Secured with anti-theft locking mechanism

    ● Standard size, light weight

    ● High quality PC +ABS material

    ● Good properties of dust, and moisture proofing, IP65

    ● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one

    ● Suitable for SC and LC duplex adaptor and pigtail

    ● Easy to operate

    ● Suitable for both outdoor and indoor use



    Model No.


    Mounting way


    Work Temperature

    -40 °C ~+85 °C

    Relative Humidity

    ≤ 85% (+30 °C)

    Atmospheric Pressure


    Insert Loss

    ≤ 0.2dB

    UPC Return Loss

    ≥ 50dB

    APC Return Loss

    ≥ 60dB

    Insert and Pull out Life

    ≥ 1000 times


    The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)

    Withstand  Voltage

    Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flash over. U ≥3000V (direct current)

    ● Telecommunication subscriber loop

    ● Fiber to the home (FTTH)

    ● LAN/WAN

    Part Number

    Product Description



    Splitter Distribution Box Outdoor wall mounted 6 cores Simplex SC/Duplex LC type available for Steel tube splitter installation without adaptors, pigtails and splitter Plastic   type A
