Media Converter
SOPTO offers different types of switches and fiber converters like 10/100M, 10/100/1000M and 10G fiber converters, SFP fiber converters, manageable/unmanageable fiber converters, OEO fiber converters, POE fiber converters and fiber converter chassis; transmitting distance from 2km(MM) to 150km(SM) with SC or LC or FC connectors.
There are two types chassis for fiber media converters, typical type is a 19-inch rack-mounted chassis, with 14 or 16 slots on it, so that it can fit 14 or 16 pieces of chassis type fiber converters. The difference is 14 slots chassis is used with standalone fiber media converters, while 16 slots chassis is used with card type fiber optic media converters, and 16 slot chassis is bigger size.
Classcification | Features |

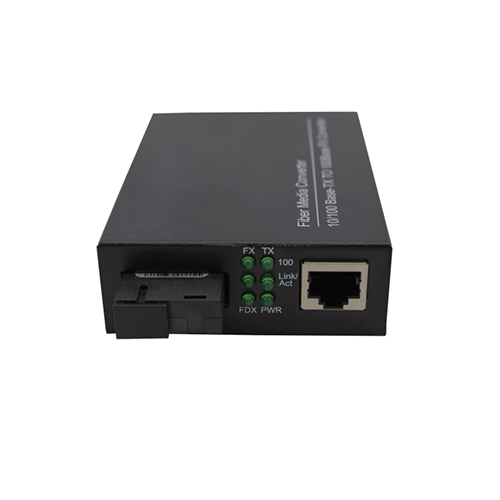

● Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards ● Auto-negotiation support on RJ45 port ● Auto-Negotiation of duplex(HDX/FDX) on RJ45 port ● Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data. ● Auto MDI/MDI-X support on RJ45 port ● Distances up to: 2 km Multimode, 120 km Single Mode ● SC, FC optical Interface ● Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status ● External power adapter | |

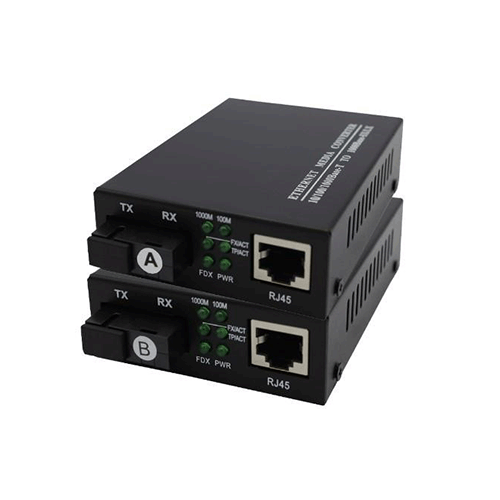

●Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX ● Provides DIP switch for LFP function (Disable / Enable) setting ● 10/100/1000Mbps Ethernet ● 10/100/1000 BASE-T/TX electrical port ● 1000 BASE-SX/LX optical port ● Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data. ● Optical port supports 1000Mbps full duplex data ● Automatic MDI/MDI-X crossover ● Distances up to 2km for Multi-mode; Up to 120km for Single mode ● Voltage transient protection on all power and signal input. output lines provide unconditional protection from power surges and other voltage transient events ● No in-field optical adjustments required ● SNMP management optional ● Internal Power supply optional | |
● Support Jumbo Frame ● Transparent Transport and very low delay ● Support ITUT prescribed DWDM/CWDM wavelength ● Support Loopback test function ● Support hot plugging ● Full State Led display ● Easy installation | |
1G OEO ●Realize digital signal conversion between the SFP modules under two same signal rates, but different wavelength, distance and mode type ● Support 1.25Gbs Digital optical signal conversion ● Fast speed, shorter delay, High efficiency ● Includes two SFP ports ● Protocol-independent operation ● Converts between dissimilar fiber modes and Wavelengths ● Includes diagnostic LEDs 10G OEO ● Support Loopback ● Support Jumbo Frame ● Transparent Transport and very low delay ● Support ITUT prescribed DWDM/CWDM wavelength ● Support hot plugging ● Support 2U Rack (16 channel) and standalone use ● Full State Led display ● Easy installation | |
● Built-in IP-based Web Interface ● Supporting remote and local management ● Supporting IEEEE 802.3X Frame Flow Control for Full-Duplex mode ● Store and Forward mechanism ● Manual IP address setting/DHCP client for IP address assignment ● SNMP v1 / v2c monitor / private Enterprise MIB ● Event trap and SNMP trap support ● Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port ● Supports Port Status / Ethernet Statistics on both TP and Fiber interface ● Supports Maximum frame size to 9K bytes ● Loop detection / Broadcast / Multicast / Unicast storm control ● Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN ● 802.1p Tag Priority / IP address priority / IP DSCP option in ● Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies ● TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test ● 16 TCP / UDP Filter groups ● Firmware upgrade via remote Web interface ● LED indicators for easy network diagnosing ● Internal Power supply optional | |

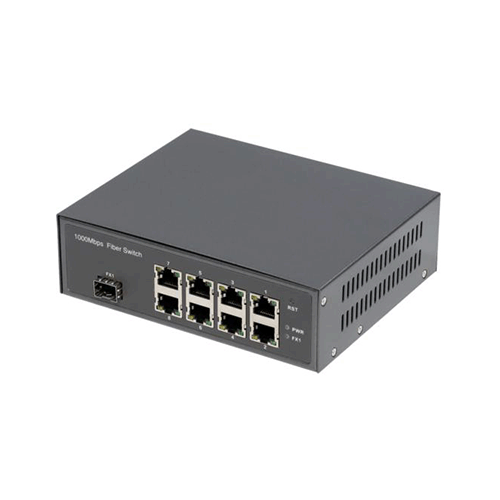

● 1 ~ 4 x 1000M SFP fiber port ● 2 ~ 8 x10/100/1000M auto-sensing Half/Full duplex RJ45 ports ● Brocast Storm control and port-based ingress/egress rate control ● 4K MAC addresses with automatic learning and aging ● IEEE 802.1x support for secure user authentication ● SNMP、WEB management optional ● Internal Power suppy optional | |
● 1 ~ 2 x SFP fiber port ● 2 ~8 x10/100/1000M auto-sensing Half/Full duplex RJ45 ports ● RJ45 port support IEEE802.3af( IEEE802.3at optional) ● IEEE802.3/u/x compliant ● Conspicuous LED indicators for power/link diagnose/data ● Support Auto MDI/MDIX ● PoE power for each port is 15.4W for AF and 30W for AT | |

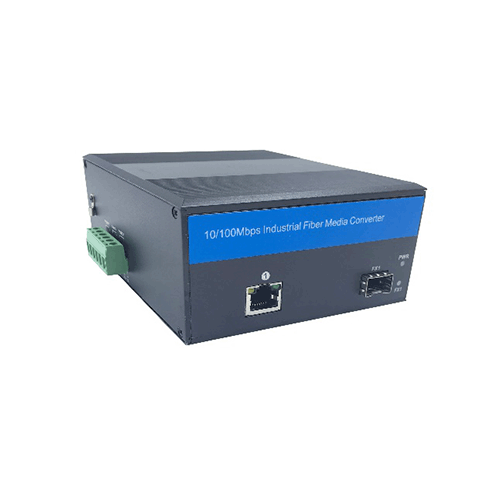

● 1 ~ 8 x 10/100 or 10/100/1000Mbps Auto-sensing RJ45 ports ● 1 ~ 4 x SC fiber ports or SFP ports ● POE optional, Max power to15.4W under af standard, 30W under at standard to each PoE port ● 4 KV Ethernet surge protection, adapt to a harsh outdoor environment ● Support Auto MDI/MDIX ● Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard ● IEEE 802.3 100Base-T or IEEE 802.3u 1000Base-TX compliant ● A store-and-forward switching mechanism ● Operating environment temperature:-40 ° ~ 85 ℃ ● Management function optional | |
● 14 slots for standalone media converter ● Auto-identify MDI/MDIX ● Full/half duplex auto negotiation ● Low power loss and good heat dissipation ● Stable performance, large capacity of power supply, ease for management and maintenance ● 2U high: 19-inch standard design | |
● 19’ 2U rack, easy for focus management ● 16 slots for media converter card ● Dual /single fiber with bi-direction optional ● Auto-identify MDI/MDIX ● Full/half duplex auto negotiation ● Low power loss and good heat dissipation ● Stable performance, large capacity of power supply, easy for management and maintenance ● Management function optional |
