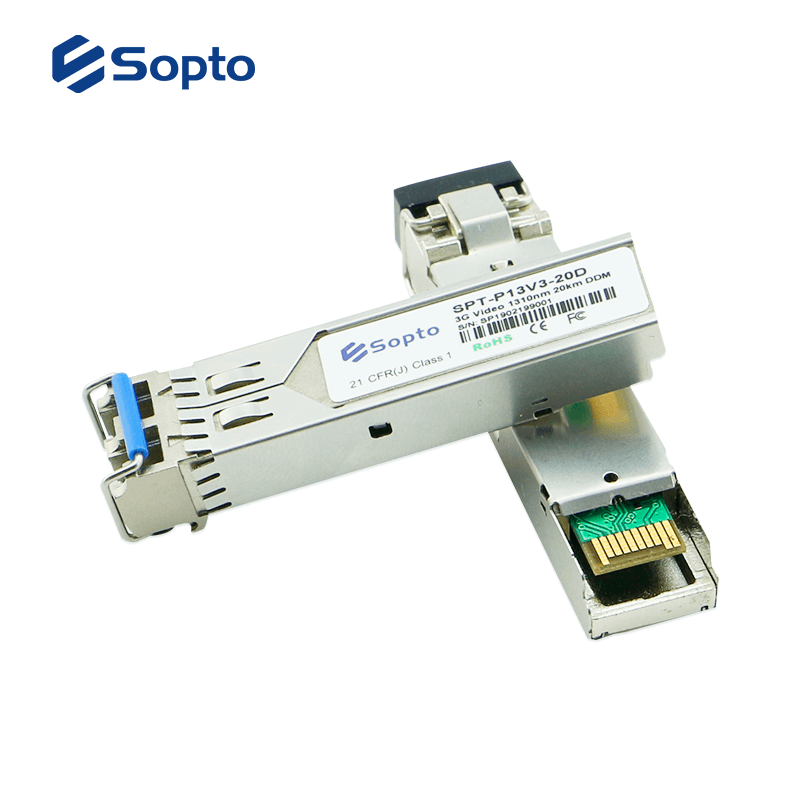

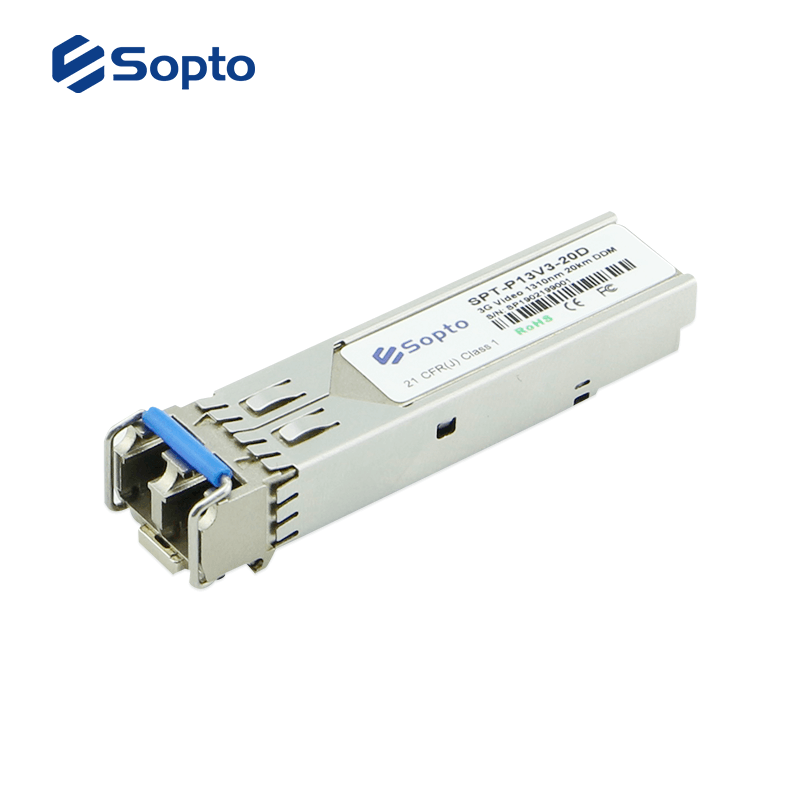

    Video series transceivers are high performance, cost effective modules for simplex or duplex video transmission application over single mode fiber. The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.
  • Contact Us
  • Classification

    Features

    Video SFP

    ● Hot-pluggable SFP form factor

    ● Compliant with SMPTE ST-297-2006   standards

    ● Metal enclosure for Lower EMI

    ● Supports video pathological   patterns for SD-SDI, HD-SDI and 3G-SDI

    ● Single channel full-duplex   transceiver module

    ● Supports 3Gb/s data rate

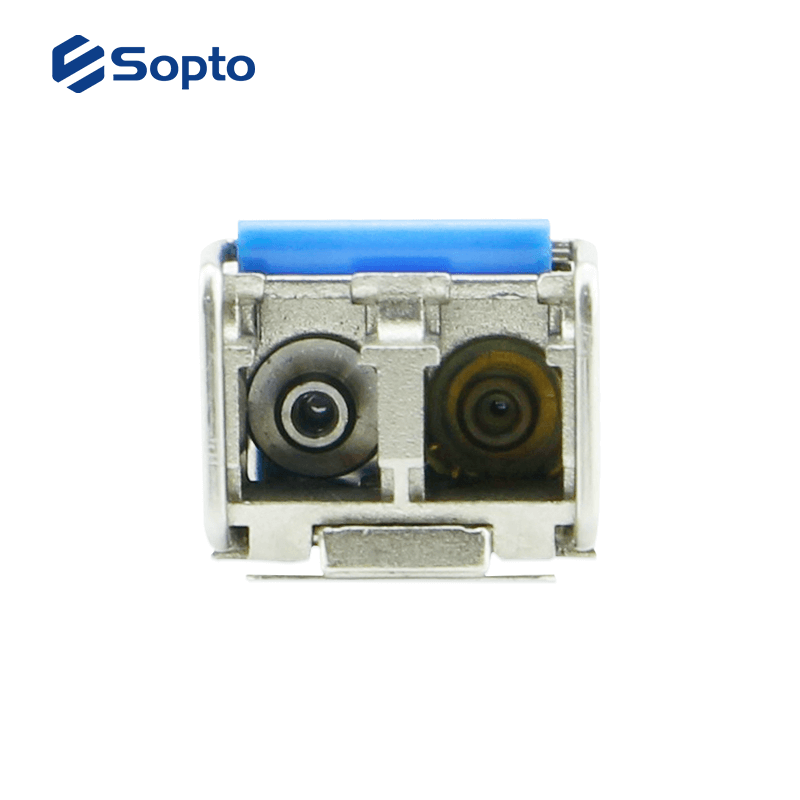

    ● Dual LC receptacles

    ● Built-in digital diagnostic   functions

    ● Single +3.3V power supply

    ● RoHS-6 compliant (lead free)
