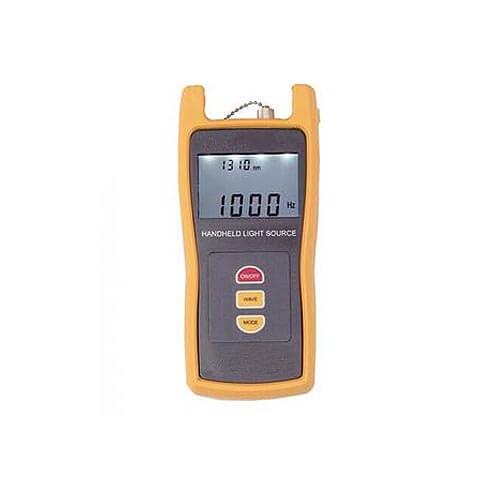

  • Optical Light Source

    Optical light source is divided into intelligent and basic type, which can provide high-stability optical signals with multiple wavelengths. It can be used together with our optical power meter series products to easily and accurately measure fiber loss, and is an effective length-building optical fiber transmission network. Ideal for local and optical networks. Accurately identify fiber by providing a modulated optical signal for use with our fiber identifiers
  • Contact Us
  • ● Providing 1~4 wavelengths output and wavelengths can be optional

    ● CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz

    ● modulation output at other wavelengths.

    ● High stability of the output power

    ● Stable output wavelength

    ● Compact size and decent appearance

    ● Large LCD, easy operation

    ● Telecommunication networks

    ● CATV networks

    ● Cabling systems engineering

    ● Research and education


    Part Number

    Product Description

    SPTK-3109A1

    Optical light source 1310/1550nm dual wavelength, Alkaline battery power supply for FC connector

    SPTK-3109A2

    Optical light source 1310/1550nm dual wavelength, Alkaline battery power supply for LC/SC/FC connector

    SPTK-3109B1

    Optical light source 850/1300nm dual wavelength, Alkaline battery power supply for FC connector

    SPTK-3109C1

    Optical light source 850/1300/1310/1550nm dual wavelength, Alkaline battery power supply for FC connector
