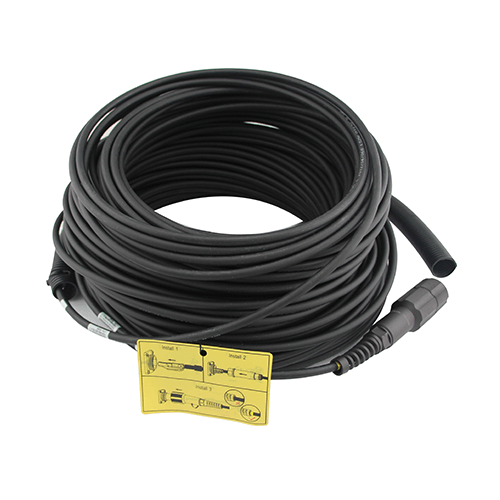

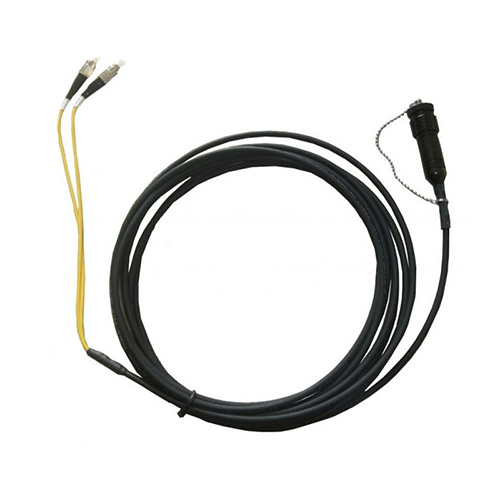

    The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition. SOPTO supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.
  • Contact Us

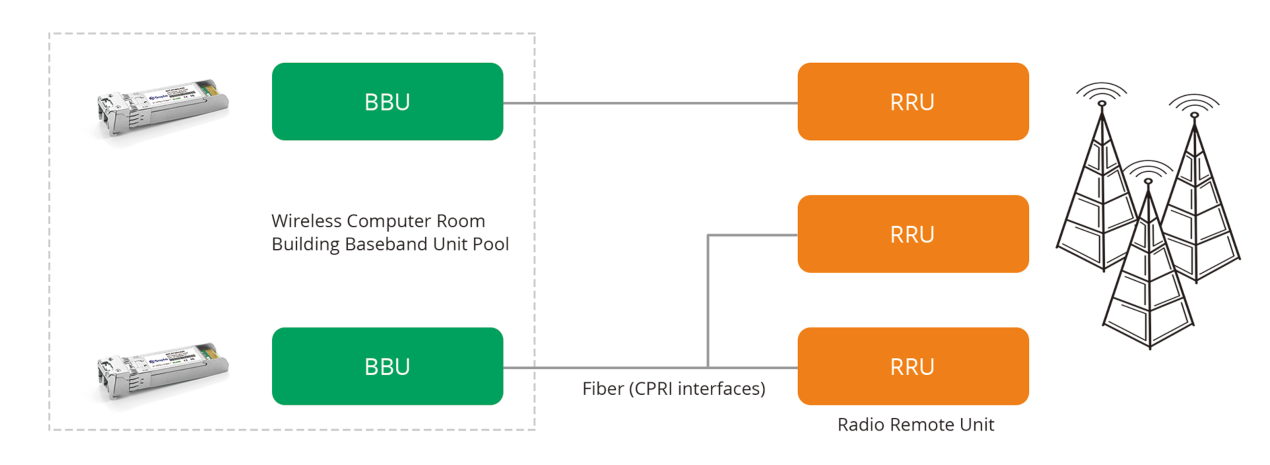

  • ● The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;

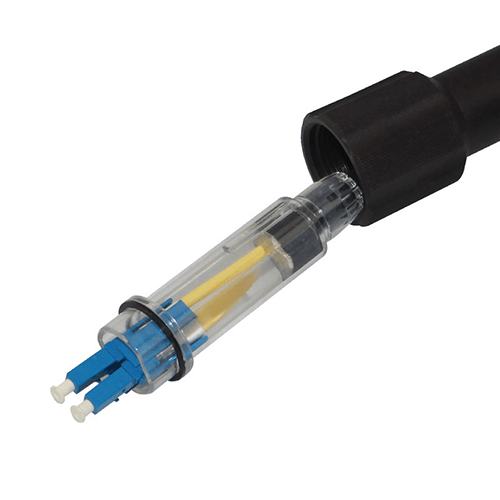

    ● Standard Duplex LC connector, well connected with standard LC adaptor

    ● Available Single mode and Multimode

    ● IP67 protection, salt-mist proof, humidity proof, dust proof

    ● Low insertion/return loss, steady optical transmitting.

    ● Light weight, waterproof, dustproof, moisture proof, Metal hard housing.

    ● 500cycles Mechanical life


    G.652D For example


    No.

    Items

    Unit

    Specification

    G.652D

    1

    Mode Field Diameter

    1310nm

    μm

    9.2±0.4

    1550nm

    μm

    10.4±0.5

    2

    Cladding Diameter

    μm

    124.8±0.7

    3

    Cladding Non-Circularity

    %

    ≤0.7

    4

    Core-Cladding Concentricity   Error

    μm

    ≤0.5

    5

    Coating Diameter

    μm

    245±5

    6

    Coating Non-Circularity

    %

    ≤6.0

    7

    Cladding-Coating   Concentricity Error

    μm

    ≤12.0

    8

    Cable Cutoff Wavelength

    nm

    λc≤1260

    9

    Attenuation(max.)

    1310nm

    dB/km

    ≤0.4

    1550nm

    dB/km

    ≤0.3

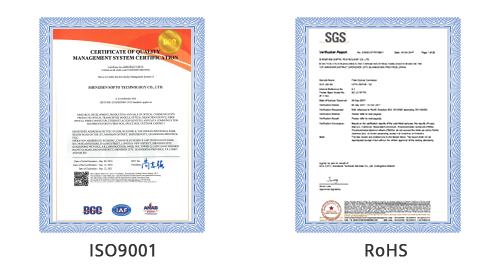

    Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs



    Download

    ● Widely used in FTTA & FTTH

    ● Used for 3G 4G base station

    ● BBU, RRU, RRH, LTE


    Related Articles

     What is CPRI Cable

     Difference between PC, UPC and APC

     Differences of OM1, OM2, OM3 and OM4 cables

     What is Armoured Patch Cord


    Part Number :           SPP- CPRI- LC- LC - U U - 2 D - 70100   H P-C(-09-0.4)

                                                        1   2        3    4  5 6  7     8  9  10     11

    1 - Connector A

    LC

    2 - Connector B

    LC SC FC etc

    3 – Endface A

    U:UPC polish;  P:PC polish;  A:APC polish

    4 – Endface B

    U:UPC polish;  P:PC polish;  A:APC polish

    5 - Fiber Count

    2: Duplex; 1: Simplex

    6 - Fiber Mode

    M1: OM1; M2: OM2; M3: OM3; M4:   OM4;  D: G.652D; A1: G657.A1; A2:   G657.A2

    7 - Diameter

    70: 7.0mm; 48: 4.8mm

    8 - Length

    100: Cable total length 100M ;  etc

    9 - Cable Jacket Materials

    H:LSZH

    10 - Type

    1.   Null: Without armour or waterproof cover, with   2.0mm&0.5M branch

    2.   B: Armour on both sides, with 2.0mm&0.5M branch

    3.   P-X: with a waterproof cover on one side, with   2.0mm&0.5M branch at the other side

    PB-X: with a   waterproof cover on one side, with 2.0mm&0.5M armored branch at the other   side

    PP-X: with   Waterproof cover on both sides

    At present, there are three kinds of waterproof cover.   X=A,B or C

    A refers to Full AXS cover, suitable for 4.8mm cable diameter;
    B refers to ODVA cover, suitable for 5.0-7.0mm cable diameter;
    C refers to NSN cover, suitable for 5.0-7.0mm cable diameter

    11 - Additional instructions onbranches

    1.Null:   Default 2.0mm&0.5M branch

    2. for example “-09-0.4” refers to 0.4M branch 0.9mm   branch
    The default branch diameter is 2.0mm, -09 : 0.9mm branch diameter , -30:   3.0mm branch diameter.

    The default   branch length is 0.5M, -Y : the other branch lengths (unit: m, added at the   end of the model.)

    Y≥0.1Branch without armourY≥0.13Armored Branch
