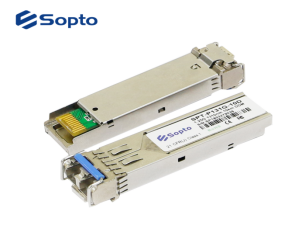

SPT-P131G-10D is one of the hot sale fiber optical transceivers of Sopto,the module supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.
Next let's get to learn this fiber optical transceivers together.
The SPT-P131G-10D module consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.And module are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Features
● Dual data-rate of 1.25Gbps/1.063Gbps operation
● 1310nm FP laser and PIN photo detector for 10km transmission
● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
● Digital Diagnostic Monitoring: Internal Calibration or External Calibration
● Compatible with SONET OC-24-LR-1
● Compatible with ROHS
● +3.3V single power supply
● Operating case temperature: Standard: 0 to +70°C Extended: -20 to +85°C
Applications
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Module Block Diagram
Digital Diagnostic Memory Map
The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire serial interface (SCL, SDA).
The diagnostic information with internal calibration or external calibration all are implemented, including received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.

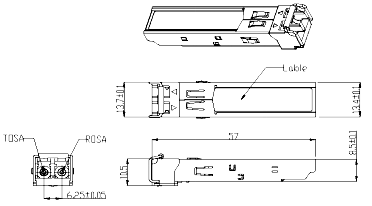

Module Size
More Modules
Part Number | Product Description |
SPT-P131G-02D | 1310nm, 1.25Gbps, 2km, 0ºC ~ +70ºC, DDM |
SPT-P131G-10D | 1310nm, 1.25Gbps, 10km, 0ºC ~ +70ºC, DDM |
SPT-P131G-20D | 1310nm, 1.25Gbps, 20km, 0ºC ~ +70ºC, DDM |
SPT-P131G-40D | 1310nm, 1.25Gbps, 40km, 0ºC ~ +70ºC, DDM |
We also provides other styles of 1.25G/10G/25G/40G/100G fiber optical transceivers,if you need more details, please contact us. [email protected]
Tags : sfp, 1.25Gbs SFP, Optical Transceiver ,SPT-P131G-10D
