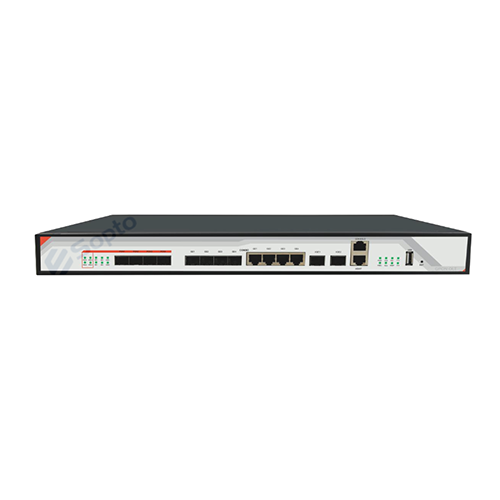

Standalone 4PON GPON OLT
GPON OLT SPO-GS4424-X completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2 10-gigabit uplink ports and 4 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 512 GPON terminals accessing in for the most.

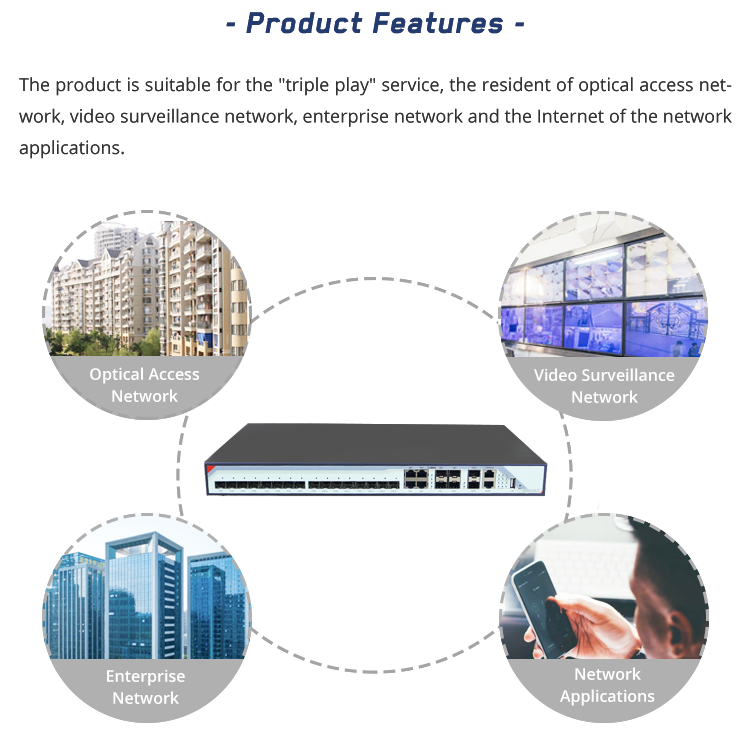

This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price / performance ratio.
Features
● Meet ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry
● Support OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol
● 1U height 4PON OLT product in compact design of Pizza-Box
● Complete PON protection switching function
● Layer 2 Switching Function
OLT equips with very powerful layer 2 Full Wire Speed Switching and completely supports layer 2 protocol. OLT supports varieties of layer 2 functions like TRUNK, VLAN, LACP, rate limit, port isolate, queue technology, flow control technology, ACL and so on, which provides technical guarantee for the development of multi-service integrated.
● QOS Guarantee
GPON Products maintains fully-improved DBA with excellent Qos service capabilities. DBA meets different Qos requirements from different service flow in latency, jitter, packet loss rate.
● Easy-to-Use Management System

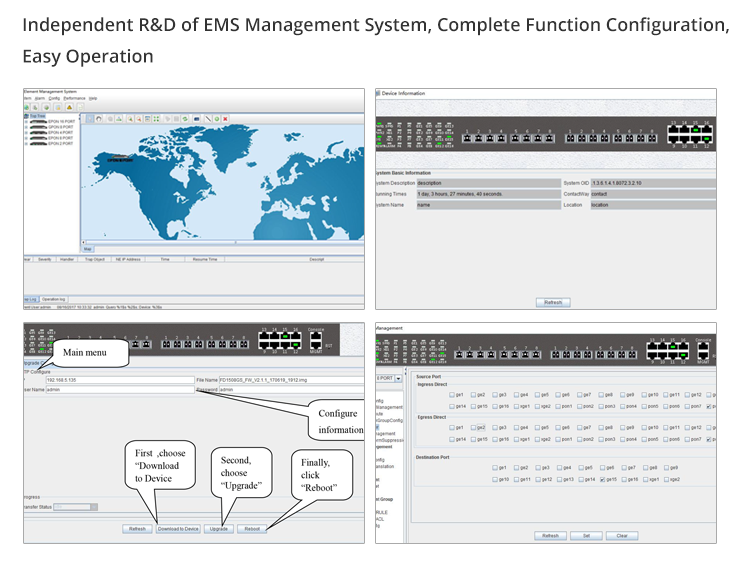

Support management method of CLI, WEB, SNMP, TELNET, SSH and meet OMCI standard, through OMCI channel protocol service management can be realized, including ONT function parameter set, T-CONT business lines and amount, Qos parameters, configuration information request, performance statistics, auto-reporting of running events in system, configuration for ONT from OLT, fault diagnosis and management of performance and safety.
Specification
Item | SPO-GS4424-X | |||
Management Rack | Type | 1U 19-inch standard box | ||
Uplink Port | COMBO port | 4 10/100/1000M auto-negotiation Ethernet ports | ||
4 SFP interfaces | ||||
10-Gigabit | 2 SFP+ interfaces | |||
PON Port | Quantity | 4 | ||
Physical interface | SFP slot | |||
Interface type | ITU-TG.984.2 Class B+/Class C+ | |||
Max splitting ratio | 0.130555556 | |||
Management Port | 1 100/1000BASE-Tx out-band Ethernet port | |||
1 CONSOLE local management port | ||||
USB Port | 1 USB interface (It’s used to backup configuration, upgrade program, and record log information) | |||
PON Port attribute | Transmission distance | 20KM | ||
Port rate | Downstream: 2.5Gbps Upstream: 1.25Gbps | |||
Wavelength | Forwarding: 1490nm Receiving: 1310nm | |||
Interface type | SC/UPC | |||
Fiber type | 9/125μm SMF (Single Mode Fiber) | |||
Light transmission power | Class B+ +1.5~+5dBm | Class C+ +3~+7dBm | ||
Receiving sensitivity | Class B+ -28dBm | Class C+ -30dBm | ||
Saturation power | Class B+ -8dBm | Class C+ -12dBm | ||
Network management method | Support CLI、SNMP、TELNET、SSH、WEB | |||
Business capabilities | Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration | |||
Backplane Bandwidth | 63G | |||
Size | 440mm(L)*240mm(W)*44mm(H) | |||
Weight | 4kg | |||

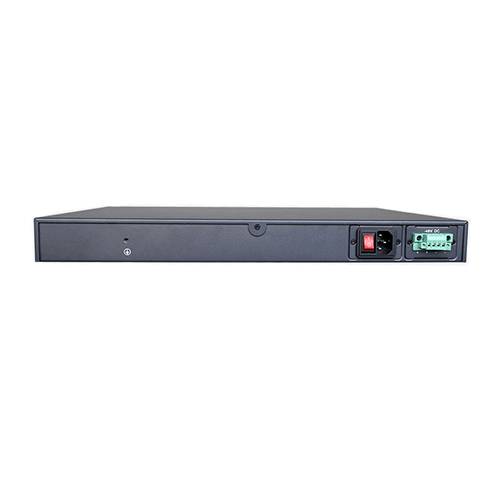

Power supply | 220VAC | AC: 100V~240V,47/63Hz | ||
-48DC | DC:-40V~-72V | |||
BBU | DC: 11V~14V Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply. | |||
Maximum power | 60W | |||
Working environment | Working temperature | -15~50℃ | ||
Storage temperature | -40~85℃ | |||
Relative humidity | 5~90% (Non-condensing) |
Network Application
Ordering information
Product | Model | QTY | Unit | Configuration |
GPON OLT | SPO-GS4424-X | 1 | Set | 1 U standalone GPON OLT with 4 PON ports, 1 USB interface,4 uplink COMBO ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual power redundancy configuration. :BBU key. N-without BBU; B-with BBU :Power key. SA-single AC; DA-double AC; SD-single DC; DD-double DC; DX-single AC and single DC |
OLT SFP | SPT-GT4321-SB2BD | 1~4 | PC | GPON OLT SFP ITU-T G.984.2 Class B+ |
SPT-GT4321-SC2AD | GPON OLT SFP ITU-T G.984.2 Class C+ | |||
SPT-GT4321-SC2CD | GPON OLT SFP ITU-T G.984.2 Class C++ | |||
Ethernet SFP | SPT-P131G-20D | 1~4 | PC | Optical Transceiver 1.25G SFP 1310nm SM 20KM DDM |
10Gigabit Ethernet SFP | SPT-P85TG-SR | 1~2 | PC | Optical Transceiver 10G SFP+ 850nm MM 300M DDM |
SPT-P13TG-LR | Optical Transceiver 10G SFP+ 1310nm SM 10KM DDM |
Note: If you need more customized services, please contact us.
Product | Model | QTY | Unit | Configuration |
GPON OLT | SPO-GS4424-X | 1 | Set | 1 U standalone GPON OLT with 4 PON ports, 1 USB interface,4 uplink COMBO ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual power redundancy configuration. :BBU key. N-without BBU; B-with BBU :Power key. SA-single AC; DA-double AC; SD-single DC; DD-double DC; DX-single AC and single DC |
OLT SFP | SPT-GT4321-SB2BD | 1~4 | PC | GPON OLT SFP ITU-T G.984.2 Class B+ |
SPT-GT4321-SC2AD | GPON OLT SFP ITU-T G.984.2 Class C+ | |||
SPT-GT4321-SC2CD | GPON OLT SFP ITU-T G.984.2 Class C++ | |||
Ethernet SFP | SPT-P131G-20D | 1~4 | PC | Optical Transceiver 1.25G SFP 1310nm SM 20KM DDM |
10Gigabit Ethernet SFP | SPT-P85TG-SR | 1~2 | PC | Optical Transceiver 10G SFP+ 850nm MM 300M DDM |
SPT-P13TG-LR | Optical Transceiver 10G SFP+ 1310nm SM 10KM DDM |
Note: If you need more customized services, please contact us.
