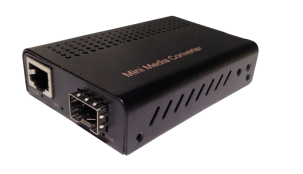

Mini Media Converter

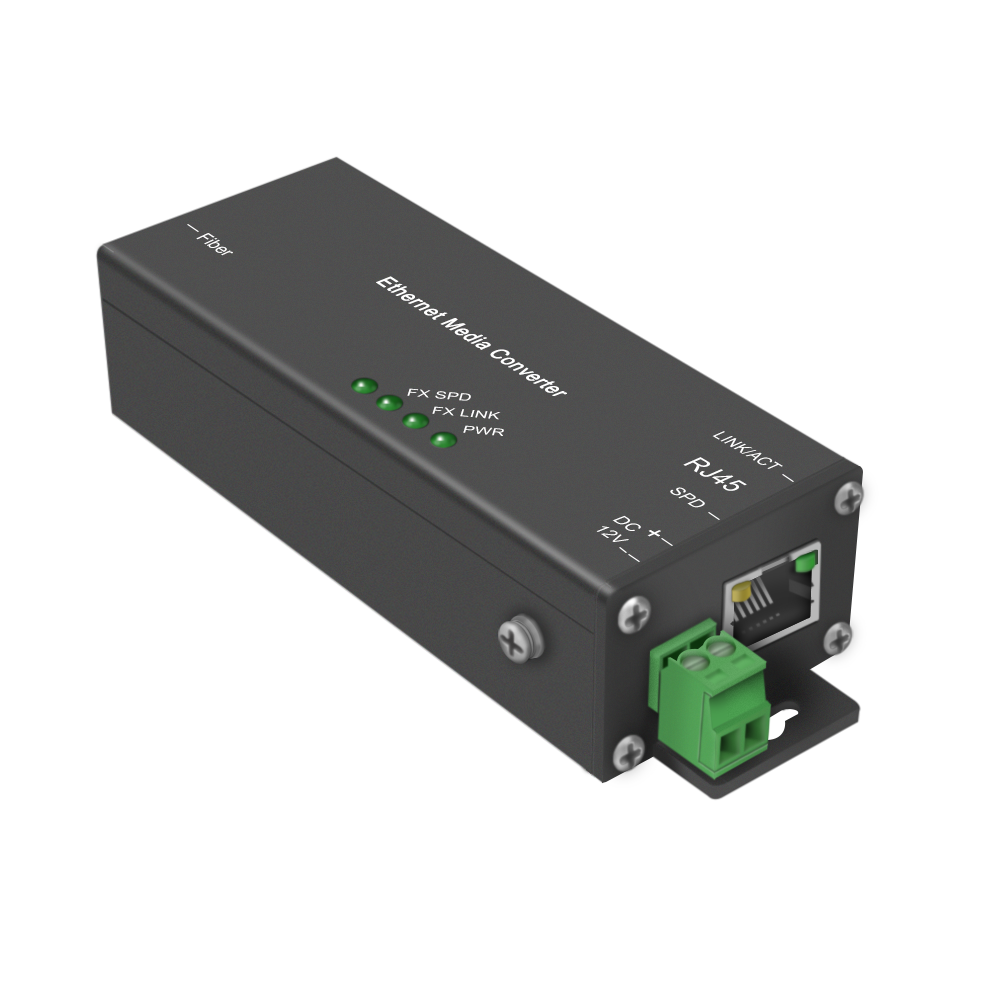

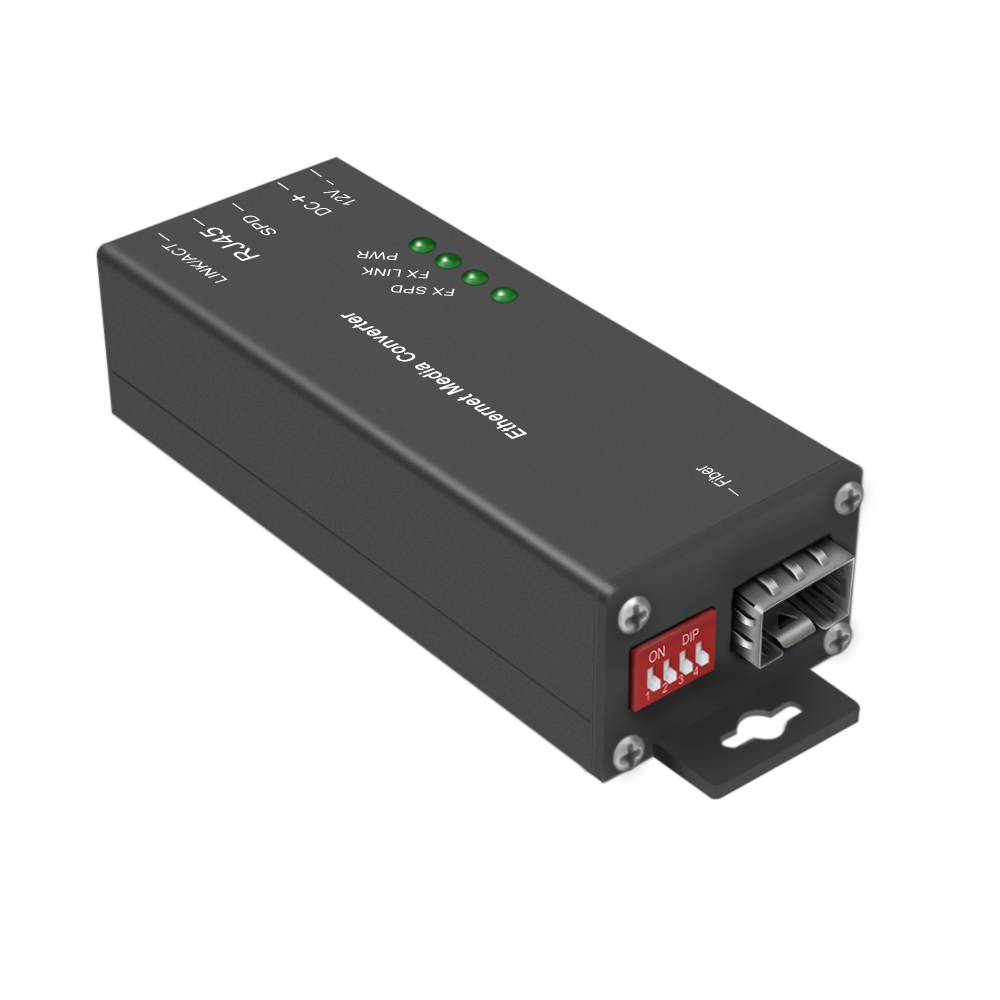

Mini Industrial Ethernet Media Converter
The Mini Industrial Gigabit Ethernet media converter that provides cost effective, entry-level media conversion between 1x10/100/1000Base-TX ports and 1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited.It is able to operate under temperatures ranging from -40°C to 75 °C and is with IP40 rugged case to make sure the continuous operation in harsh environments such as transportation, factories, outdoors and places where extremely low or high temperatures can be experienced.
Features
● 10/100/1000Mbps Full/Half Duplex, Auto- Negotiation and Auto-MDI/MDIX
● Choice of LC SFP Connectors for MM & SM
● Robust IP40 Aluminum Metal Enclosure for Harsh Environments
● Operate stably under the Temperature Range of -40 – 75℃
● LED Indicates Diagnostic & DIP-switch Ethernet OAM
● Support IEEE 802.3x Flow Control
● Both Desktop and Wall Mounting installation
The industrial converter is equipped with rugged IP40 metal enclosure to ensure industrial operation in harsh environments where extreme low or high temperatures can be experienced. It is specially designed for outdoor and industrial applications such as city surveillance systems, smart manufacturing, etc. It is ideal for miniaturization and rapid deployment, provides users a cost- effective and highly reliable option.
Ordering informations
Part Number | Product Description | |
SPM-DT4X-PXT | Mini Industrial Media Converter, 10/100Base-TX to 100Base-FX SFP, 12VDC | |
SPM-DT2X-PXT | Mini Industrial Media Converter, 10/100/1000Base-TX to 1000Base-FX SFP, 12VDC | |
SPM-D12T2X-PXT | Mini Industrial Media Converter, 2X10/100/1000Base-TX to 1000Base-FX SFP, 12VDC |

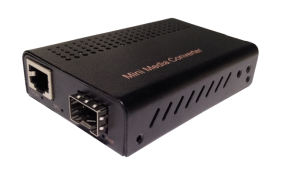

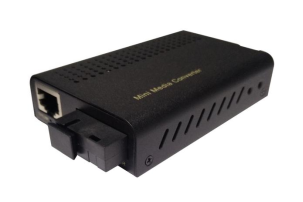

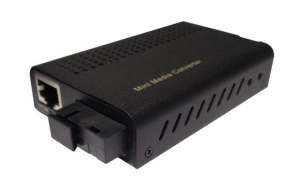

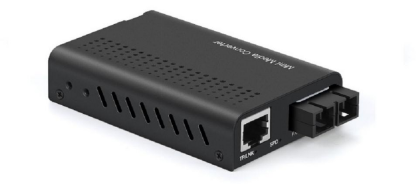

Mini 1-Port 10/100Base-TX to 100Base-FX Fiber Media Converter
10/100M Fiber Media Converters are a Fast Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. .10/100Base Fiber Media Converter,SFP Fiber Media Converter, Options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media Coverter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.
![]() | ![]() | ![]() |
10/100Base-TX to 100Base-FX Single Fiber | 10/100Base-TX to 100Base-FX Dual Fiber | 10/100Base-TX to 100Base-FX SFP Ports |
Features
● Unit and Port LEDs allow for quick status information
● Auto-Negotiation
● Fixed Full-Duplex on fiber
● Auto-MDI/MDIX
● Automatic Link Restoration
● Connect to legacy network equipment
● Eliminate Collision Domains
● 10/100Base-TX UTP to 100Base-FX fiber media convertion
● Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards
● Transmission distance ,single mode: 20 km
● SC optional
● DIP switch to set different configurations
● LFP (Link Fault Pass-through) support
● Compact package size
Ordering informations
Part Number | Product Description | |
SPM-ERT4X-NXX | Mini 1-Port 10/100Base-TX to 100Base-FX Media Converter(single fiber) | |
SPM-ERT4XX-NXX | Mini 1-Port 10/100Base-TX to 100Base-FX Media Converter (X Tx/ X Rx ) Dou ble fiber | |
SPM-ERT4X-PXX | Mini 1-Port 10/100Base-TX to 100Base-FX Media Converter |

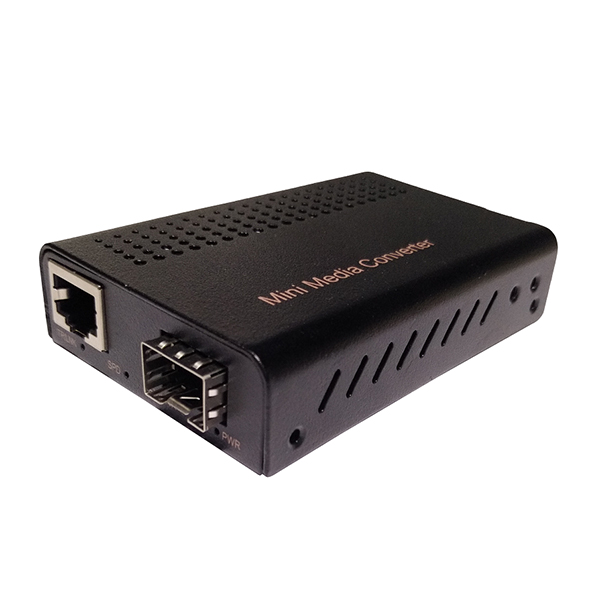

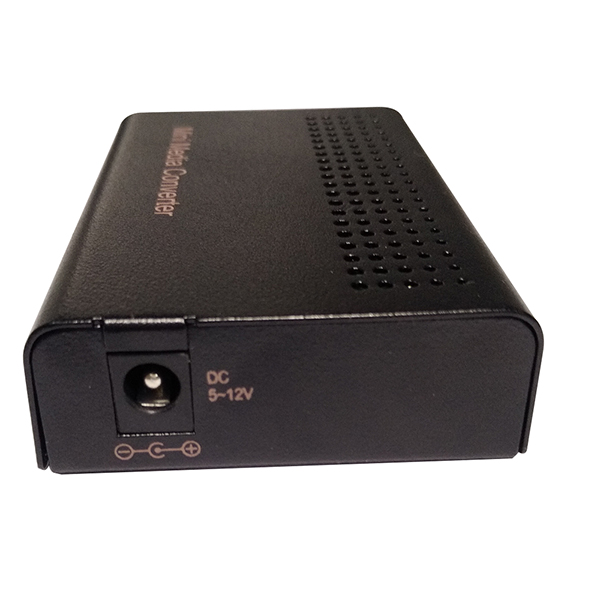

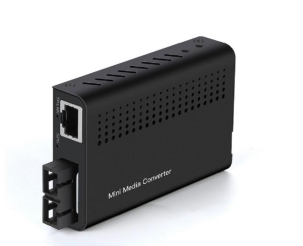

Mini 10/100/1000Base-TX to 1000Base-FX Fast Ethernet Media Converter
Mini 10/100/1000M media converters are a Fast Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 10/100/1000Base-TX ports and 1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. .10/100/1000Base Fiber Media Converter,SFP Fiber Media Converter, Options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media Coverter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.
![]() | ![]() | ![]() |
10/100/1000Base-TX to 1000Base-FX Single Fiber | 10/100/1000Base-TX to 1000Base-FX Dual Fiber | 10/100/1000Base-TX to 1000Base-FX SFP Ports |
Features
● Unit and Port LEDs allow for quick status information
● Auto-Negotiation
● Fixed Full-Duplex on fiber
● Auto-MDI/MDIX
● Automatic Link Restoration
● Connect to legacy network equipment
● Eliminate Collision Domains
● 10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion
● Support IEEE802.3 10Base-T, IEEE802.3u 1000Base-TX/FX standards
● SC/ST/FC optional
● DIP switch to set different configurations
● LFP (Link Fault Pass-through) support
● Compact package sizel
Ordering informations
Part Number | Product Description | |
SPM-ERT2X-NXX | Mini 1-Port 10/100/1000Base-TX to 10/100/1000Base-FX Media Converter (single fiber ) | |
SPM-ERT2XX-NXX | Mini 1-Port 10/1000Base-TX to 1000Base-FX Media Converter | |
SPM-ERT2X-PXX | Mini 1-Port 10/100/1000Base-TX to 10/100/1000Base-FX Media Converter |

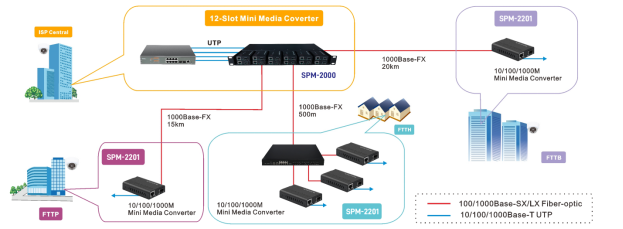

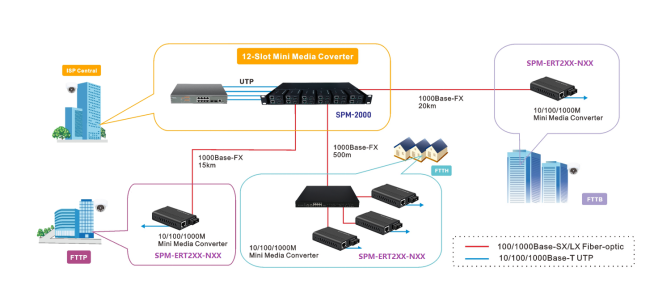

Applications

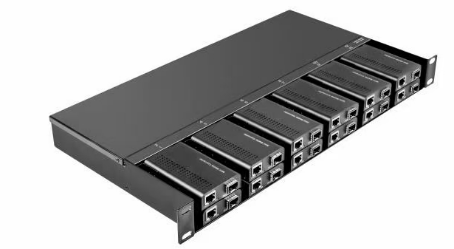

12-Slot Media Converter Rack
Flexible design for growing networks simplify your installation of Sopto’ MINI media converters with the Media Converter Rack. The housing of each media converter can be easily removed, and the media converter PC board can be slid into the chassis.This 19” rack-mountable unit supports up to twelve media converters while the unique design allows for multiple connections, consolidated into a single device, making network connections easier and more efficient. provides for space saving and easy cabling. The chassis works with dual redundant power supply AC , DC optional.
Features
● Space Saving Design: This device is powered by a single internal universal power supply; eliminating the need for the multiple power connections often associated with multiple converter installations. The unit saves space in the wiring closet by providing a means for rack space while reducing the number of wall outlet power connections required.
● Convenience: The media converters are hot-swappable. They can also be removed from the rack, powered externally, and used as stand-alone units in new applications as your network needs change in the future.
● Cost Effective: Easily rack mount the single-wide, 12 volt powered, Sopto’ media converters that you already own, or buy stand-alone units today and rack mount them in the future.
