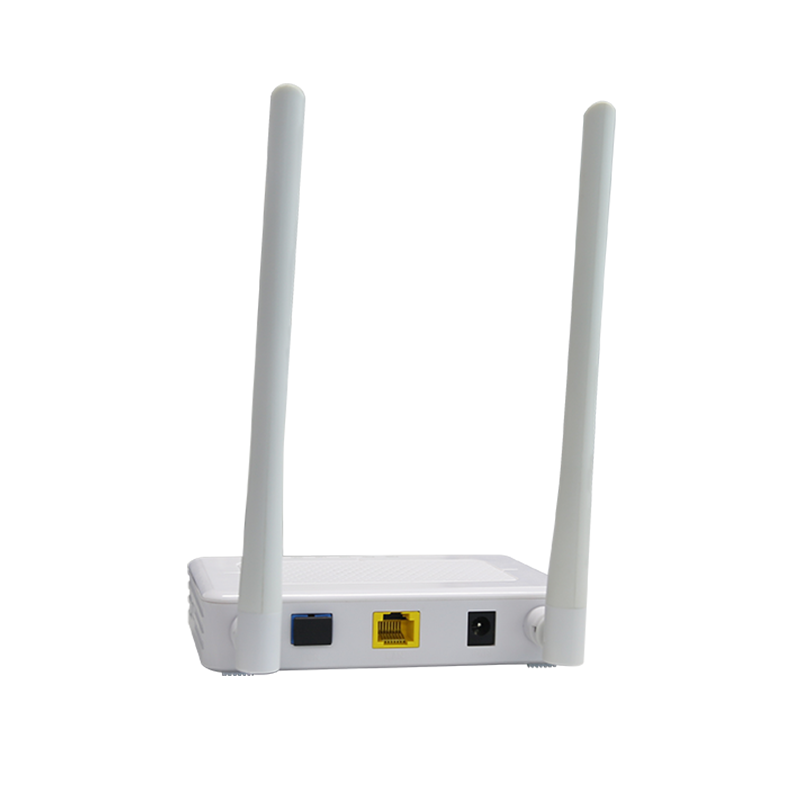

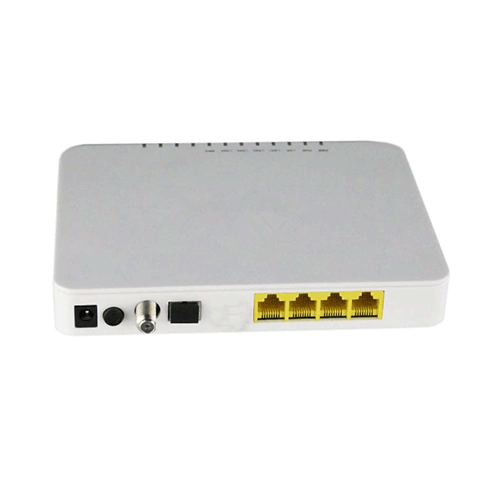

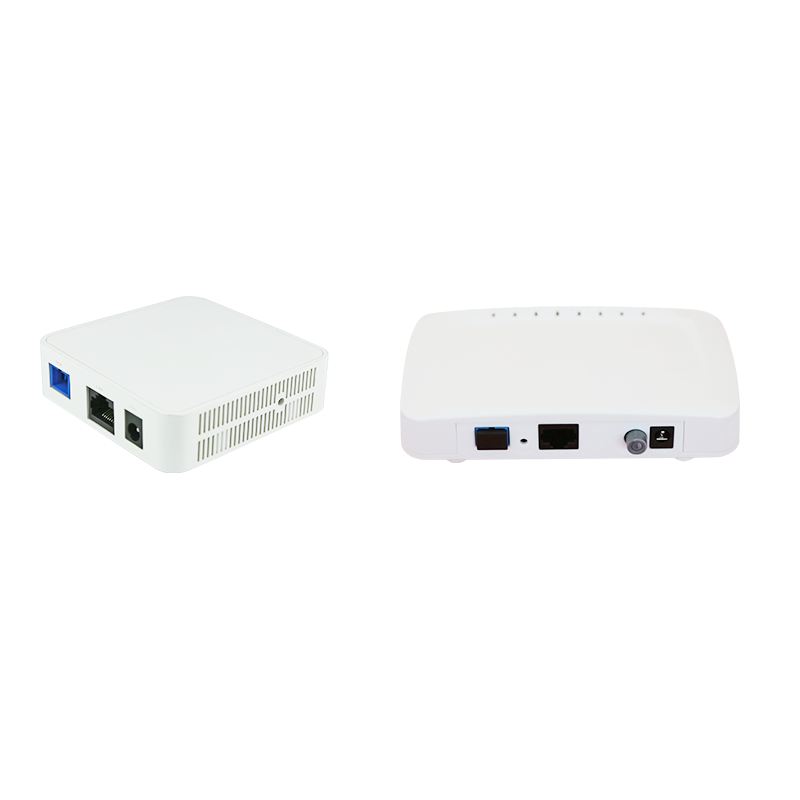

DATA XPON ONU
SOPTO Data XPON ONU series Includes Wifi or not is one of the XPON optical network unit design to meet the requirement of the broadband access network. It applies in FTTH/FTTO to provide the data, video service based on the XPON network.
Features of Data XPON ONU
● GE or FE LAN port
● Wi-Fi optional, in line with 802.11 b/g/n WIFI technical standards
● Comply with IEEE802.3ah and ITU-T G.984 protocol standards
● Support ONU automatic discovery/link detection/remote upgrade, remote management configuration
● Support multiple registration methods
● Support port VLAN configuration
● Support mac address learning
● Support port speed limit, isolation, flow control
● Support broadcast storm suppression function
● Support multicast transparent transmission/snooping/proxy mode
● Support dynamic bandwidth allocation (DBA)
● Support data encryption and decryption function
● Support three-layer routing function
● Support our company's SNMP-based network management platform EMS unified network management, easy to install and maintain
● Provide rich fault alarm function, easy to fault diagnosis
Applications of Data XPON ONU
FTTx Soluitons
Ordering informations
Brief Information | Product Model | Descriptions |
1GE | SPU-GE120-HZ | G/EPON ONU, 1 UTP Port 10/100/1000M |
1GE+WIFI | SPU-GE120W-HR | G/EPON ONU 1 *10/100/1000M UTP Port with 2.4GHz WIFI |
1GE+1FE+WIFI | SPU-GE231W-H | G/EPON ONU 1*10/100/1000M and 1*10/100M Ethernet interface ,with 2.4GHz WIFI |
1GE+3FE+WIFI | SPU-GE440W-H | G/EPON ONU 1*10/100/1000M and 3*10/100M Ethernet interface ,with 2.4GHz WIFI |
4GE | SPU-GE420-H | G/EPON ONU , 4 *10/100/1000M UTP Ports |
4GE+WIFI | SPU-GE420W-H | G/EPON ONU , 4 *10/100/1000M UTP Ports,with 2.4GHz WIFI |
4GE+ WIFI(2.4&5Ghz)+2POTS | SPU-GE422WD-HZ1 | G/EPON ONU 4*10/100/1000M Ethernet interface, 2 POTS interface,support 2.4GHz and 5GHz WIFI 802.11ac , 1 USB interface |
Applications in FTTH
