  • Fastening Clamp Fastening Clamp Fastening Clamp Fastening Clamp
  • Fastening Clamp

    Fastening Clamps are designed to connect Tension Clamps, Suspension Clamps and towers, it is according to the tower type of hanged points and the size of main material.
  • Contact Us

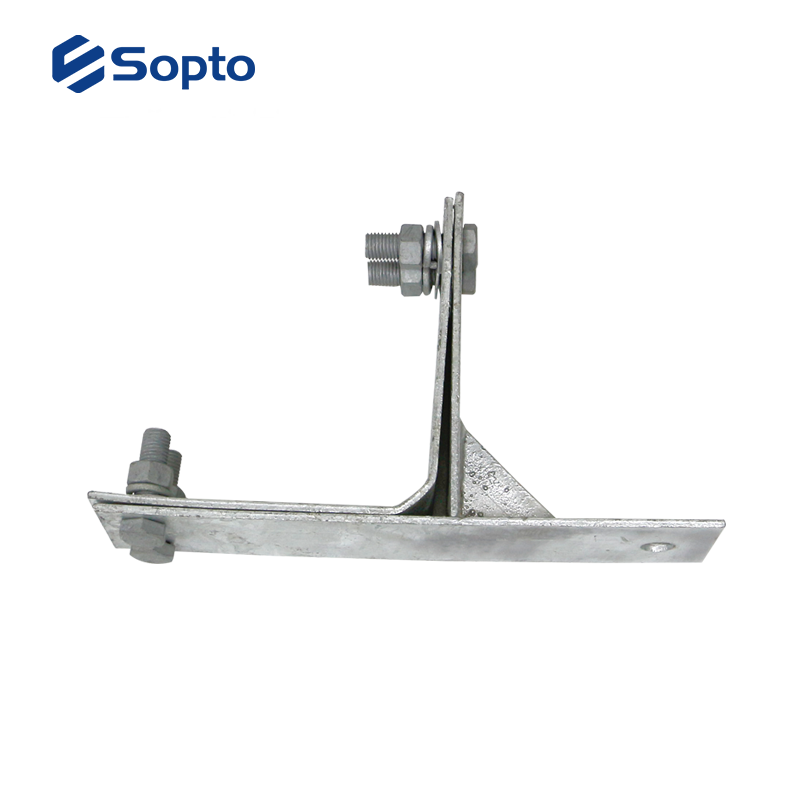

  • For Suspension Tower

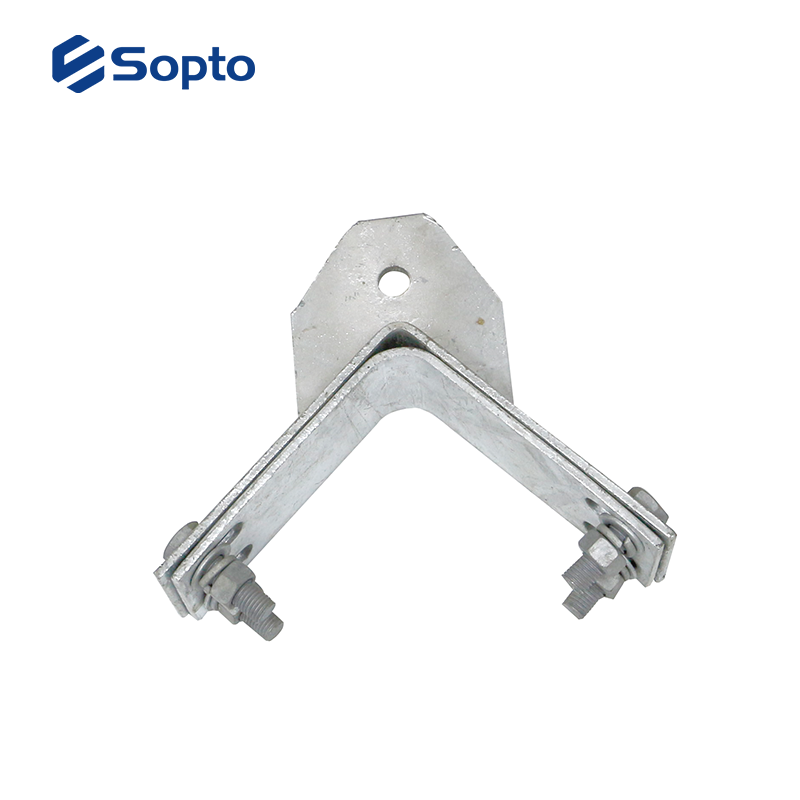

    For Corner Tower

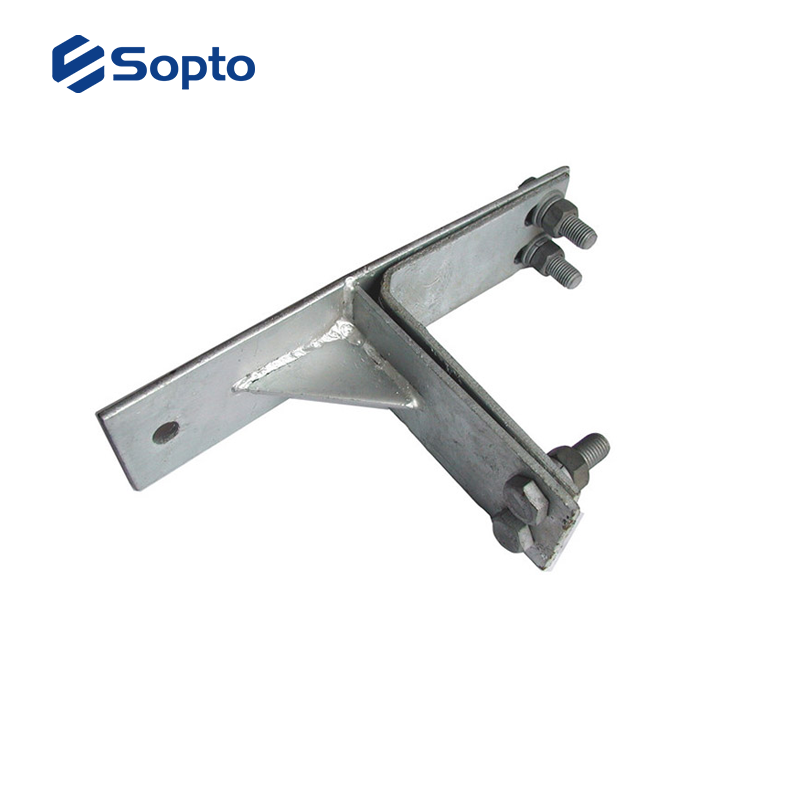

    For Pole





    Fastening Clamp for Tower

    Fastening Clamps are designed to connect Tension Clamps, Suspension Clamps and towers, it is according to the tower type of hanged points and the size of main material.

    (1) Data Sheet of Fastening Clamp for Less Than 400m Span Length:

    Tower Type

    Specification Model

    Suitable Range

    Weight (kg)

    Material

    Suspension Tower

    FCZ 080 040

    For size of cable hanged position≤80mm

    2.7

    A3 Steel

    FCZ 100 040

    For size of cable hanged position 81 ~ 100mm

    3.1

    A3 Steel

    FCZ 125 040

    For size of cable hanged position101~125mm

    3.5

    A3 Steel

    FCZ 145 040

    For size of cable hanged position 126~145mm

    3.9

    A3 Steel

    FCZ 165 040

    For size of cable hanged position146~165mm

    4.3

    A3 Steel

    FCZ 200 040

    For size of cable hanged position166~200mm

    4.7

    A3 Steel

    Corner Tower

    FCJ 100 040

    For size of cable hanged position≤100mm

    3.4

    A3 Steel

    FCJ 125 040

    For size of cable hanged position 101~125mm

    3.7

    A3 Steel

    FCJ 145 040

    For size of cable hanged position 126~145mm

    4.0

    A3 Steel

    FCJ 165 040

    For size of cable hanged position 146~165mm

    4.3

    A3 Steel

    FCJ 200 040

    For size of cable hanged position 166-200mm

    4.6

    A3 Steel


    (2) Data Sheet of Fastening Clamp for More Than 400m Span Length:

    Tower Type

    Specification Model

    Suitable Range

    Weight (kg)

    Material

    Suspension

    Tower

    FCZ 080 070

    For size of cable hanged position≤80mm

    3.0

    A3 Steel

    FCZ 100 070

    For size of cable hanged position 81~100mm

    3.4

    A3 Steel

    FCZ 125 070

    For size of cable hanged position 101~125mm

    3.8

    A3 Steel

    FCZ 145 070

    For size of cable hanged position 126~145mm

    4.2

    A3 Steel

    FCZ 165 070

    For size of cable hanged position 146~165mm

    4.6

    A3 Steel

    FCZ 200 070

    For size of cable hanged position 166~200mm

    5.0

    A3 Steel

    Corner Tower

    FCJ 100 070

    For size of cable hanged position≤100mm

    3.7

    A3 Steel

    FCJ 125 070

    For size of cable hanged position 101~125mm

    4.0

    A3 Steel

    FCJ 145 070

    For size of cable hanged position 126~145mm

    4.3

    A3 Steel

    FCJ 165 070

    For size of cable hanged position 146~165mm

    4.6

    A3 Steel

    FCJ 200 070

    For size of cable hanged position 166~200mm

    4.9

    A3 Steel


    Fastening Clamp for Pole

    Fastening Clamps for Poles are designed to connect Tension Clamps, Suspension Clamps and cement poles, it is according to the pole type of hanged points and the size of main material.

    (1) Data Sheet of Fastening Clamp for Pole for Less Than 400m Span Length:


    Specification Model

    Suitable Range

    Weight (kg)

    Material

    FCX 220 040

    For installation position of cement poleФ190-220

    2.7

    A3 Steel

    FCX 250 040

    For installation position of cement poleФ221-250

    3.1

    A3 Steel

    FCX 280 040

    For installation position of cement poleФ221-250

    3.5

    A3 Steel

    FCX 310 040

    For installation position of cement poleФ281-310

    3.9

    A3 Steel


    (2) Data Sheet of Fastening Clamp for Pole for More Than 400m Span Length:


    Specification Model

    Suitable Range

    Weight (kg)

    Material

    FCX 220 070

    For installation position of cement poleФ190-220

    3.0

    A3 Steel

    FCX 250 070

    For installation position of cement poleФ221-250

    3.4

    A3 Steel

    FCX 280 070

    For installation position of cement poleФ251-280

    3.8

    A3 Steel

    FCX 310 070

    For installation position of cement poleФ281-310

    4.2

    A3 Steel

    FCX 340 070

    For installation position of cement poleФ311-340

    4.6

    A3 Steel

    FCX 370 070

    For installation position of cement poleФ341-370

    5.0

    A3 Steel

    FCX 400 070

    For installation position of cement poleФ371-400

    5.4

    A3 Steel
