  • Fiber Optic Patch Cords

    fiber optic patch cords

    Features

    -----------------------

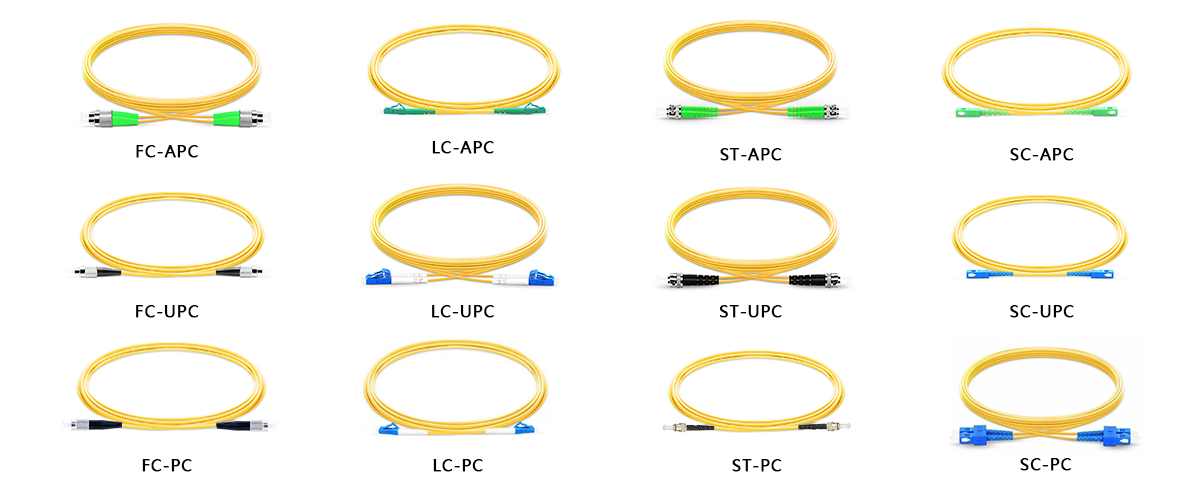

    ● End-Face Type: PC/UPC/APC

    ● Fiber Diameter: 0.9mm, 2.0mm or 3.0mm

    ● Available for simplex and duplex

    ● The outer jacket can be PVC, LSZH, Armored etc

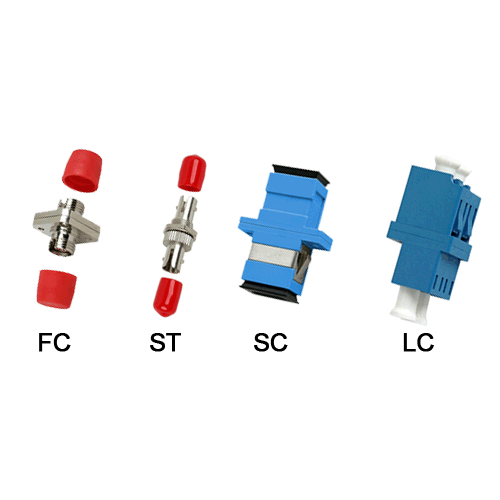

    ● Available for different connectors: SC, LC, FC, ST, MPO, MTP, MU, DIN, D4, E2K etc

    ● Fiber Type: Single mode fiber G652D, G657A1 and G657A2, Multimode fiber OM1, OM2, OM3 and OM4 are available

    ● Low insertion loss and high return loss, high dense connection, easy for operation

    ● Customer lengths and connectors are available upon request


    Applications

    -----------------------

    ● CATV

    ● Computer networks

    ● Telecommunication networks

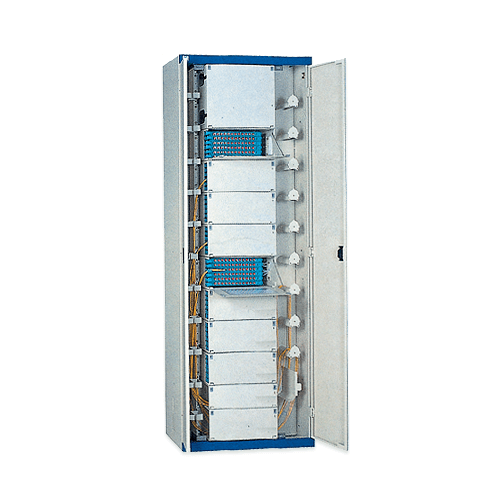

    ● ODF of optical transmission system

    ● High speed data transmission network

    ● High quality graphic transmission network

    ● Connection of optical transmission equipment


    Parameter

    -----------------------

    Parameter

     Unit

     FC, SC, LC,ST,MU,DIN,D4,MPO,   SC/APC,FC/APC,LC/APC,MU/APC Duplex

     SM(9/125 SMF-28 or equivalent OS1)

     MM(50/125,62.5/125(OM2&OM1),50/125,10G(MM) OM3

     PC

     UPC

     APC

     PC

     Insertion loss(typical)

     dB

     ≤0.3

     ≤0.2

     ≤0.25

     ≤0.2

     Return loss

     dB

     ≥45

     ≥50

     ≥60

     ≥30

     Operating wavelength

     Nm

     1310, 1510

     Exchangeability

     dB

     ≤0.2

     Vibration

     dB

     ≤0.2

     Operating temperature

     ℃

     -40~75

     Storage temperature

     ℃

     -45~85

     Cable Type


     Simplex or duplex (zip cord) φ3.0,   φ2.0, φ0.9,PVC or LSZH

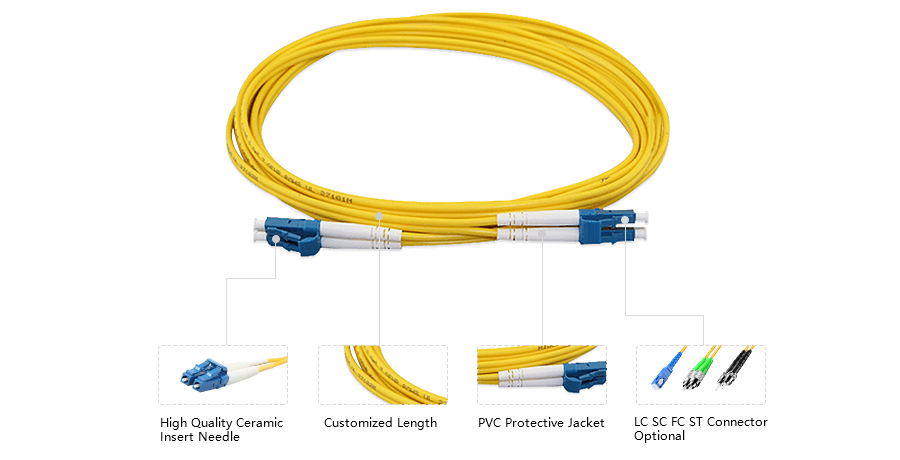

    Technology

    -----------------------


    Certification

    -----------------------

    Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs.
