A Copper RJ45 SFP (Small Form-Factor Pluggable) module is a hot-pluggable transceiver designed for network devices. It is specifically made to transmit data through standard Ethernet copper cables, such as Cat5e, Cat6, or Cat6a. Unlike traditional optical SFP modules, Copper RJ45 SFP modules utilize an RJ45 interface, transmitting data over copper cables via electrical signals rather than optical signals.
RJ45 SFP modules allow data transmission between network devices over short distances using copper cables. They generally support Ethernet transmission speeds of 10/100/1000 Mbps, with some advanced models supporting 2.5G, 5G, or even 10G speeds. These modules typically support hot-swapping, meaning they can be inserted or removed without powering down the device.
Working Principle of a Copper RJ45 SFP
The working principle of a Copper RJ45 SFP module relies on transmitting electrical signals through copper cables. The basic workflow can be summarized as follows:
Data Conversion and Transmission: In devices like network switches or routers, the device generates digital data. The Copper RJ45 SFP module converts this data into electrical signals via its internal circuitry and transmits them through standard copper cables (such as Cat5e, Cat6, or Cat7) to the receiving device.
Physical Layer Transmission: Through the RJ45 interface, the electrical signals are transmitted over copper cables. Since the transmission is based on electrical signals, the transmission distance is shorter compared to fiber optics, typically within 100 meters.
Auto-Negotiation: Most Copper RJ45 SFP modules support auto-negotiation. This means they can automatically adjust the transmission speed based on the network environment. For example, the module can switch between 10Mbps, 100Mbps, and 1Gbps, depending on the connected devices and network conditions.
Full-Duplex Communication: Copper RJ45 SFP modules support full-duplex communication, meaning they can send and receive data simultaneously. This makes data transmission more efficient, reducing wait times during transmission.
Application Scenarios for Copper RJ45 SFP
Copper RJ45 SFP modules are widely used in various network environments, especially those leveraging existing copper cable infrastructure. Some common application scenarios include:

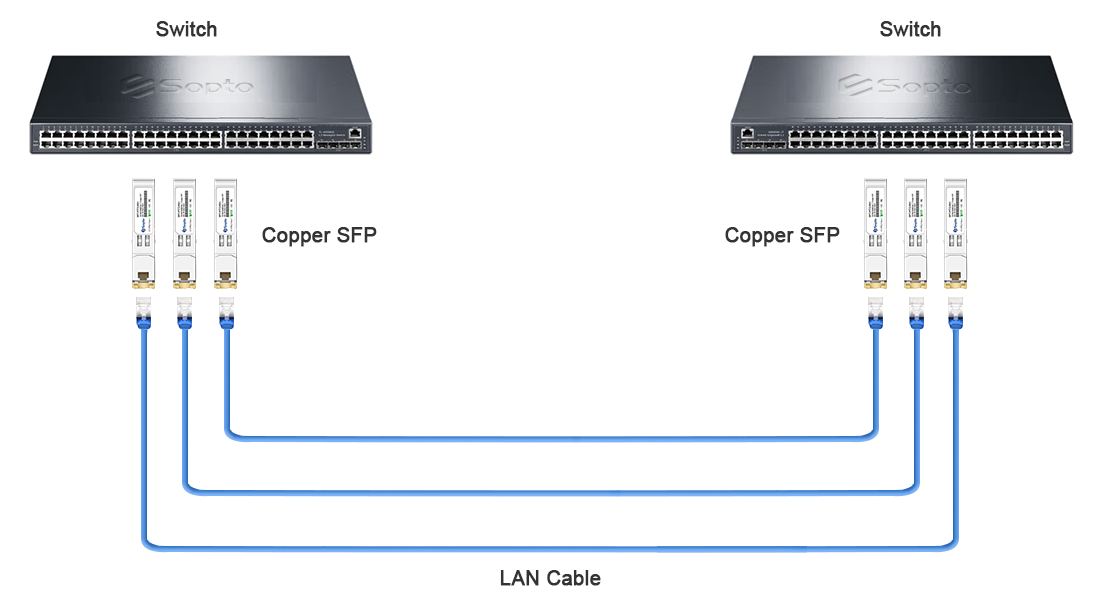

Short-Distance Data Center Connections: In data centers or server rooms, Copper RJ45 SFP modules are used to connect devices like servers, switches, and routers over short distances. These modules allow businesses to effectively use existing Cat5e or Cat6 copper cables for high-speed data transmission without upgrading to fiber optics, thus saving costs.
Edge Device Connectivity: Many businesses and organizations use Copper RJ45 SFP modules to connect the main network backbone with edge devices, such as connecting floor switches to core switches or linking security cameras to network video recording systems.
Flexible Network Expansion: RJ45 SFP modules, with their hot-swappable design, enable flexible port expansion for network devices without shutting them down. Businesses can add extra copper cable ports to switches as needed, increasing network scalability.
Small Offices or Branch Networks: In small or branch office networks, businesses often use Copper RJ45 SFP modules to connect core switches with end-user devices. Copper cabling provides a fast and reliable local area network setup.
Upgrading Existing Copper Cable Networks: For networks that already have extensive copper cable infrastructure, using RJ45 SFP modules is an ideal upgrade option. Businesses can enhance transmission speeds and improve network performance without rewiring, simply by swapping out modules.
Advantages of Copper RJ45 SFP
Cost-Effective: Compared to fiber optic transmission, copper cables and RJ45 interfaces are more affordable, making them ideal for short-distance network deployments where budget savings are a priority.
Plug-and-Play: Copper RJ45 SFP modules support hot-swapping, allowing users to easily replace or upgrade modules without disrupting normal network operations.
Wide Compatibility: These modules are compatible with various network devices and support existing Ethernet copper cable infrastructure, making them suitable for use in equipment from multiple manufacturers, including switches and routers.
Ideal for Short-Distance Transmission: For network connections within 100 meters, Copper RJ45 SFP modules provide sufficient bandwidth while avoiding the high costs of fiber optic equipment.
Copper RJ45 SFP modules are essential components in network connectivity, especially for environments with existing copper cable infrastructure. They offer flexible networking options, enable high-speed Ethernet data transmission, and are cost-effective, highly compatible, and easy to deploy. For users looking to enhance network performance over short distances without costly fiber optic upgrades, Copper RJ45 SFP modules are an ideal choice.
Sopto Copper RJ45 SFP Ordering Information
| Data Rate | Transmission Distance | Interface | Operating Temperature |
| 10GMbps | 30m | RJ45 | 0~+70℃ |
| 1000Mbps | 100m | RJ45 | 0~+70℃ |
| 10/100/1000Mbps | 100m | RJ45 | 0~+70℃ |
| 10/100/1000Mbps | 100m | RJ45 | -20~+85℃ |
