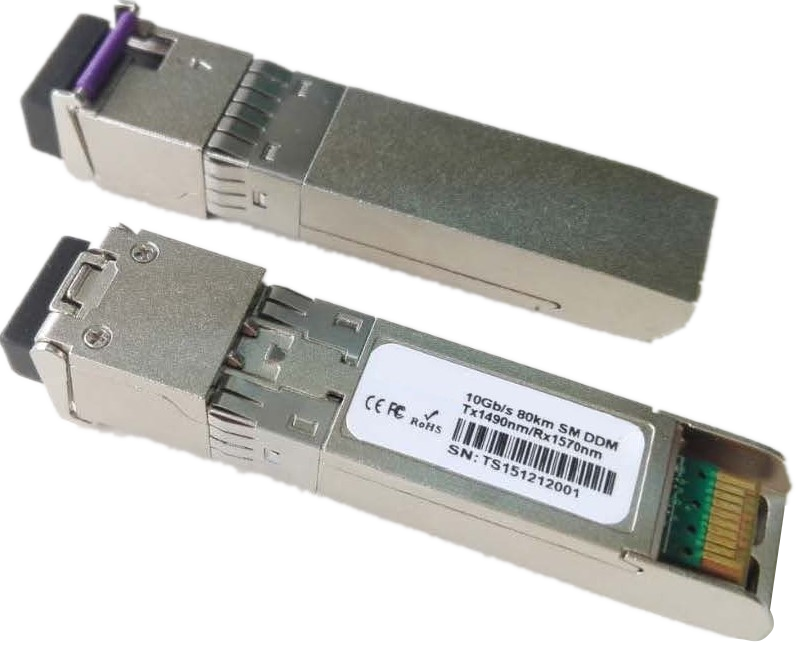

SOPTO's SPT-PB47TG-L80/ SPT-PB74TG-L80 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SPT-PBXXTG-L80D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification. The high performance 1490/1570nm 1570/1490nm cooled EML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 80km links.The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot plug-ability, easy optical port upgrades and low EMI emission.
Features
● Supports 9.95 to 11.3Gb/s bit rates
● Hot-Pluggable
● Single LC for Bi-directional Transmission
● Cooled EML transmitter, APD photo-detector
● SMF links up to 80km
● 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
● Power Supply :+3.3V
● Power consumption<3W
● Temperature Range: 0~ 70°C
● RoHS compliant
Part Number | Product Description |
SPT-PB47TG-L80 | Optical Transceiver 10G SFP+ BIDI Tx1490nm/Rx1570nm, 80km, LC, DDM |
SPT-PB74TG-L80 | Optical Transceiver 10G SFP+ BIDI Tx1570nm/Rx1490nm, 80km, LC, DDM |
If you need more details of the optical module, please contact [email protected]
