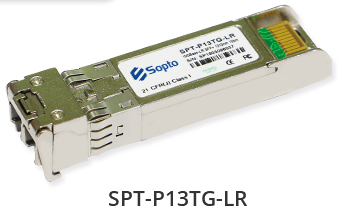

This 1310 nm 10G SFP+ LR transceiver is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The TSPLXG20D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification. The high performance 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km or 20km links The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Features :
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Electrical interface compliant to SFF-8431
● Hot Pluggable
● 1310nm DFB transmitter, PIN photo-detector
● Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
● Low power consumption
● Applicable for 10km or 20km SMF connection
● All-metal housing for superior EMI performance
● Advanced firmware allow customer system encryption information to be stored in transceiver
● Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Applications:
● 10GBASE-LR/LW Ethernet
● SONET OC-192 / SDH
● 10G Fibre Channel

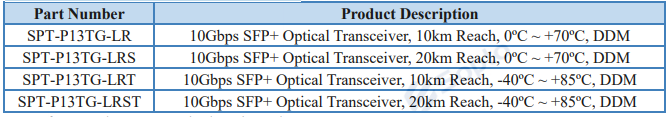

Ordering Informations
Note: If you need more customized services, please contact us.
