1. Introduction to MPO/MTP to LC/SC Cassette Module
The MPO/MTP to LC/SC Cassette Module is a high-density, pre-terminated fiber optic cabling solution, mainly used in data centers, enterprise networks, and high-performance computing environments. The module can achieve efficient connection between MPO/MTP trunk cables and LC or SC interface devices, reduce the need for on-site splicing, and improve the flexibility and manageability of the cabling system.

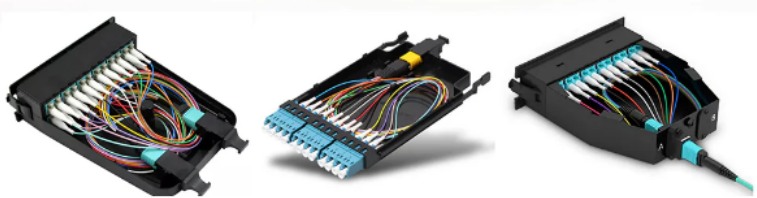

The internal structure of the Cassette module usually contains a pre-terminated MPO/MTP fiber patch cord, which is precisely branched to multiple LC or SC adapter ports. Its main features include:
● High-density design: multiple modules can be installed in a single 1U rack to improve rack space utilization.
● Plug and Play: Factory termination and testing, reducing on-site installation time and errors.
● Modular management: easy to upgrade and maintain, suitable for fiber optic cabling system expansion.
● Strong compatibility: supports OM3/OM4/OM5 multi-mode optical fiber and OS2 single-mode optical fiber, which can adapt to different application requirements.
2. Application Scenarios of MPO/MTP to LC/SC Cassette Module
(1) High-speed network cabling in data centers

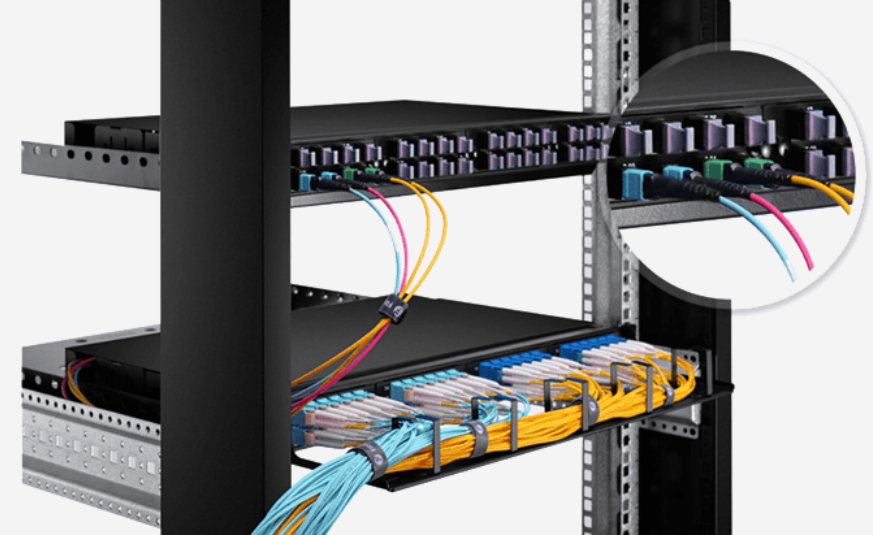

In data centers, MPO/MTP to LC/SC modules are mainly used for high-density fiber interconnection between servers, storage devices, and switches, supporting 40G, 100G, and higher-speed network environments. Its modular design simplifies fiber management, reduces losses, and ensures efficient expansion.
(2) High-performance computing (HPC) and cloud computing environments
High-performance computing clusters (HPC) and cloud computing data centers usually require high-speed, low-latency fiber connections. MPO/MTP cassette modules can provide stable connection solutions, support parallel data transmission, and ensure large-scale data throughput.
(3) Enterprise networks and telecommunications equipment rooms
In enterprise networks and telecommunications operator equipment rooms, MPO/MTP to LC/SC modules are used in fiber backbone networks to facilitate rapid connection of multiple floors or data nodes, improve fiber resource utilization, and simplify network management and maintenance.
(4) Broadcast and video transmission systems
Applications such as high-resolution video streaming, remote conferencing, and broadcast networks require high-bandwidth, low-latency fiber connections. MPO/MTP modules can be used to transmit high-definition video signals and support high-bandwidth requirements such as 4K/8K video transmission.
3. MPO/MTP to LC/SC Cassette Module Selection Points
Fiber type: Select single-mode (OS2) or multi-mode (OM3/OM4/OM5) fiber according to application requirements.
MPO/MTP interface: Select MPO/MTP 12/24/48-core connectors that meet system requirements to ensure compatibility.
Adapter type: LC or SC adapters must match the terminal device port type.
Insertion loss: Low-loss version is suitable for high-speed, high-density fiber networks to reduce signal attenuation.
MPO/MTP to LC/SC Cassette Module is a key component of data centers and fiber backbone networks, enabling efficient, flexible and scalable fiber connection solutions. With the growing demand for high-speed transmission, this module will play an important role in data centers, enterprise networks, cloud computing, HPC and high-definition video applications.
Sopto provides high-quality MPO/MTP to LC/SC cassette modules that support personalized customization to meet the needs of different scenarios. For more information, please contact our technical team. Email : [email protected]. Whatsapp : https://wa.me/+8618688759008/
