The CPRI Cable are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition.SOPTO supplies FTTA(Fiber to the Antenna) DLC (Dual LC Connctor) SM GYFJH 2G.657A patch cord for TD-SCDMA,WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.
Fetures：
● The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
● Standard Duplex LC connector, well connected with standard LC adaptor
● Available Single mode and Multimode
● IP67 protection, salt-mist proof, humidity proof, dust proof
● Low insertion/return loss, steady optical transmitting.
● Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
● 500cycles Mechanical life
Applications：

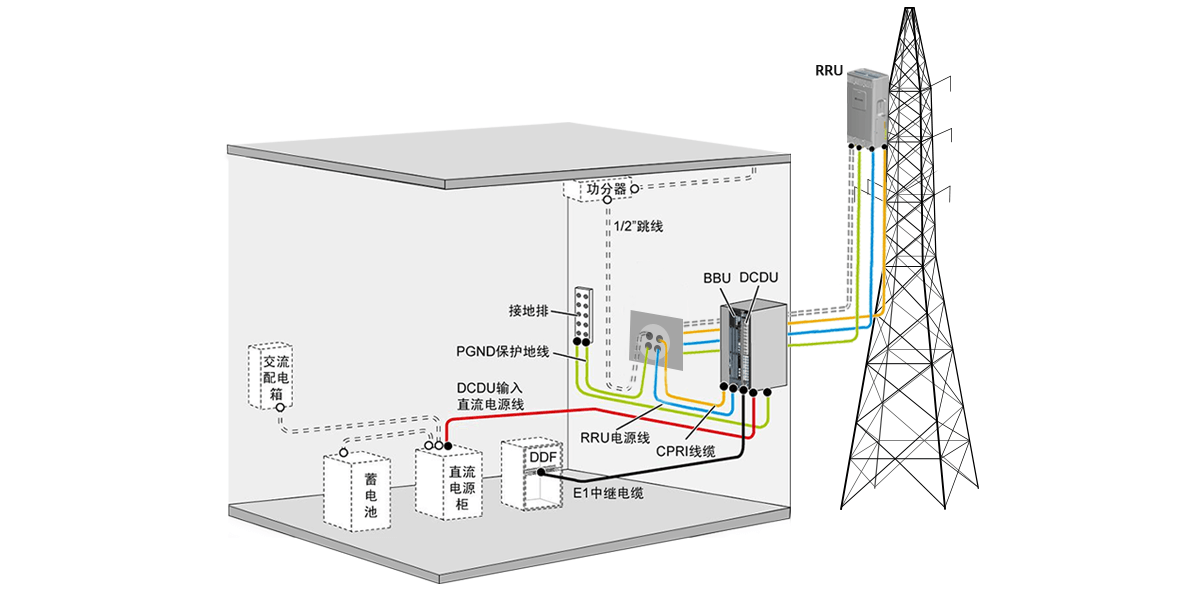

For the application of it you can refer to the below picture

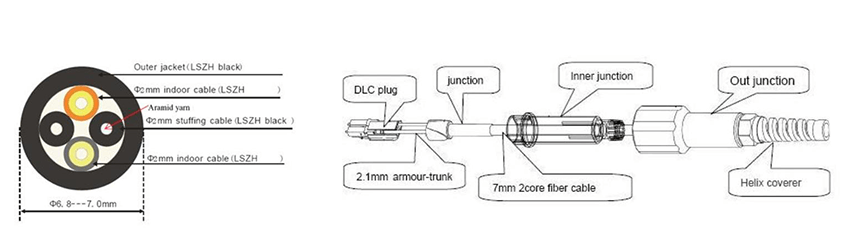

The structure of the CPRI cable is like the below picture

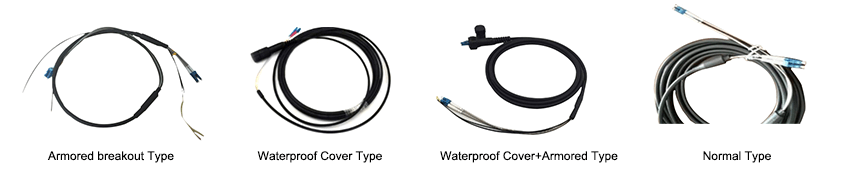

Usually there are four types CPRI cable: The armored breakout type, the waterproof cover type, the waterproof cover type + armored type and the normal type. For detail you can refer to below picture.

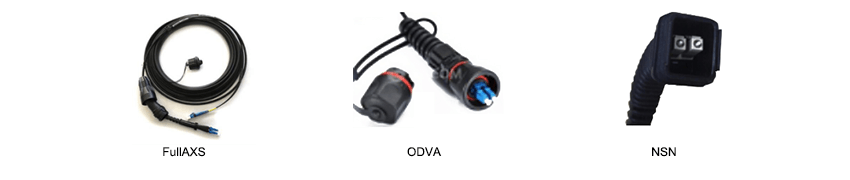

For the waterproof cover for the CPRI cable, now usually there are 3 types: FullAXS, ODVA and NSN like below picture
Sopto can provide you full range of CPRI cables. So if there is any needs, then please do not hesitate to send us your inquiry.
