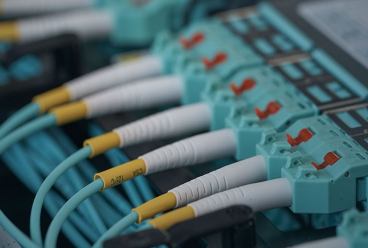

The single-mode and multimode MPO products are multi fiber connectors used in high-density backplane and Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO connector can offer up to 12 times the density of standard connectors, providing significant space and cost savings.
MPO patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4,8,12 or 24 fibers.
When people need the MPO patch cords, then need to check and confirm the below parameters:
1. How many cores fiber you need? Usually there are 4,8,12 or 24 fibers.
2. For the MPO connectors, need male or female type?
3. What is the length you need?
4. Which type fiber you need? Single mode fiber or multimode fiber?

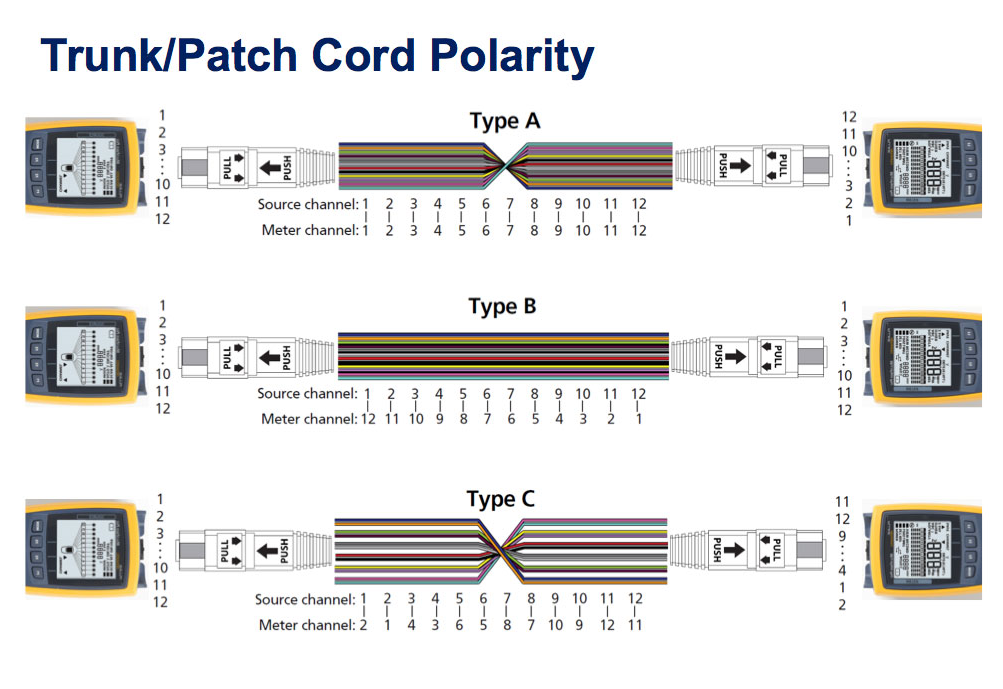

5. Last but very important, which type polarity you need? Usually there are 3 types, like the below picture. If to use together with the normal QSFP MPO connector transceiver module, the polarity you need to choose will be like the below type B.
If there is any needs for the MPO patch cords or want to know more about this product, then please do not hesitate to let me know.
