PON is the latest generations of access network technology. IEEE802.3ah is the standard protocol of EPON. ITU-T G.984 is the standard protocol of GPON. PON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON/EPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
Sopto’s PON portfolio delivers high-speed voice, data and video services to both residential and business subscribers. The platform, comprising both optical line terminal (OLT) and optical network unit (ONU), represents a high-speed FTTX solution and an alternative or adjunct to XDSL access, service provoking.
For the newest quotes, please contact a Sopto representative by sending an email.
[email protected]
| |

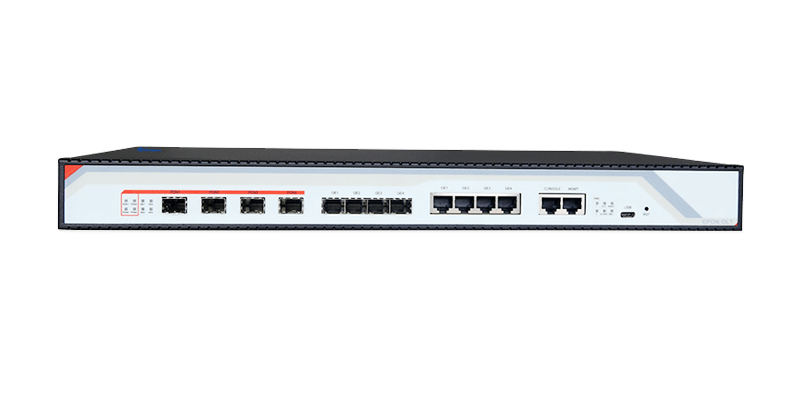

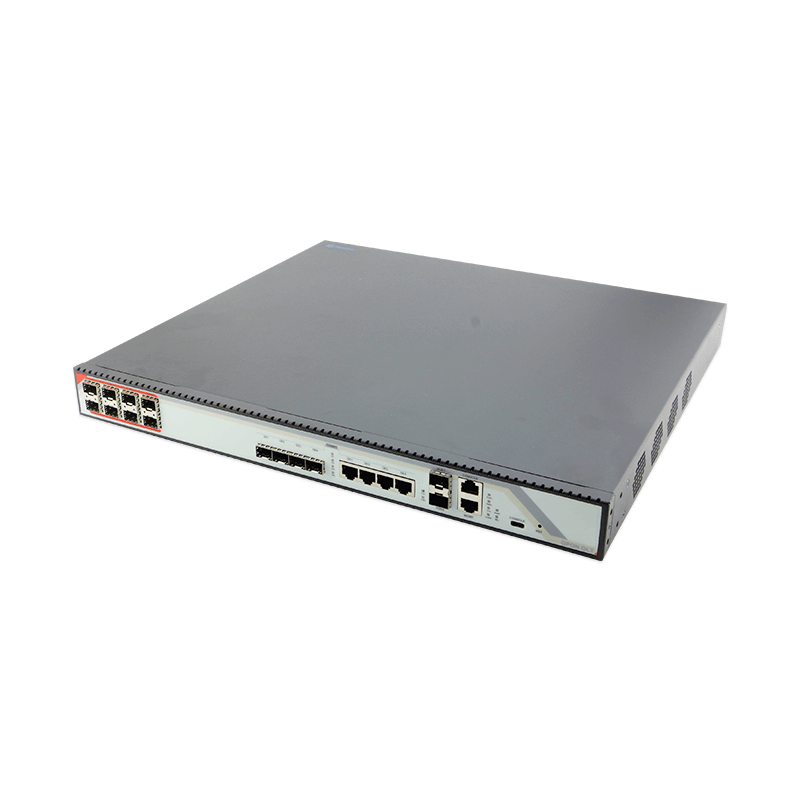

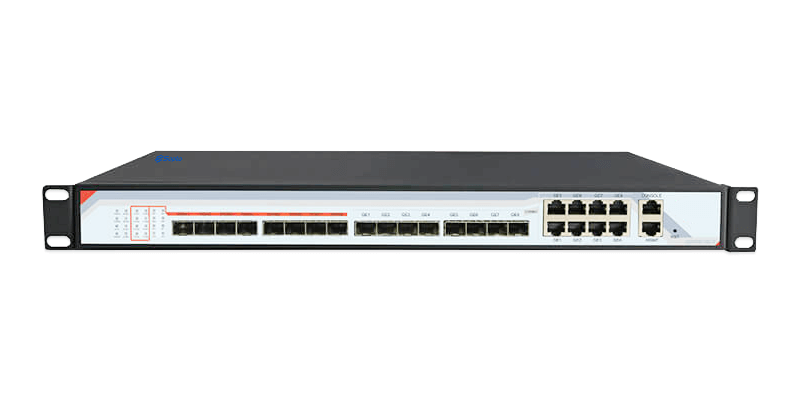

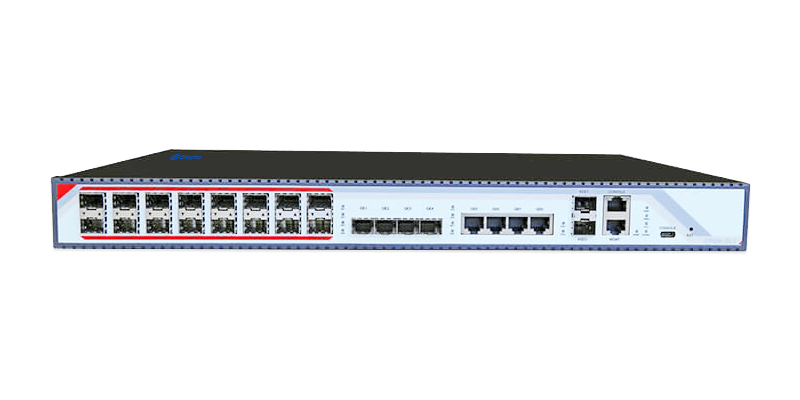

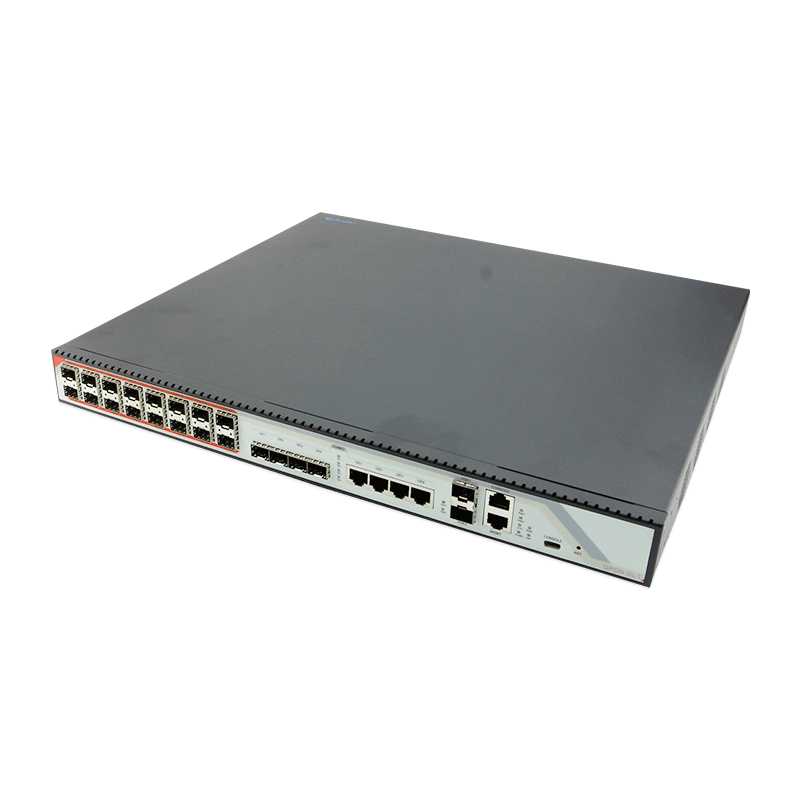

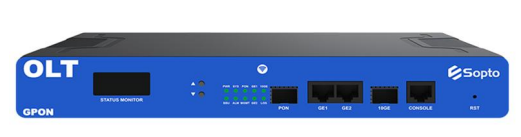

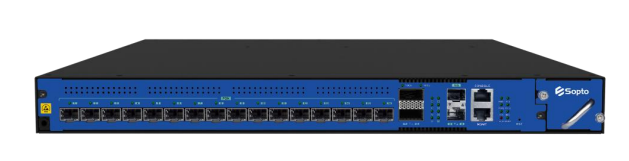

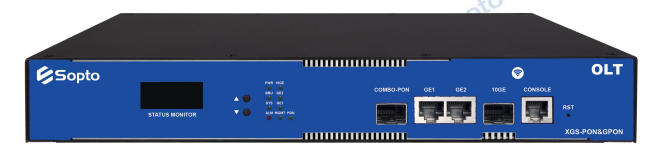

OLT of local side (Machine room) is the core of PON system, provides uplink interfaces with high speed for information accessing like voice, data, and PON interfaces for passive optical distribution network. OLT is also the control center of PON system, by which network management system can accomplish operations, management and maintenance of PON system. | |
|  |
 |  |
| 8 Port GPON OLT | 16 Port GPON OLT |
 |  |  |
| 4 Port EPON OLT | 8 Port EPON OLT | 16 Port EPON OLT |
|  | |
| |||

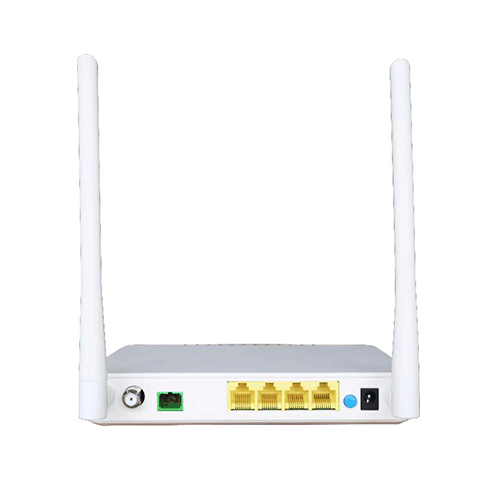

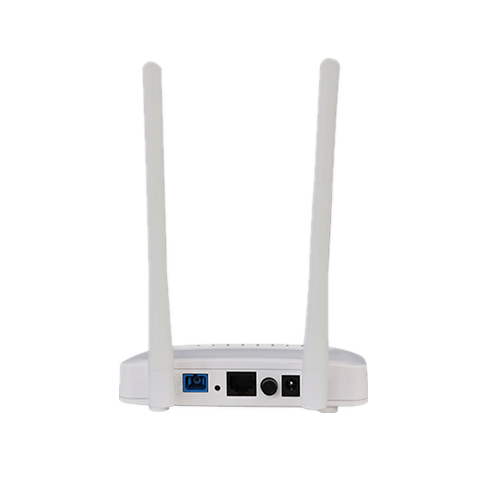

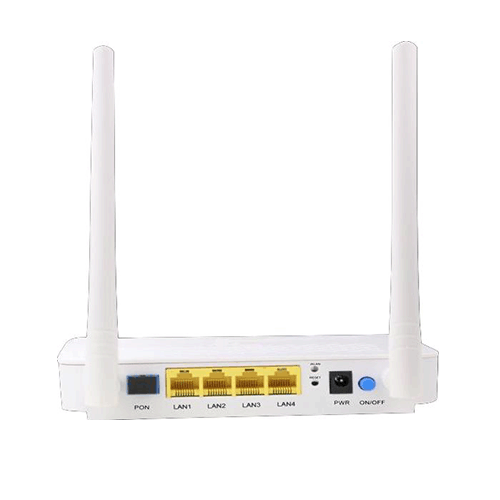

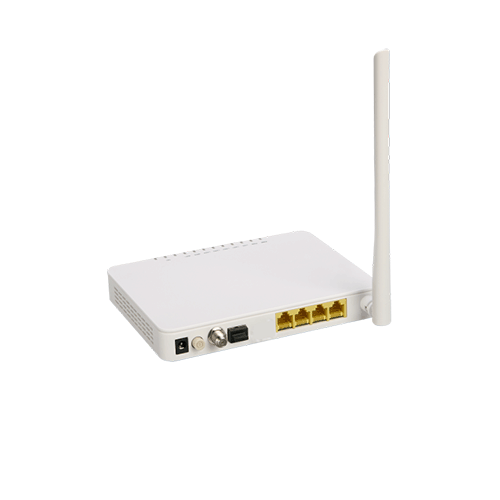

ONU of user side provides interface for services like data, internet video, CATV and VOIP, wifi. By applying Ethernet, GEM protocol and so on, to implement transparent transmission of user data in PON system. | |||
|  |  |  |
| CATV GPON ONU | DATA GPON ONU | CATV EPON ONU | DATA EPON ONU |
Ordering Information
PN | Descriptions |
Data GPON ONU | |
SPU-G120-H | 1*10/100/1000M Ethernet interface, 1 GPON interface, plastic casing, external power supply adapter |
SPU-G120-Y | Built -in one ONU module, 1*10/100/1000M Ethernet interface, 1 GPON interface, aluminumcasing, 220V AC power supply |
SPU-G120W-H | 1*10/100/1000M Ethernet interface, 1 GPON interface, with 2.4GHz WIFI, plastic casing, external power supply adapter |
SPU-G420-H | 4*10/100/1000M Ethernet interface, 1 GPON interface, plastic casing, external power supply adapter |
SPU-G420W-H | 4*10/100/1000M Ethernet interface, with 2.4GHz WIFI, external power supply adapter, plastic casing |
SPU-G440W-H | 1*10/100/1000M and 3*10/100M Ethernet interface, with 2.4GHz WIFI, plastic casing, external power supply adapter |
CATV+Data GPON ONU | |
SPU-G231AW-H | 1*10/100/1000M and 1*10/100M Ethernet interface, 1 CATV port, with 2.4GHz WIFI, with AGC, plastic casing, external power supply adapter |
Voice+Data GPON ONU | |
SPU-G422W-H1 | 4*10/100/1000M Ethernet interface, 2 POTS interface, with 2.4GHz WIFI, 1 USB interface, plastic casing, external power supply adapter |
SPU-G422WD-H1 | 4*10/100/1000M Ethernet interface, 2 POTS interface, with 2.4GHz and 5GHz WIFI, 1 USB interface, plastic casing, external power supply adapter |
Data EPON ONU | |
SPU-E120-H | 1*10/100/1000M Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter |
SPU-E120W-H | 1*10/100/1000M Ethernet interface, 1 EPON interface, with 2.4GHz WIFI, plastic casing, external power supply adapter |
SPU-E230W-H | 1*10/100/1000M and 1*10/100M Ethernet interface, with 2.4GHz WIFI, plastic casing, external power supply adapter |
SPU-E410-H | 4*10/100M Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter |
SPU-E420-H | 4*10/100/1000M Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter |
SPU-E420-B | 4*10/100/1000M Ethernet interface, black metal housing, external power supply adapter |
SPU-ED420-B | 4*10/100/1000M Ethernet interface, PD af, black metal housing, external power supply adapter |
SPU-E420W-H | 4*10/100/1000M Ethernet interface, with 2.4GHz WIFI, external power supply adapter, plastic casing |
CATV+Data EPON ONU | |
SPU-E231W-H | 1*10/100/1000M and 1*10/100M Ethernet interface, 1 CATV port, with 2.4GHz WIFI, plastic casing, external power supply adapter |
SPU-E231AW-H | 1*10/100/1000M and 1*10/100M Ethernet interface, 1 CATV port, with 2.4GHz WIFI, with AGC, plastic casing, external power supply adapter |
Voice+Data GPON ONU | |
SPU-E231-H | 1*10/100/1000M and 1*10/100M Ethernet interface, 1 POTS interface, external power supply adapter, plastic casing |
SPU-E422WD-H | 4*10/100/1000M Ethernet interface, 2 POTS interface, with 2.4GHz and 5GHz WIFI, 1 USB interface, plastic casing, external power supply adapter |
Data XPON ONU | |
SPU-GE120-H | 1*10/100/1000M Ethernet interface, plastic casing, external power supply adapter |
SPU-GED120-H | 1*10/100/1000Mbps Ethernet interface, plastic casing, support POE function ( powered device / PD) |
SPU-GE231W-H | 1*10/100/1000M and 1*10/100M Ethernet interface, with 2.4GHz WIFI, plastic casing, external power supply adapter |
SPU-GE23011W-H | ONU+OTT modem, 1 EPON/GPON adaptive interface, 1*10/100/1000M and 1*10/100M Ethernet interface, 1 HDMI interface, 1 AV port interface, with 2.4GHz WIFI |
SPU-GE22WD-H | 2*10/100/1000M Ethernet interface, with 2.4GHz and 5GHz WIFI, plastic casing, external power supply adapter |
SPU-GE440W-H | 1*10/100/1000M and 3*10/100M Ethernet interface, with 2.4GHz WIFI, plastic casing, external power supply adapter |
SPU-GET420-B | 1 GPON/EPON adaptive optical interface, 4*10/100/1000M Ethernet interface, PSE 30W, 220V AC Power Supply, black metal housing |
SPU-GE420-H | 4*10/100/1000M Ethernet interface, plastic casing, external power supply adapter |
SPU-GE420W-H | 4*10/100/1000M Ethernet interface, with 2.4GHz WIFI, external power supply adapter, plastic casing |
SPU-GE420WD-H | 4*10/100/1000M Ethernet interface, with 2.4GHz and 5GHz WIFI, external power supply adapter, plastic casing |
CATV+Data XPON ONU | |
SPU-GE231AW-H | 1*10/100/1000M and 1*10/100M Ethernet interface, 1 CATV port, with 2.4GHz WIFI, with AGC, plastic casing, external power supply adapter |
SPU-GE2301BW-H | 1*10/100/1000M and 1*10/100M Ethernet interface, 1 CATV port, with 2.4GHz WIFI, external power supply adapter, plastic casing |
SPU-GE2200WD-H | 2*10/100/1000M Ethernet interface, 1 CATV port, with 2.4GHz and 5GHz WIFI, plastic casing, external power supply adapter |
SPU-GE4200A-H | 4*10/100/1000M Ethernet interface, 1 CATV port , build in FWDM -18～0dBm, with AGC, plastic casing, external power supply adapter |
SPU-GE4200AWD-H | 4*10/100/1000M Ethernet interface, 1 CATV port , with 2.4GHz and 5GHz WIFI, with AGC, plastic casing, external power supply adapter |
SPU-GE4211AWD-H | 4*10/100/1000M Ethernet interface, 1 POTS interface, 1 CATV port, with 2.4GHz and 5GHz WIFI, with AGC, external power supply adapter |
SPU-GE422WD-H1 | 4*10/100/1000M Ethernet interface, 2 POTS interface, with 2.4GHz and 5GHz WIFI, 1 USB interface, plastic casing, external power supply adapter |
Voice+Data XPON ONU | |
SPU-GE231-H | 1*10/100/1000M and 1*10/100M Ethernet interface, 1 POTS interface, external power supply adapter, plastic casing |
SPU-GE230W-H | 1*10/100/1000M and 1*10/100M Ethernet interface, 1 POTS interface, with 2.4GHz WIFI, external power supply adapter, plastic casing |
SPU-GE221WD-H | 2*10/100/1000M Ethernet interface, 1 POTS interface, with 2.4GHz and 5GHz WIFI, plastic casing, external power supply adapter |
SPU-GE421WD-H1 | 4*10/100/1000M Ethernet interface, 1 POTS interface, with 2.4GHz and 5GHz WIFI, 1 USB interface, plastic casing, external power supply adapter |
CATV+Voice+Data XPON ONU | |
SPU-GE4220AWD-H | 4*10/100/1000M Ethernet interface, 2 POTS interface, 1 CATV port, with 2.4GHz and 5GHz WIFI, with AGC, 1 USB interface, plastic casing, external power supply adapter |
WIFI 6 Data XPON ONU | |
SPU-GE420W6D-H | 4*10/100/1000M Ethernet interface, with 2.4GHz and 5GHz WIFI6, external power supply adapter, plastic casing |
SPU-GE421W6D-H1 | 4*10/100/1000M Ethernet interface, 1 POTS interface, with 2.4GHz and 5GHz WIFI6, plastic casing, external power supply adapter |
SPU-XGS422W6D-H | 4*10/100/1000M Ethernet interface, 2 POTS interface, with 2.4GHz and 5GHz WIFI6, external power supply adapter |
