The SPU-GE4200AWD-H dual-mode ONU optical interface supports EPON and GPON access. The ONU automatically recognizes the central office OLT mode (GPON or EPON) and activates the corresponding PON mode, thereby completing GPON or EPON adaptive access. SPU-GE4200AWD-H is a dual-mode ONU designed to meet the needs of radio and television operators for FTTH fiber-to-home multi-service reception. This product integrates Gigabit Ethernet through mature, stable and cost-effective Gigabit XPON technology Switching technology, WDM technology, HFC technology, have the characteristics of high bandwidth, high reliability, easy management and good quality of service (QoS) guarantee. The functions and performance indicators of the equipment meet ITU-T, IEEE related recommendations, relevant international standards and technical specifications of industry standards, and have good compatibility when used with mainstream manufacturers' central office OLTs.
Feature of SPU-GE4200AWD-H
● Single-fiber access, provides internet, CATV, WIFI multiple service
● In compliant with ITU - T G. 984 and IEEE802.3ah standard
● Support ONU auto-discovery/Link detection/remote upgrade of software
● Support VLAN transparent, tag configuration
● Support multicast function
● Support DHCP/Static/PPPOE internet mode
● Support port-binding
● Support data encryption and decryption function
● Support Dynamic BandwidthAllocation (DBA)
● Support MAC filter and URL access control
● Support remote CATV port management
● Support power-off alarm function ,easy for link problem detection
● Specialized design for system breakdown prevention to maintain stable system
● EMS network management based on SNMP ,convenient for maintenance

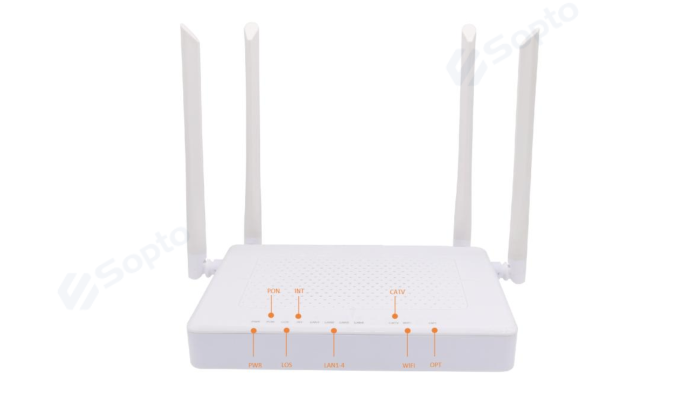

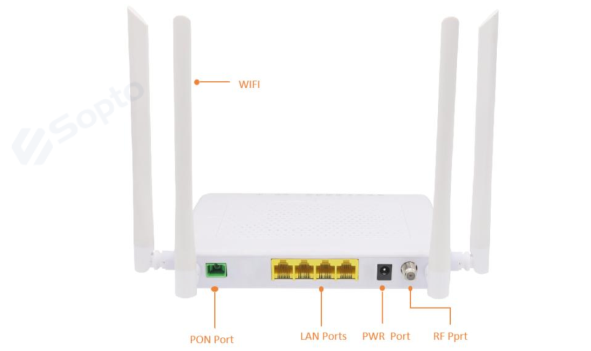

Product Interface and LED Definitions
|
|
WIFI
Blinking：Data is being transmitted
On：WIFI function Opens
LAN1-4 LAN port status
On: Ethernet connection is normal
Blinking: Data is being transmitted through the Ethernet port
Off: Ethernet connection is not set up
LOS PON optical signals
On: Optical power lower than receiver sensitivity ;
Off: Optical in normal
PON ONU Register
On: Success to register to OLT
Blinking: In process of registering to OLT
Off: Failed to register to OLT;
CATV CATV status
On：CATV optical normal
Off：The CATV signals are not received
PWR Power status
On: The ONU is power on
Off: The ONU is Power off
OPT Light intensity indicator
On: higher than ONURX maximum threshold;
flashing: lower than ONU RX minimum threshold;
off: ONU RX is within the normal threshold range.
INT Internet status indicator
On: The routed WAN Internet access service is normal.
Off: The routed WAN Internet access service is abnormal.

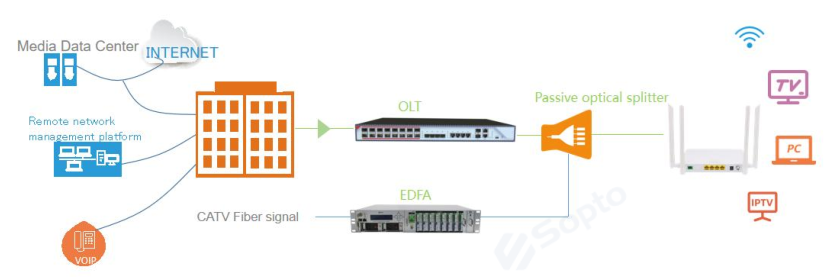

Network Application
● Typical Solution：FTTH
● Typical Business：Internet, CATV, Wi-Fi
Ordering Information
Product Model | Descriptions |
SPU-GE4200AWD-H | G/EPON ONU 4*10/100/1000M Ethernet interface, with CATV support 2.4GHz and 5GHz WIFI 802.11ac ，with AGC |
If you need more products details , please feel free to contact us. [email protected]
