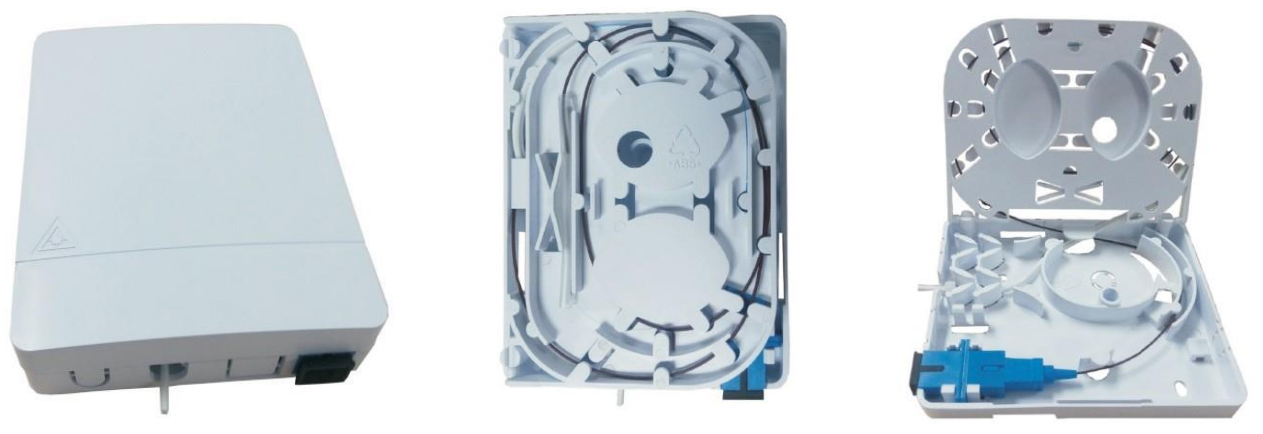

This Fiber Rosette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
Features
● Dust-proof design with IP-45 Protection level..
● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition
● Easy to maintain and extend the capacity
● Suitable for the fusion splice or mechanical splice.
● Embedded type surface, easy for installation and removal.
● 2 ports cable entrance for patch cable.
Applications
● Telecommunication subscriber loop
● Fiber to the home(FTTH)
● LAN/WAN
Specificationns
Scope of application : 3.0*2.00mm drop cable or indoor cable
Fiber cladding diameter : 125um (G652D&G657)
Fiber Diameter : 250um &900um
Fiber Type : SM &MM
Tensile strength : >50N
Operating temperature : -40~85C
Connecting Adaptor : Simplex SC & duplex LC
Insertion loss : <0.2dB
Return loss : >50Db(UPC), >60dB (APC)
Material : PC+ABS
Size A*B*C(mm) : 105*82*21
Weight(kgs) : 0.4
Color : White
Ordering informations
| Part Number | Product Description |
| SPDF-I2SCT-TPG | Fiber Rosette Box Indoor 2 cores Simplex SC/Duplex LC type without adaptors, pigtails and splitter Plastic type G |
