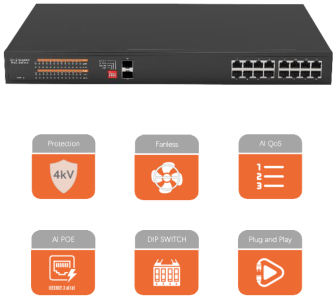

SPS-TF16G2/SPS-TF24G2 is a new generation Power over Ethernet switch with 16/24-Port 10/100/1000Base-TX and 2 Gigabit uplink ports that provide stable and reliable Ethernet transmission offered by Sopto, with high-quality design and reliability. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises.
Features
● 16/24x10/100/1000Base-TX RJ45 ports,2xGigabit SFP/ RJ45
● Support full-duplex based on IEEE802.3x and half-duplex based on back pressure
● IEEE802.3af/at PoE standard, without damaging non-PoE devices.
● Support 10K bytes giant frame, compatible with various extension protocol
● Support IEEE802.3az Energy Efficient Ethernet technology
● Electric 4kV surge protection
● Fanless and noiseless design, IP30 rated protection
● Plug and play, no configuration, simple and convenient
● Providing a long term and stable PoE power output
● The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE
AI PoE Switch used on all devices which are compatible with the PoE standards but don't support passive low voltage devices. It is also important not to let the power requirements of your devices exceed the total PoE budget of the switch when planning your installation. All models support Artificial intelligence features via dip switch and include, AI VLAN, AI QoS, AI PoE and AI Extend. Let's explore these in a little more detail.
AI PoE: The AI PoE feature allows the switch to check the ports for activity periodically. If a port is not passing traffic for a certain amount of time, the switch will reset power on that specific port.
AI QoS: When AI QoS is enabled on the 4 and 8 port models, all ports will prioritise Video and VoIP
traffic flows over others.
AI VLAN: AI VLAN is essentially port isolation on each of the PoE ports. All PoE ports are only able to communicate with the uplinks when this option is enabled.
AI Extend: AI extend is a common PoE switch feature designed to extend PoE distance up to 250m. The downside is that port speeds will be limited to only 10Mbps.
Specifications
Ethernet Interface | |||||
Model | SPS-TF16G2 | SPS-TF24G2 | |||
RJ45 Port | 16x10/100/1000Base-TX | 24x10/100/1000Base-TX | |||
Optical Fiber Port | 2x1000Base-X SFP | 2x1000Base-X SFP | |||
SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single- mode / multi-mode, single fiber / dual fiber optical module. LC) | ||||
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | ||||
Port Mode(Tx) | Auto-Negotiation Full/Half Duplex Mode Auto MDI/MDI-X Connection | ||||
Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1p for Class of Service IEEE802.3az Energy Efficient Ethernet | ||||
Packet Buffer Size | 4Mbits | ||||
Maximum Packet Length | Up to 10K | ||||
MAC Address Table | 8K | ||||
Transmission Mode | Store and Forward (Full Wire Speed) | ||||
Exchange Property | Delay time: < 7μs Backplane bandwidth: 52Gbps | ||||
Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging | ||||
PoE & Power Supply | |||||
Model | SPS-TF16G2 | SPS-TF24G2 | |||
PoE Port | Port 1 to 16 IEEE802.3af/at @PoE | Port 1 to 24 IEEE802.3af/at @PoE | |||
Power Supply Pin | Default: 1/2(+), 3/6(-),Optional:4/5, 7/8(-) | ||||
Max Power Per Port | 30W; IEEE802.3af/at | ||||
Total PWR | [email protected] / port [email protected] / port | [email protected] /port [email protected] /port | |||
Power Consumption | ＜15W(220/50 Hz, no PD connected) | ＜18W(220/50 Hz, no PD connected) | |||
Power Inputs | 1 | ||||
Power Supply | Internal power adapter with AC100 – 240V 50-60Hz input | ||||
Protection | Overload Current Protection | ||||
LED Indicator | |||||
Power | Connect-always | ||||
RJ45 | LINK/ACT: Connect-always; Data exchange-twinkle | ||||
Optical Fiber | LINK/ACT: Connect-always; Data exchange-twinkle | ||||
Physical Characteristics | |||||
Housing | Metal | ||||
IP Rating | IP30 | ||||
Dimensions | 400*300*45 mm (L*W*H) 15.7*11.8*1.8 in (L*W*H) | ||||
Installation Mode | Wall Mount | ||||
Weight | 3800g(8.4lb) | ||||
Working Environment | |||||
Operating Temperature | 0℃~50℃ (32to 122 ℉) | ||||
Operating Humidity | 5%~90% (non-condensing) | ||||
Storage Temperature | -20℃~70℃ (-4 to 158 ℉) | ||||
MTBF | 100,819 Hours | ||||
MTBF Standard | Telcordia SR-332 GB 25℃ | ||||
Cooling | Fanless, Passive Cooling | ||||
Noise Level | 0 dBA | ||||
Certification & Warranty | |||||
Lightning Protection | Surge Protection: 4kV 8/20us | ||||
Certification | CE mark, commercial；CE/LVD EN60950; FCC Part 15 Class B; RoHS | ||||
Warranty | 3 years, lifetime technical support | ||||
DIP Switch | Name | Status | Description | ||
#1 | AI Extend | OFF | Disable | ||
ON | Enable | ||||
#2 | AI VLAN | OFF | Disable | ||
ON | Enable | ||||
#3 | AI QoS | OFF | Disable | ||
ON | Enable | ||||
#4 | AI PoE | OFF | Disable | ||
ON | Enable | ||||
Ordering information
SPS-TF16G2 : POE switch PSE af/at 16 UTP Ports/all support POE 10/100Mbps+2 10/100/1000M UTP Ports&2 SFP Slots Combo，External Power Supply 350W 110~220V AC
SPS-TF24G2 : POE switch PSE af/at 24 UTP Ports/all support POE 10/100Mbps+2 10/100/1000M UTP Ports&2 SFP Slots Combo，External Power Supply 350W 110~220V AC
