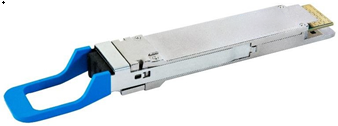

The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 10km fiber transmission
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Features
● QSFP-DD MSA compliant
● 4 CWDM lanes MUX/DEMUX design
● 100G Lambda MSA 400G-LR4 Specification compliant
● Up to 10km transmission on single mode fiber (SMF) with FEC
● Operating case temperature: 0 to 70oC
● 8x53.125Gb/s electrical interface (400GAUI-8)
● Data Rate 106.25Gbps (PAM4) per channel.
● Maximum power consumption 12W
● Duplex LC connector
● RoHS compliant
Applications
● Data Center Interconnect
● 400G Ethernet
● Infiniband interconnects
● Enterprise networking

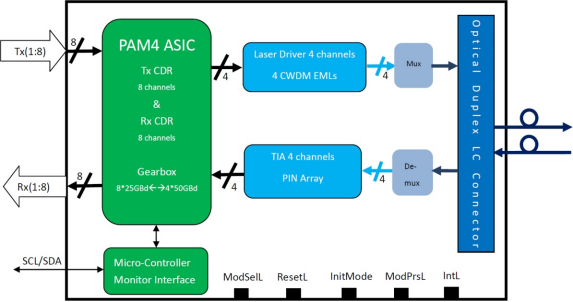

Transceiver Block Diagram
ESD
This transceiver is specified as ESD threshold 1kV for high speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Laser Safety
This is a Class 1 Laser Product according to EN 60825-1:2014. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007). Caution: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
Ordering informations
| Model | Products Description |
| SPT-QSFP-DD- LR4 | Transceiver QSFP-DD 1271nm/1291nm/1311nm/1331nm(CWDM) 400G LR4 10km LC Interface with FEC optical transceiver，with DDM Commercial Temperature |
We can also provide other styles of 400G optical modules, if you need more details, please contact us. [email protected]
