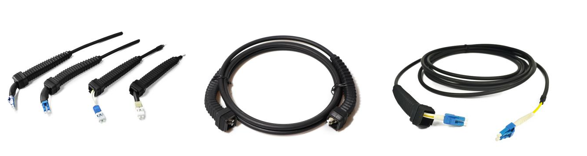

1.Full AXS
Full AXS is a outdoor connector that designed to provide IP-67 water and dust seal over Fullaxs-LC Duplex, MTP/MPO and other connector types. Sopto's FullAXS Connector Cable Assemblies meets the needs of next generation WiMAX and Long Term Evolution (LTE) Fiber/Power/Signal To The Antenna (x-TTA) connectivity designs, This allows for the usage of strong cable assemblies on the outdoors.Features include a water tight seal up to IP67 levels, Applications include WiMAX and LTE Base Stations, Remote Radio Heads (RRH), FTTA outdoor applications. Suitable for outer diameter 4.8MM or 7.0MM optical cable
Features
● Factory terminated (tested cables) or Field installable version available
● Ruggedised sealing system for Fiber-to-the-Antenna (FTTA) and industrial applications
● IP67 water, dust proof and corrosion resistant, UV-resistant
● Open bulkhead for easy access to SFP
● Duplex LC interface
● Waterproof, dust proof and corrosion resistant
● Robust bayonet locking for easy, fast and secure mating
● Expansion to RJ45 and power possible

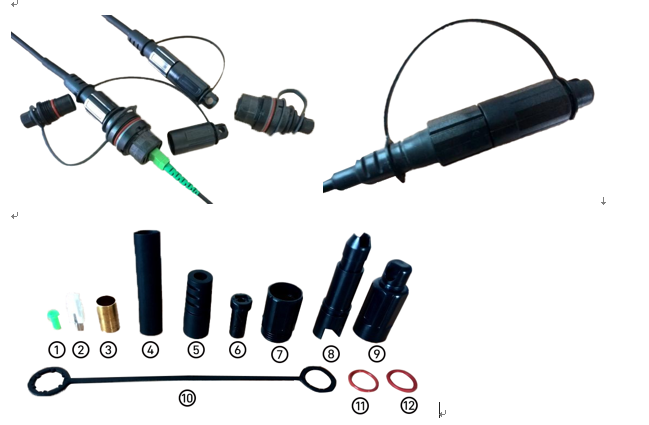

2.ODVA
Sealed Circular IP68 ODVA fiber optic patch cable assemblies provides low cost ideal solution for CATV, RRH remote radio heads, FTTX harsh environment connectivity. This ODVA-LCDX, ODVA-SC and ODVA-MPO is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use.

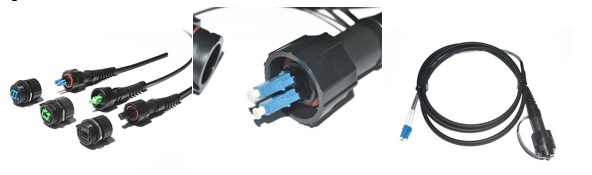

（1）.ODVA-LC(waterproof grade: IP68); Suitable for 3.0MM—8.0MM outer diameter optical cable

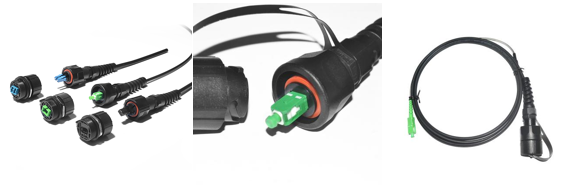

(2).ODVA-SC (waterproof grade: IP68); Suitable for 3.0MM—8.0MM outer diameter optical cable
(3). ODVA-MPO (waterproof grade: IP68); Suitable for 3.0MM—8.0MM outer diameter optical cable
Features
● 3 series optional: LC duplex,SC simplex,and MPO.
● IP68 Waterproof
● Low insertion and high return loss.
● 5.0mm, 7.0mm cable optional.
● Wide range of operational temperature from -40 to+85°C.
● 100% optically tested to ensure quality performance assemblies.

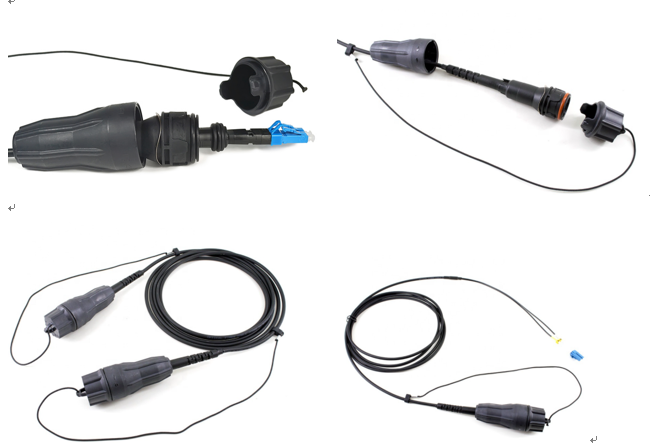

3.PDLC
PDLC connectors and required optical cables have become standard interface applications for 4G, 5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.
PDLC (waterproof grade: IP67); Suitable for 3.0MM—7.0MM outer diameter optical cable
Feature
● Standard Duplex LC connector, low IL, high RL.
● IP67 protection, salt-mist proof, humidity proof,dust proof.
● Easy Operation, reliable and cost-effective Installation.
● 100% optically tested to ensure quality performance assemblies.

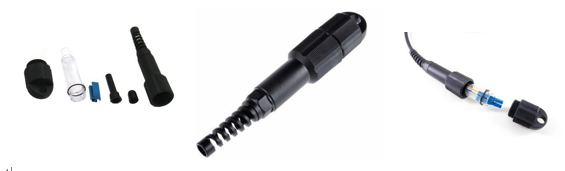

4.NSN
NSN Boot CPRI Optic Patch Cord cable with flexible boots is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Compatible with Nokia's waterproof connector for latest and next-generation mobile communication systems. Especially in the 3G, 4G,5G Base station (BBU to RRU).
NSN waterproof boot (waterproof grade: IP67); suitable for outer diameter 5.0MM or 7.0MM optical cable; NSN boot patch cable
Features
● Multi-purpose Outdoor
● For connection between distribution box and RRH
● Deployment in Remote Radio Head cell tower applications
5.OptiTap
（1）OptiTap SC/APC Patch Cord with 5.0mm Circular Cable
OptiTap-SC/APC Patch Cord is factory-terminated, environmentally sealed and hardened connectors to reduce the cost and the time of drop cable deployment in optical access networks. The OptiTap single-fiber cable assembly is specifically designed to significantly reduce required drop cable installation.
Feature
● Compatible with Corning-OptiTap and H-Connector;
● Factory terminated for high performance;
● Available with one or both ends connectorized;
● Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
● Available in dielectric or toneable;
● Designed for aerial, direct-buried or duct installation;
● IP-68 water and dust protection ;
● -40℃~85℃ operating temperature;

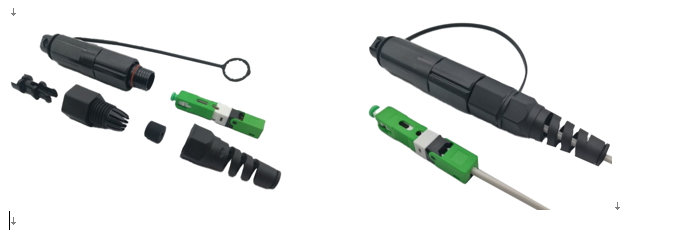

（2）OPtiTap-SC Field Installable Reinforced Connector
The FastConnect OPtiTap-SC optical cable consists of hardened SC connector and flat fibers cable, it adopts fast locked connector design, SC technologies, and compact cable structure, achieving fast deployment, high network reliability, and durability.
Features
● Fast deployment, plug and play
● Lower insertion loss SC technology
● Flat cable support aerial self-supporting and ground duct application
● Fast locked connector design
If you want to know more knowledge and details of optical fiber waterproof connector, or If you need more customized services, please contact us. [email protected]
