EDFA fiber amplifier, also known as erbium-doped fiber amplifier, is a major breakthrough in optical fiber communication technology because it can directly amplify weak optical signals without going through the optical-electrical-optical conversion process. Besides, what do you know about EDFA fiber amplifiers? Many people may answer "No". It doesn't matter if you don't understand. This article will analyze the EDFA fiber amplifier from the following aspects to give you a deeper understanding of it.
Why use EDFA fiber amplifiers?
There are many different bands in the optical fiber transmission process, such as C-band (1530nm-1560nm) and L-band (1560nm-1600nm). Different bands have different wavelengths, and communication will be affected, so it is necessary to amplify the span of the fiber link. Only the band channel can ensure the normal communication effect. EDFA fiber amplifiers just meet this need. It can use residual fiber as a gain medium to amplify optical signals and amplify a wide wavelength range (1500nm-1600nm), enough to amplify the data channels with the highest data rates. This feature can play a greater role in the WDM multi-channel optical transmission system, and therefore has become an indispensable part of the WDM system.
Application of EDFA Fiber Amplifier
1. Fiber Optic Cabling System
2. FTTX, FTTH
3. Dense Wavelength Division Multiplexing (DWDM) Optical Communication Networks
4. Video Optical Transmission System and CATV
5. Long-distance transmission of analog & digital CATV optical signals

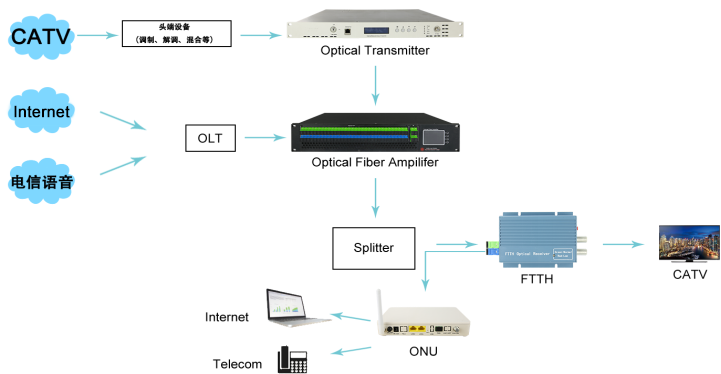

CATV Signal Transmission Network
Sopto's EDFA fiber amplifier （SPOA-51EYAXU Series）
1U：

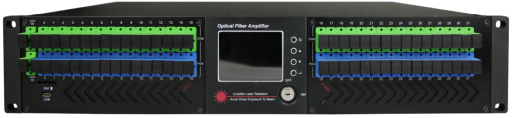

2U：
The 51EYAxx series high power amplifier is a high power multi output optical fiber amplifier with a gain spectrum bandwidth of 1535-1565nm. It is mainly designed for CATV or 1~8 continuous strip channels (ITU wavelength) applications. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities. 51EYAxx can achieve single-wavelength cable TV transmission, CWDM single-fiber three- wave, flat gain type, DWDM; its reliable and excellent performance ratio between the main application of FTTH, FTTB, DBS, MMDS, FTTX pon, is to build CATV large Medium-sized optical fiber transmission network is an important equipment.
Performance characteristics
● Adopts world top brand pump lasers and the OFS fiber of United States, advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
● Perfect APC, ACC, ATC control, users use in different networks, good ventilation design and temperature-controlled fan, ensure the long life and high reliability of PUMP laser.
● Using digital control chip, remote or local output power adjustable.
● Excellent protection circuit design, with light detection, optical return loss monitoring. Great protection of lasers and light path safety.
● Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
● Demultiplexer for 1310/1490/1560nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 5.0dB, Max ≤ 6.0dB);
● The total output optical power is optional: 2-10W (27-41dBm);
● The front panel can be removed and replaced flexibly according to the number of output ports; Can add a built-in optical switch module to facilitate the expansion of the device function; Cooling fan supports online replacement;
● The front panel LCD provides the operating parameters and alarms of the entire unit. RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.
● Can add OSW、optical transmiter、GSM module, convenient expansion of equipment functions.
