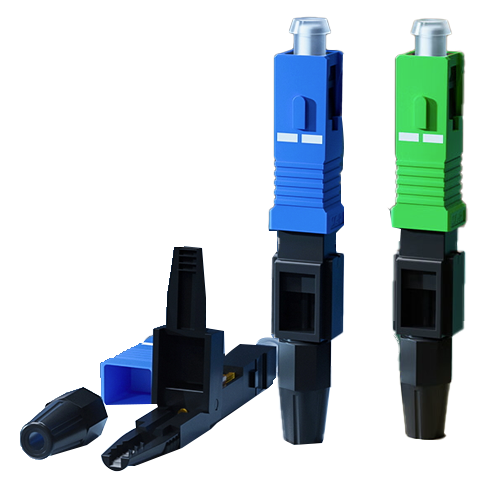

Fiber optic fast connectors play a crucial role in ensuring efficient and reliable optical communication. However, encountering high insertion loss can undermine the performance of these connectors. In this article, we will explore the various reasons behind high insertion loss and discuss potential solutions to address this issue.
Causes of High Insertion Loss
1.Contamination
Cause: Dust, dirt, or other contaminants on the connector end faces can obstruct the passage of light, leading to increased insertion loss.
Solution: Regularly inspect and clean connector end faces using appropriate cleaning tools and methods. Ensure a clean and dust-free environment during connector installation.
2.Misalignment
Cause: Poor alignment of fiber cores between connected connectors can result in increased insertion loss.
Solution: Use precision alignment techniques during connector installation. Properly inspect and align connectors to minimize any misalignment issues.
3.Fiber End Finish Quality
Cause: Imperfections in the polishing or cleaving process can affect the quality of the fiber end finish, leading to increased insertion loss.
Solution: Employ high-quality connectors with well-polished and cleaved fiber ends. Regularly check and maintain the quality of connector end finishes.
4.Connector Mismatch
Cause: Using connectors from different manufacturers or with different specifications may result in a mismatch, causing higher insertion loss.
Solution: Ensure compatibility between connectors by using components from the same manufacturer and adhering to industry standards. Standardize connector types for a more seamless connection.
5.Bending and Stress
Cause: Excessive bending or stress on the fiber can cause microbends or macrobends, leading to higher insertion loss.
Solution: Handle fibers with care to prevent excessive bending or stress. Use appropriate cable management techniques to minimize the risk of bends.
Remedies for High Insertion Loss
1.Regular Inspection and Cleaning
Periodically inspect and clean connector end faces using proper cleaning tools and techniques.
2.Precision Alignment
Ensure precise alignment of fiber cores during connector installation to minimize misalignment-induced insertion loss.
3.Quality Fiber End Finish
Use high-quality connectors with well-polished and cleaved fiber ends to maintain optimal performance.
4.Connector Compatibility
Ensure compatibility between connectors by using components from the same manufacturer and adhering to industry standards.
5.Careful Handling
Handle fibers with care to prevent excessive bending or stress, and implement appropriate cable management practices.
Addressing high insertion loss in fiber fast connectors requires a combination of preventive measures and careful handling. By understanding the potential causes and implementing the suggested solutions, users can optimize the performance of their optical communication systems. Regular maintenance and adherence to best practices are essential to ensure low insertion loss and reliable connectivity in fiber optic networks.
