SPU-G422WD-HZ1 dual-frequency voice type ONU is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice and video service based on the GPON network.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic.GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
SPU-G422WD-HZ1 provide two POTS ports, four 10/100/1000M adaptive Ethernet ports, one USB port, and 802.11a/b/g/n/ac Wi-Fi access. The SPU-G422WD-HZ1 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the SPU-G422WD-HZ1 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucent.
SPU-G422WD-HZ1 can integration wireless function with meet 802.11 a/b/g/n/ac technical standards. At the same time, it also supports 2.4GHz/5GHz dual-band wireless signal. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
Features
● In compliant with ITU - T G.984.1/2/3/4 standard
● Meet 802.11 a/b/g/n/ac WIFI technical standard
● Support ONU auto-discovery/Link detection/remote upgrade of software
● Support Ethernet line performance statistics function
● Support OMCI+TR069 management mode
● Support VLAN tag/untag
● Support multicast Snooping/Proxy
● Support DHCP/PPPOE/Static IP internet mode
● Support port binding
● Support loop-detection function
● Support device-based speed limitation
● Support MAC-address filter and URL access control
● Support H.248 and SIP protocol
● Support AES encryption and decryption
● Support Dynamic Bandwidth Allocation (DBA)
● Support ACL configure data packet filter flexibly
● EMS network management based on SNMP ,convenient for maintenance

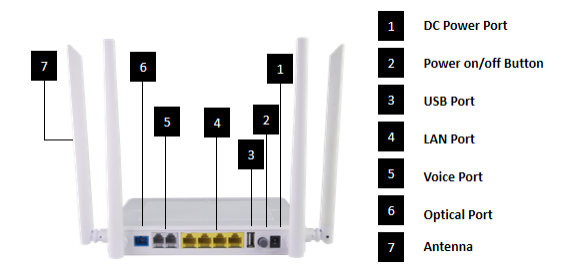

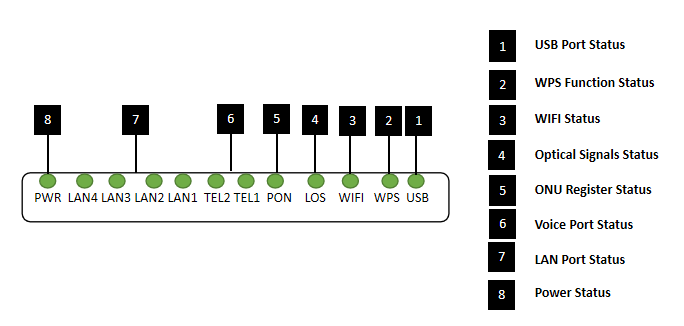

Product interface and LED definitions
WIFI Features
● Comply with IEEE 802.11a/b/g/n/ac protocol standard, support 2.4GHz and 5GHz
● There are four external antennas
● 5dBi antenna gain
● Maximum ideal rate up to 1.2Gbps
● 2.4GHz supports 2*2 MIMO (Multiple-Input Multiple-Output) technology
● 5GHz supports 2*2 MIMO (Multiple-Input Multiple-Output) technology
● Support 8 SSIDs
● Support wider RF bandwidth, up to 80MHz
● Support higher 256-QAM modulation mode
● Support MIMO-OFDM encoding mode
● Support wireless security of 64/128 bit WEP、802.1x、WPA and WPA2

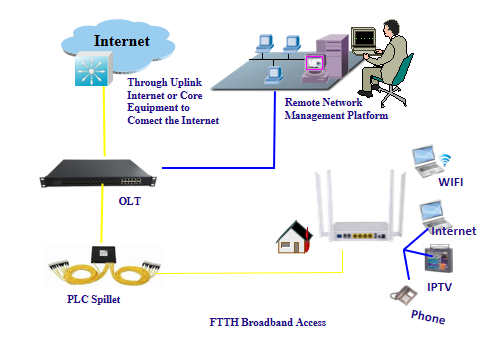

Network Application
Typical Solution：FTTH
Typical Business：Internet, Voice, Wi-Fi
GPON ONU 4*10/100/1000M Ethernet interface, 2 POTS interface，support 2.4GHz and 5GHz WIFI 802.11ac， 1 USB interface.if you want to learn more details about this product or other our ONU products,please don't hesitate to contact us.
