SPFC-NV-XXH-4/4F series is a into six out type heat sealing cap type optical fiber cable connector box, suitable for Ф 7 -Ф 22 cable in and out, is suitable for aerial, wall-mounting applications, Pole-mounting ,differences in place.The box body and the base are sealed with the silicone rubber. The cable seal is sealed with a heat shrinkable tube.
Features

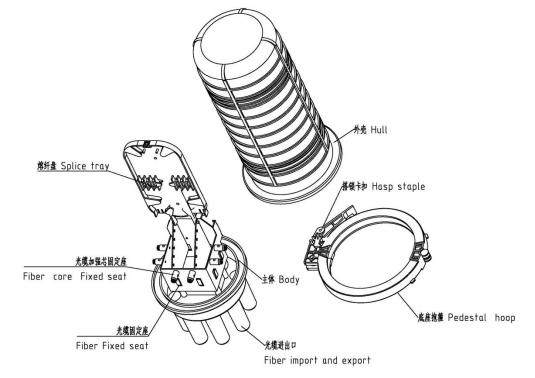

The fiber optic splice closure consists of cover、pedestal、splice tray、hoop、optical cable storage box.
The cable entry ports are sealed with heat shrinkable tube.

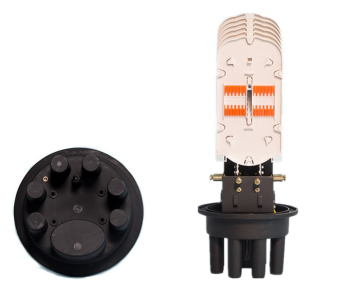

This is single fiber splice closure, it provide with one elliptical port and 6 round ports.The elliptical port, which can hold two stick optical cables.
The case body is made from imported high-intensity engineering plastics(PP) and formed the shape with mould plastics under high pressure. With the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
Equipped with air - core and installation
Accessories
1. fixture for fixing on the pole
2. branch card
3. heat shrinkable tube
4. hoop
5. seal ring
6. heat shrinkable sleeve
7. nylon tie
8. earthing wire
9. adjustable retainer for fixing on the pole
10. marking not
11. sand paper
12. exposed wire protective sleeve
13. fixture for fixing on the wall
Model | Description | Size | Package | Weight/ carton |
SPFC-NV-96H-4/4F | Fiber Closure Vertical type96 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing type F | Φ230×440mm | 540*485*465/4PCS | 12.5KG/4个 |
If you need more customized services, please contact us.
