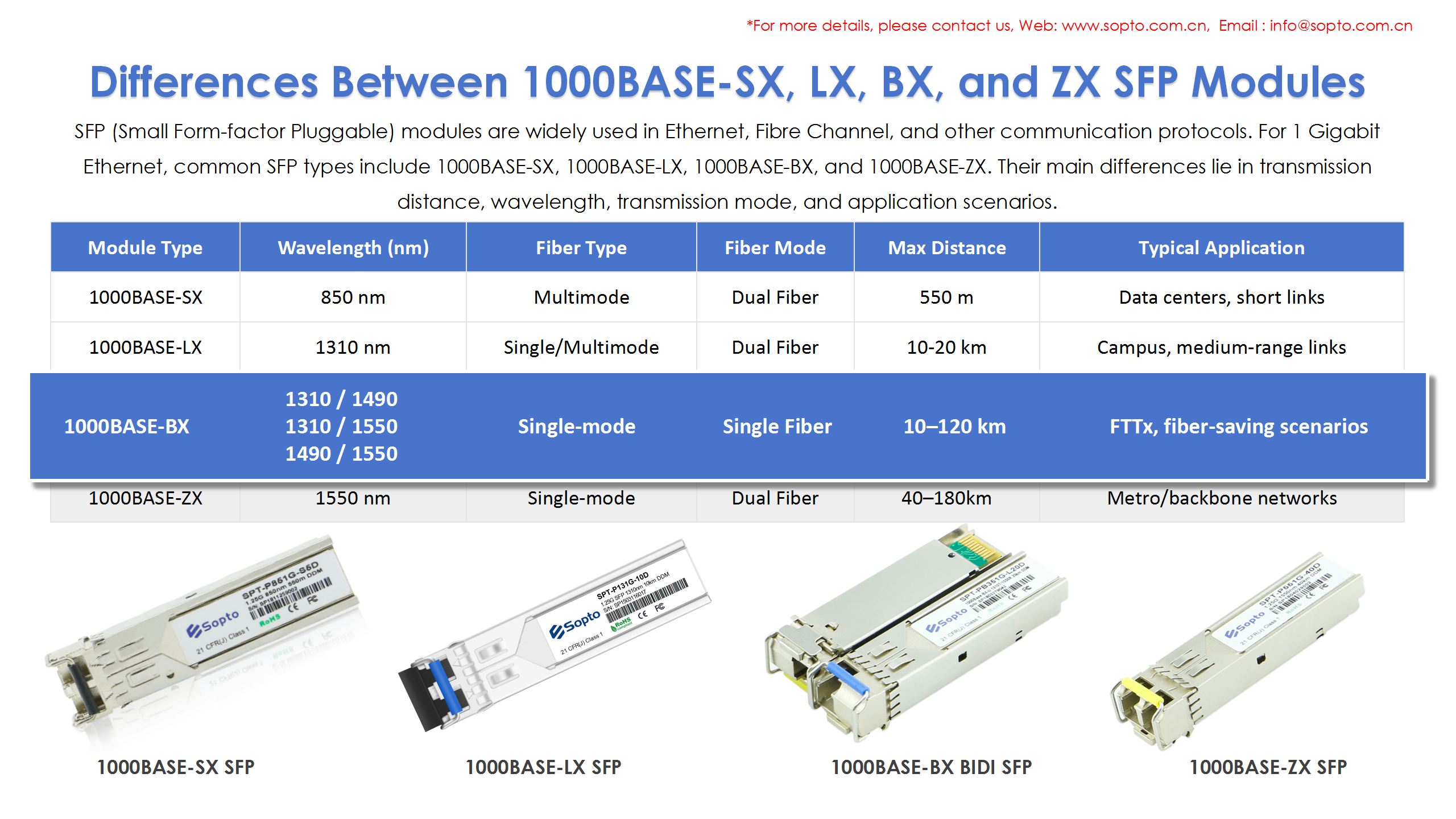

SFP (Small Form-factor Pluggable) modules are widely used in Ethernet, Fibre Channel, and other communication protocols. For 1 Gigabit Ethernet, common SFP types include 1000BASE-SX, 1000BASE-LX, 1000BASE-BX, and 1000BASE-ZX. Their main differences lie in transmission distance, wavelength, transmission mode, and application scenarios.
1. 1000BASE-SX (Short Wavelength)
Wavelength: 850 nm
Fiber Type: Multimode Fiber (MMF)
Common Core Sizes: OM1, OM2, OM3, OM4
Distance:
OM1 (62.5/125μm): Up to 275 meters;
OM2 (50/125μm): Up to 550 meters;
OM3: 300 meters or more
Application: Short-distance connections in data centers, intra-building links
Features: Low cost and power consumption; suitable for short-range multimode transmission
2. 1000BASE-LX (Long Wavelength)
Wavelength: 1310 nm
Fiber Type: Primarily Single-mode Fiber (SMF), also supports MMF with Mode Conditioning Patch Cord
Distance:
SMF: 10 -20km;
MMF (with patch cord): Up to 550 meters
Application: Campus networks, metro networks, medium-distance backbone transmission
Features: Cost-effective and versatile; ideal for medium-range connections
3. 1000BASE-BX (Bidirectional)
Wavelength:
BX-U (Upstream): TX 1310 nm, RX 1490 nm；TX 1310 nm, RX 1550 nm
BX-D (Downstream): TX 1490 nm, RX 1310 nm；TX 1550 nm, RX 1310 nm
Fiber Type: Single-mode Fiber (SMF), single-strand bidirectional transmission
Distance: 10 km, 20 km, 40 km or longer depending on model
Application: FTTx, fiber-to-the-home/desk/floor scenarios with limited fiber resources
Features:
Transmits and receives over a single fiber strand, saving fiber infrastructure
Must be used in matched pairs (one BX-U and one BX-D)
4. 1000BASE-ZX (Extended Reach)
Wavelength: 1550 nm
Fiber Type: Single-mode Fiber (SMF)
Distance: Typically 70 km; up to 80 km or even 100 km with high-performance models
Application: Long-distance backbone, metropolitan area networks (MAN), carrier networks
Features:
Requires higher optical power transmitters and more sensitive receivers
May need optical attenuators to prevent receiver overload over short distances
