With the rapid development of FTTH networks, 5G infrastructure, and data communication systems, bend-insensitive optical fiber has become increasingly important. Among the most commonly used fiber types today are G.657A1 and G.652D fibers.
G.657A1 optical fiber is designed to provide better bending performance while maintaining compatibility with traditional G.652 single mode fiber. It is widely used in FTTH access networks, indoor cabling, and high-density fiber installations.
What is G.657A1 Fiber?
G.657A1 Optical Fiber
G.657A1 Optical Fiber is a bend-insensitive single mode fiber standardized by the ITU-T G.657 recommendation.
Compared with standard G.652D fiber, G.657A1 fiber provides:
● Lower bending loss
● Better flexibility
● Easier installation in limited spaces
● Full compatibility with G.652D networks
It supports operation at:
● 1310nm
● 1550nm
● 1625nm wavelengths
Main Features of G.657A1 Fiber
1. Excellent Bending Performance
G.657A1 fiber can tolerate smaller bending radius than G.652D fiber, reducing signal attenuation during installation.
Typical minimum bending radius:
● G.652D: 30mm
● G.657A1: 10mm
This makes it ideal for:
● Fiber distribution boxes
● Indoor cabling
● FTTH drop cable routing
● High-density ODF systems
2. Fully Compatible with G.652D
One of the biggest advantages of G.657A1 fiber is seamless compatibility with existing G.652D infrastructure.
Network operators can directly splice G.657A1 with G.652D without significant transmission issues.
3. Low Attenuation
Typical attenuation values:
● ≤0.35 dB/km @1310nm
● ≤0.21 dB/km @1550nm
This ensures stable long-distance transmission.

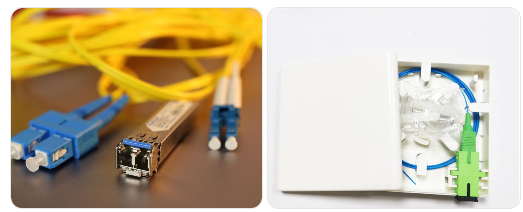

Applications of G.657A1 Fiber
G.657A1 fiber is widely used in:
● FTTH access networks
● Fiber patch cords
● Indoor optical cables
● Fiber distribution frames
● Telecom access networks
● Data center cabling
Its flexibility greatly simplifies installation in narrow environments.

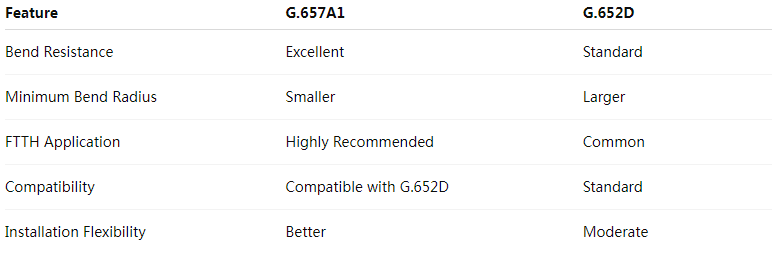

G.657A1 vs G.652D
G.657A1 optical fiber combines excellent bending performance with full compatibility to traditional G.652D networks. It is one of the best choices for modern FTTH deployment and high-density fiber cabling systems.
For telecom operators, ISPs, and fiber optic cable manufacturers, G.657A1 fiber offers improved installation efficiency and stable optical performance.
Tags : G.652D fiber, G.657A1 fiber，G.657A2 fiber
