As fiber optic networks continue expanding worldwide, network installers increasingly require optical fibers with superior bending performance. G.657A2 Optical Fiber has become one of the most popular solutions for FTTH and indoor fiber cable applications.
Compared with G.657A1 and G.652D fibers, G.657A2 provides even better bend resistance and installation flexibility.
What is G.657A2 Fiber?
G.657A2 fiber is an enhanced bend-insensitive single mode fiber developed for demanding installation environments.
It supports extremely small bending radius while maintaining low signal loss.
Main advantages include:
● Ultra-low bending loss
● Flexible cable routing
● Stable transmission performance
● Easy indoor installation
Why G.657A2 Fiber is Important
Traditional single mode fibers may suffer attenuation when bent sharply inside buildings or distribution boxes.
G.657A2 fiber solves this problem by significantly reducing macro bending loss.
This is especially important for:
● FTTH home installation
● Fiber wall outlets
● Patch cords
● Compact telecom cabinets
● Fiber management systems
Key Features of G.657A2 Fiber

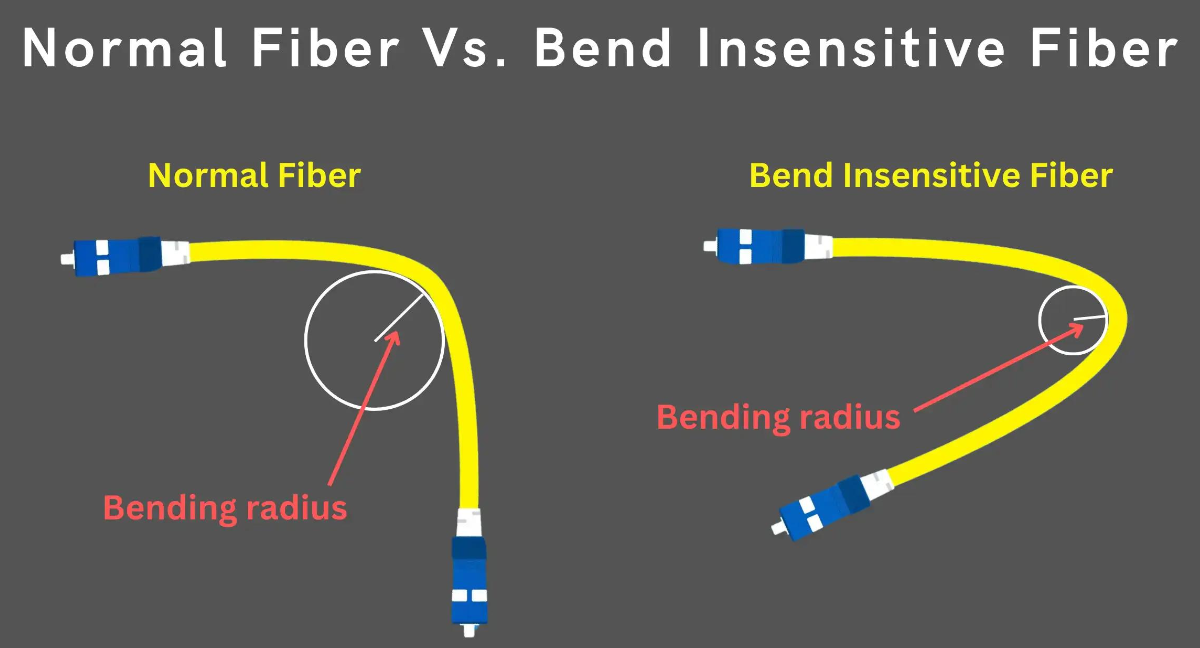

1. Superior Bend Insensitivity
G.657A2 fiber supports much smaller bend radius than conventional fibers.
Typical minimum bending radius:
● G.652D: 30mm
● G.657A1: 10mm
● G.657A2: 7.5mm
This allows easier cable management in tight spaces.
2. Reliable Transmission Performance
Despite improved flexibility, G.657A2 still maintains excellent optical performance at:
● 1310nm
● 1550nm
● 1625nm
3. Ideal for FTTH Networks
G.657A2 is widely used for:
● FTTH drop cables
● Indoor fiber patch cords
● Fiber terminal boxes
● Fiber wall outlets
● Telecom indoor wiring
G.657A2 vs G.657A1
G.657A2 optical fiber is an ideal solution for modern FTTH and indoor fiber optic installations. Its excellent bend resistance helps reduce installation difficulty and improve long-term network reliability. For telecom operators and fiber cable manufacturers, G.657A2 provides outstanding flexibility and performance for next-generation optical networks.
