G.652D Optical Fiber is one of the most widely used single mode optical fibers in telecom networks worldwide.
It is commonly deployed in:
● Long-distance transmission
● Metropolitan area networks
● Backbone fiber networks
● Data communication systems
Due to its excellent transmission characteristics and cost-effectiveness, G.652D remains an industry standard.
What is G.652D Fiber?
G.652D fiber is a low water peak single mode optical fiber standardized by ITU-T.
It supports transmission over the full wavelength range from 1260nm to 1625nm.
Compared with older G.652 fibers, G.652D offers:
● Lower attenuation
● Better wavelength performance
● Improved transmission capacity
Main Features of G.652D Fiber
1. Low Attenuation
Typical attenuation:
● ≤0.36 dB/km @1310nm
● ≤0.22 dB/km @1550nm
Low attenuation helps support long-distance communication.
2. Wide Wavelength Support
G.652D supports:
● O-band
● E-band
● S-band
● C-band
● L-band
This makes it suitable for CWDM and DWDM system.
3. Excellent Compatibility
G.652D is compatible with most telecom transmission equipment and optical network systems.
It is widely adopted in:
● Telecom operator
● ISP
● Data center
● Enterprise network
Applications of G.652D Fiber
Typical applications include:
● Backbone optical network
● Metro transmission system
● Long-haul communication
● Optical access network
● Data center interconnection
● FTTH feeder cable

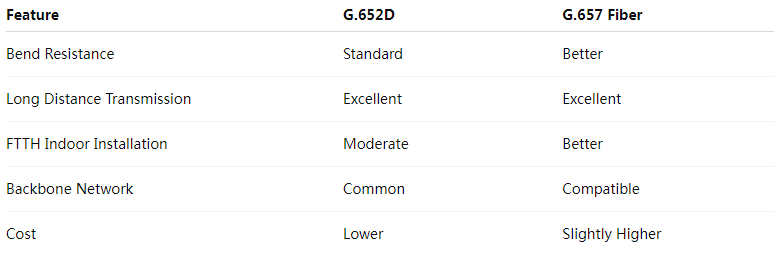

G.652D vs G.657 Fiber
G.652D optical fiber remains a core solution for telecom and data transmission networks. With low attenuation, broad wavelength support, and strong compatibility, it continues to be widely used in backbone and access network infrastructure worldwide. For fiber optic cable manufacturers and telecom operators, G.652D provides reliable and cost-effective optical transmission performance.
