In modern enterprise networking, data center cabling and industrial Ethernet deployment, network engineers often face a common dilemma: enterprise switches reserve abundant optical SFP/SFP+/QSFP slots, but lack enough RJ45 electrical ports for terminal access. Purchasing extra access switches or standalone fiber media converters will greatly increase networking cost and cabinet space burden. Here is where RJ45 copper SFP transceiver module becomes the most cost-effective networking solution.
Different from traditional fiber optical transceivers, copper SFP modules adopt standard switch optical port packaging on one end and RJ45 copper cable interface on the other end. It converts optical slots to universal Ethernet electrical ports instantly, supporting plug-and-play copper cabling without fiber fusion, optical testing or extra network equipment. This article covers all key specs, speed grades, cable standards, compatibility tips and application guides for full-series copper transceiver modules, helping network integrators and IT managers pick the perfect copper module for customized networking projects.

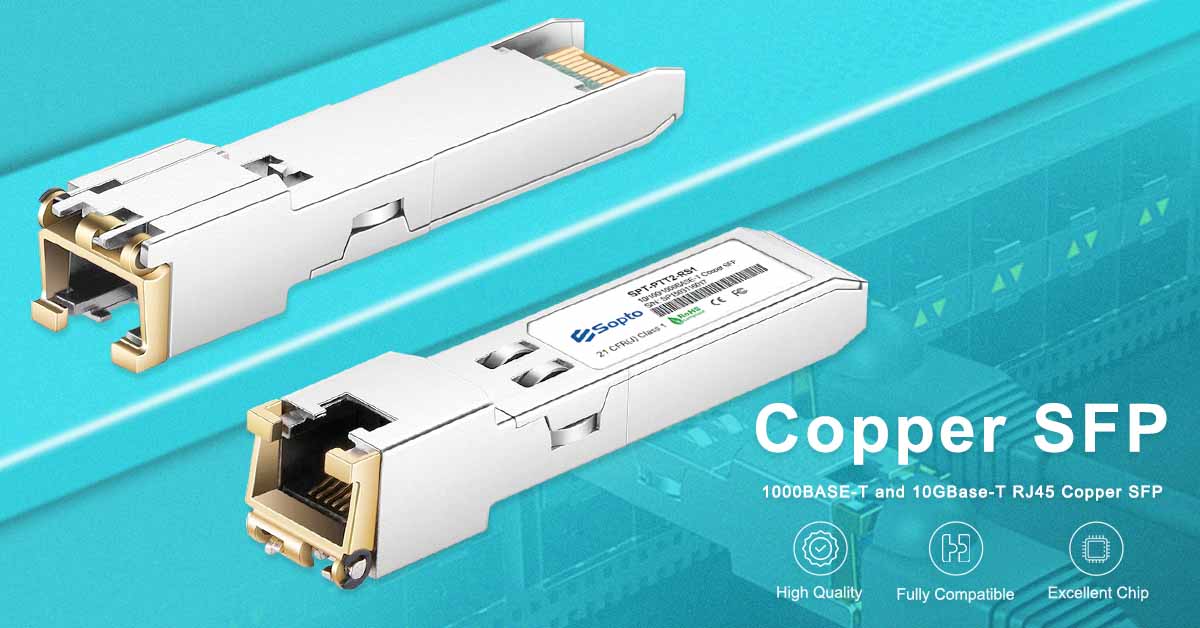

What is an RJ45 Copper SFP Transceiver Module?
A copper transceiver is a PHY-chip integrated electro-conversion module compliant with IEEE Ethernet standards. It fits mainstream switch optical slots including SFP, SFP+, SFP28, QSFP+ and QSFP28. Instead of transmitting optical signals via fiber patch cords, it transmits electrical data via standard Cat5/Cat5e/Cat6/Cat6a/Cat7 Ethernet cables.
Compared with external media converters, embedded copper SFP modules feature better stability, lower failure rate, simpler wiring and unified switch management, which has become the mainstream port expansion solution for 2025 enterprise and data center networking.
Main Classification By Package Form Factor
● SFP Copper Module (100Mbps/1Gbps)
● SFP+ Copper Module (10Gbps)
● SFP28 Copper Module (25Gbps)
● QSFP+ Copper Module (40Gbps)
● QSFP28 Copper Module (100Gbps Quad-port RJ45)
Full Speed Grade & Standard Specs of Copper Transceiver Module
Copper modules are classified by transmission rate, each with fixed IEEE protocol, cable limitation and transmission distance. Below is the categorized buying guide for hot-selling copper SFP transceivers:
1. 10/100BASE-T SFP 100M Copper Module
Designed for low-speed legacy network renovation, this 100Mbps copper SFP module supports 10/100 auto negotiation, works with Cat5 unshielded cable within 100 meters. Featured with ultra-low power consumption below 1W, it fits industrial monitoring, old building network upgrade and low-bandwidth IoT terminal access.
2. 10/100/1000BASE-T Gigabit SFP Copper Module (Best Seller)
The most widely used RJ45 copper module for enterprise LAN. Comply with IEEE 802.3ab standard, 1G full auto-speed adaptive, 100m max transmission via Cat5e common network cable. It supports Auto MDI/MDI-X cable auto-identification, compatible with Cisco, H3C, Juniper, Ubiquiti mainstream brand switches. Available in commercial temperature and industrial temperature models for outdoor cabinet harsh networking.
3. 10GBASE-T SFP+ 10G Copper Module
Ideal for short-range 10G rack server connection. This SFP+ copper transceiver reaches 10G high bandwidth, with clear distance limits: 55m via ordinary Cat6 cable, 100m via standard Cat6a shielded cable. It is backward compatible with 1G gigabit mode, realizing smooth network upgrade without replacing existing wiring infrastructure.
4. 25GBASE-T SFP28 25G Copper Module
Customized for new-generation 25G TOR data center architecture. The 25G copper module needs Cat6a/Cat7 high-grade shielded cable, supporting 30m short-distance transmission via Cat6a and 100m stable transmission via Cat7 shielded cable. It solves high-density server access demands for cloud computing rooms with low cabling cost.
5. 40G/100G Quad-port QSFP Copper Module
For high-bandwidth backbone port expansion: QSFP+ 40G copper module provides 4 independent 10G RJ45 ports, while QSFP28 100G copper module outputs 4*25G electrical ports. One single high-speed optical slot expands four high-speed electrical ports, maximizing switch port utilization for large IDC computer rooms.

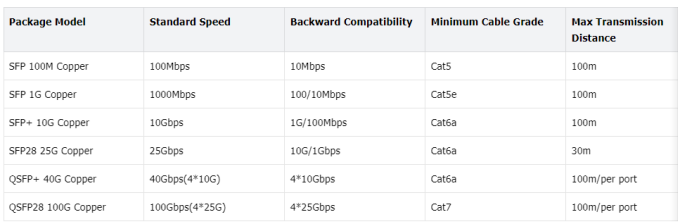

Universal Copper Transceiver Parameter Comparison Table
Key Performance Parameters You Must Check Before Purchase
1. Ethernet Cable Matching Standard
Cable grade directly decides transmission speed and stability. Low-speed 100M/1G copper modules work with common unshielded network cables, while 10G+ high-speed copper transceivers must adopt shielded Ethernet cables to avoid EMI signal loss in electromechanical working environments.
2. Operating Temperature Grade
● Commercial Grade: 0℃-70℃, for indoor air-conditioned server room
● Industrial Grade: -40℃-85℃, for outdoor cabinet, factory workshop, roadside monitoring cabinet
3. DDM Monitoring Support
Premium brand copper SFP modules reserve DDM digital diagnostic function, allowing network administrators to monitor real-time link status, module temperature and working voltage via switch backend, convenient for daily network operation and fault troubleshooting.
4. Brand Compatibility
All our copper transceiver modules support universal code matching, plug-and-play compatible with major global network brands, no manual code writing required, saving on-site deployment time.
Copper SFP Module VS Fiber Optical Module: Which To Choose?
Many network buyers confuse copper modules and fiber optical modules. We sort out applicable scenarios clearly:
Choose RJ45 copper transceiver: Short transmission distance within 100m, limited networking budget, existing massive copper network wiring, need quick port expansion, no fiber splicing equipment on site.
Choose Fiber optical transceiver: Transmission distance over 100m, strong electromagnetic interference site, ultra-long-distance campus/park cross-building networking.
Top Application Scenarios of Copper Transceiver Module
1. Enterprise switch optical port reuse and RJ45 electrical port expansion
2. Security IP camera centralized aggregation networking
3. Rack internal short-range connection for servers, NAS and storage devices
4. Industrial Ethernet switch port expansion for factory automation
5. Small & medium data center low-cost high-density terminal access
6. Old network renovation without rewiring fiber cables
As an economical, convenient and stable network conversion component, RJ45 copper SFP transceiver modules cover full rate from 100M to 100G, perfectly connecting optical switch ports and traditional copper Ethernet wiring. For short-range enterprise, industrial and data center networking projects, qualified copper modules cut down procurement, wiring and labor cost greatly compared with additional switches and media converters. Contact our team to get customized compatible copper transceiver bulk quotation and professional networking layout solution now. Email: [email protected] WhatsApp: +86 13751094939
