1.The short answer: Yes, but only with qualified Cat6a or Cat7 shielded twisted-pair cables.
Not all wiring supports full 100m 10Gbps performance. The maximum stable transmission distance directly depends on your cable grade, which we break down in detail below.
Many IT engineers mistakenly deploy Cat6 unshielded cables and face unstable links, packet loss, or speed locked at 1Gbps instead of 10Gbps. Standard Cat6 only delivers reliable 10G signals up to 55 meters, while Cat5e cannot sustain 10Gbps at all.

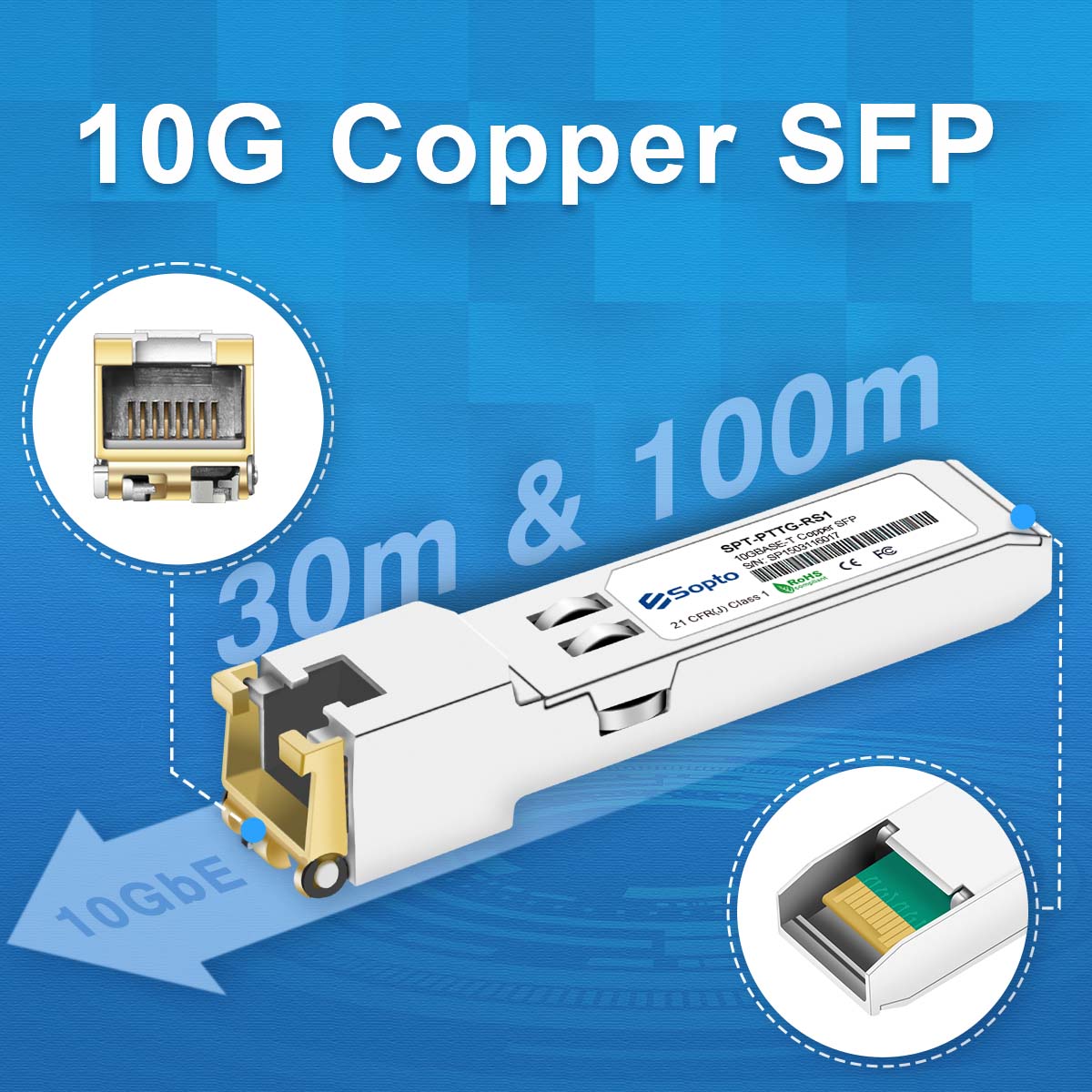

There are two mainstream 10GBASE-T SFP+ variants on the market:
30m short-reach models: Low power, for intra-rack server connections
100m full-reach models: Higher-performance DSP chip, supporting full 100m over Cat6a/Cat7 for inter-rack & office LAN links
2. Official IEEE Standard & Full Technical Specifications of 10GBASE-T SFP+
10GBASE-T SFP+ transceivers fully comply with IEEE 802.3an 10 Gigabit Ethernet over twisted pair, plus SFF-8431 SFP+ MSA standards for universal hot-pluggable compatibility.
Core Standard Spec List
● Form Factor: SFP+ (fits all standard SFP+ switch slots)
● Transmission Speed: 10Gbps full-duplex; auto-backward compatible with 1G/100Mbps
● Encoding: PAM-16 signal processing

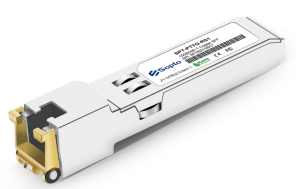

● Interface: Gold finger SFP+ plug + integrated RJ45 copper port
● Power Consumption:
Short-reach 30m model: 2.5W–3.5W
Full 100m Cat6a model: 3.5W–4.5W (higher power than fiber SFP+ due to built-in PHY DSP chip)
● Operating Temperature Grades:
Commercial grade: 0℃ ~ +70℃ (indoor server rooms, office cabinets)
Industrial grade: -40℃ ~ +85℃ (factory, outdoor monitoring cabinets)
● Monitoring Function: DDM/DOM digital diagnostic (read module temp, voltage, link status via switch CLI)
● Compliance: RoHS, FCC, CE certification
● Hot-Swap Support: Plug/unplug without powering down network devices
3. Cable Category Distance Breakdown (Critical Deployment Rule)

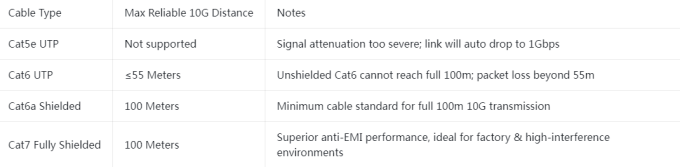

This table defines the maximum stable 10Gbps distance for each cable type with 100m-reach 10GBASE-T SFP+ modules:
Key reminder: 30m short-reach 10G SFP+ modules only guarantee stable 10G within 30m, even with Cat6a cables—do not mix short-reach transceivers for long-distance wiring projects.
4. Core Built-in Features of 10GBASE-T SFP+ Copper Transceivers
⑴ Auto-Negotiation & Multi-Rate Support
Automatically negotiate 10G/1G/100M speed and full/half duplex with servers, NAS storage, PCs and access switches, no manual port configuration required.
⑵ Auto MDI/MDI-X Cross Cable Detection
Eliminate the need to separate straight-through and crossover patch cords; any standard RJ45 cable works instantly.
⑶ DDM Digital Diagnostic Monitoring
Network administrators remotely monitor real-time module temperature, supply voltage, link loss and fault alarms via switch management platforms, simplifying daily O&M and fault location.
⑷ EMI Shielded Metal Housing
All-metal casing reduces electromagnetic interference, critical for industrial and dense rack deployments with multiple high-power modules.
⑸ Low Latency DSP Chipset
Premium 100m-reach models adopt advanced signal processing chips to compensate cable attenuation, ensuring zero packet loss at full 100m Cat6a links.
5. Advantages & Drawbacks of 10G Copper SFP+ Modules
Key Advantages
⑴ Reuse idle SFP+ optical ports on core switches, no extra standalone media converters needed
⑵ Utilize existing Cat6a/Cat7 copper cabling infrastructure, huge cost savings vs fiber deployment
⑶ Plug-and-play installation: No fiber splicing, optical power testing or specialized construction tools
⑷ Backward compatible with legacy 1G/100M devices, smooth network upgrade without full rewiring
⑸ Simple cable management: RJ45 patch cords are cheaper, easier to terminate and maintain than fiber jumpers
Main Limitations
⑴ Power consumption 3–4x higher than 10G fiber SFP+ modules; dense deployment requires extra cabinet ventilation
⑵ Strict cable grade restrictions: Cat5e and ordinary Cat6 cannot support full 10G long-distance links
⑶ Vulnerable to EMI interference near high-power electrical equipment; shielded cables are mandatory in factories
⑷ Hard ceiling of 100m maximum distance, unsuitable for cross-building campus backbone connections
6. Top Real-World Application Scenarios
⑴ Server & NAS Intra-Rack Interconnection
Short-range 10G links between rack servers, storage arrays and hypervisors; 30m short-reach modules work perfectly for rack internal wiring.
⑵ Enterprise Core Switch RJ45 Port Expansion
Core layer switches often have abundant SFP+ slots but limited electrical ports; 10GBASE-T SFP+ converts optical ports to high-speed 10G RJ45 for office workstations.
⑶ Medium-Sized Data Center TOR Access
Cost-effective 10G access for small and medium IDCs, replacing expensive fiber top-of-rack cabling.
⑷ Security Monitoring Central Aggregation
High-bandwidth IP camera clusters requiring 10G uplinks to aggregation switches, using existing Cat6a monitoring cabling.
⑸ Industrial Automation High-Speed Ethernet
Industrial-grade wide-temperature 10G SFP-T modules for factory PLC, machine vision and production line high-speed data transmission.
7. Complete Deployment Best Practices
① Match Module Reach to Cabling Distance
≤30m intra-rack links: Choose low-power 30m 10GBASE-T SFP+
30–100m inter-rack/office links: Select full 100m Cat6a-supported transceivers
② Standardize Cable Infrastructure
Always deploy shielded Cat6a or Cat7 patch cords for all 10G copper links; avoid unshielded Cat6 for runs over 50m.
③ Optimize Heat Dissipation
When deploying 4+ 10G copper SFP+ modules on one switch, reserve empty slots between modules and ensure front-to-back cabinet airflow to prevent overheating shutdowns.
④ Avoid EMI Interference
Route Cat6a shielded cables away from power distribution boxes, motors and fluorescent lighting; ground patch panels for stable signal transmission.
⑤ Enable DDM Monitoring
Turn on DDM function on switches to track module temperature continuously and pre-empt overheating failures.
⑥ Do Not Mix Cable Types
Do not cascade Cat6 and Cat6a cables in one 10G link; mixed wiring causes severe signal attenuation and random link drops.
8. Common 10GBASE-T SFP+ Issues & Step-by-Step Troubleshooting
Issue 1: Link stuck at 1Gbps instead of 10Gbps
Root Cause: Using Cat5e / unshielded Cat6 cable over 55m; cable damage; low-quality patch cord
Fix: Replace with certified Cat6a shielded cable; shorten cable length to within rated distance.
Issue 2: Module not detected by the switch
Root Cause: Brand compatibility coding mismatch; loose gold finger insertion; faulty SFP+ slot
Fix: Use brand-compatible coded 10G SFP-T; re-seat module firmly; test on another SFP+ port.
Issue 3: Frequent link flapping & CRC packet errors
Root Cause: EMI interference; cable exceeds maximum distance; module overheating
Fix: Switch to fully shielded Cat7; reduce cable length; improve cabinet cooling.
Issue 4: Module overheating and automatic port shutdown
Root Cause: Dense deployment without ventilation; blocked cabinet air vents
Fix: Leave blank slots between copper modules; clean fan filters; install cabinet cooling fans.
Issue 5: DDM cannot read module diagnostic data
Root Cause: Switch firmware outdated; low-end module without DDM function
Fix: Upgrade switch OS; select DDM-supported 10GBASE-T SFP+ transceivers.
9. Compatibility Checklist for Major Switch Brands
Standard MSA-compliant 10GBASE-T SFP+ modules support plug-and-play operation with mainstream network hardware:
● Enterprise: Cisco, H3C, Huawei, Arista, Juniper
● SMB & Routing: Mikrotik, Ubiquiti UniFi, TP-Link, D-Link
● Storage & Servers: Dell, HP, Supermicro, QNAP NAS
Custom coded versions are available for locked OEM switches to eliminate unrecognized module alarms.
10. Final Buying & Deployment Takeaways
10GBASE-T SFP+ copper transceivers are the most cost-effective solution for short-to-medium range 10G Ethernet connections under 100 meters. To reliably reach the full 100m rated speed, two non-negotiable requirements must be met:
● Purchase full 100m-reach 10G SFP+ copper modules (not 30m short-reach variants)
● Deploy certified shielded Cat6a or Cat7 twisted-pair cabling
For intra-rack links under 30 meters, low-power short-reach 10G copper modules balance performance and heat output. For industrial, long-distance office or high-interference factory environments, industrial wide-temperature Cat7-supported 100m 10GBASE-T SFP+ is the optimal choice.
If you need bulk compatible 10GBASE-T SFP+ copper transceivers (30m / 100m commercial & industrial grades), contact our technical team for free compatibility testing, datasheet downloads and competitive wholesale pricing. Our engineering team can also provide customized cabling layout suggestions for your data center or enterprise LAN project. Email: [email protected]。WhatsApp: +86 13751094939
