Optimize Your Network Cabling with 19-Inch Rack Mount Fiber Optic Patch Panel
A reliable and well-organized fiber cabling system is the backbone of every high-performance data center, telecom room, and enterprise network. The 19-inch rack mount fiber optic patch panel is engineered to deliver standardized, tidy, and secure fiber termination, distribution, and management. Designed to fit all standard 19-inch network cabinets, this ODF fiber patch panel eliminates messy cable layouts, reduces optical signal loss, and simplifies daily installation, testing, and maintenance work.
Whether you are building FTTH distribution networks, enterprise campus systems, or large IDC data center projects, our customizable rack mount fiber patch panel provides a scalable and cost-effective cabling solution for diverse optical fiber networking scenarios.

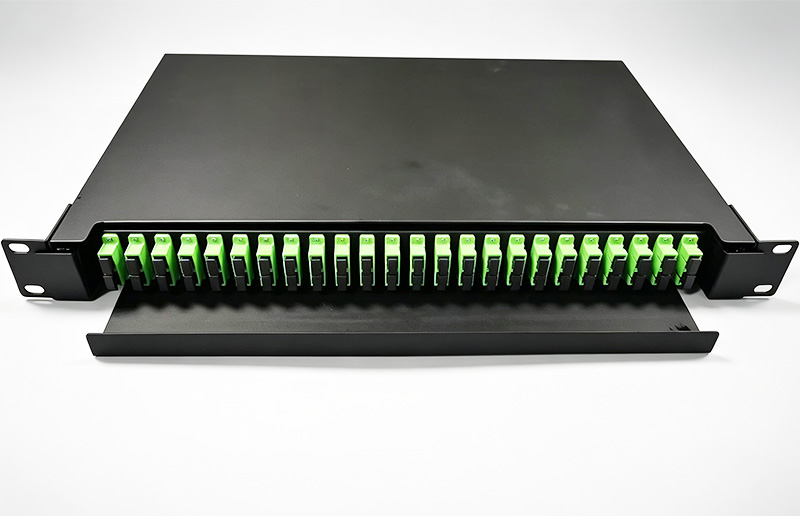

Versatility is one of the core strengths of our 19-inch fiber optic patch panel. It supports flexible installation of LC, SC, FC, and ST fiber adapters, fully compatible with single-mode and multi-mode fiber cables, and applicable for both UPC and APC polishing types. Users can freely configure port combinations according to actual project requirements.
High-density LC ports meet 400G high-speed transmission and data center intensive wiring needs; common SC ports are ideal for mainstream backbone network and FTTH access; FC and ST ports with stable locking structure perfectly adapt to industrial communication and long-distance transmission equipment. This universal compatibility makes the rack fiber patch panel suitable for almost all optical network wiring projects.
We offer a full series of rack mount fiber patch panels with core counts ranging from 12 cores to 144 cores, covering 1U, 2U, and 4U rack heights to meet different cabling density requirements. From small office network wiring and medium enterprise computer room deployment to large data center high-density fiber distribution, our products can match all usage scenarios.
To meet personalized brand and project demands, we provide one-stop customized solutions:
● Custom Logo Printing: Support personalized brand logo printing on the panel surface to enhance product brand recognition
● Custom Housing Color: Optional black, gray, white and customized spray paint colors to match different cabinet styles
● Pre-terminated Processing: Pre-install fiber pigtails and adapters, realizing plug-and-play use and saving on-site construction time
● Full Assembly Customization: Provide fully assembled finished products to reduce on-site wiring and assembly workload

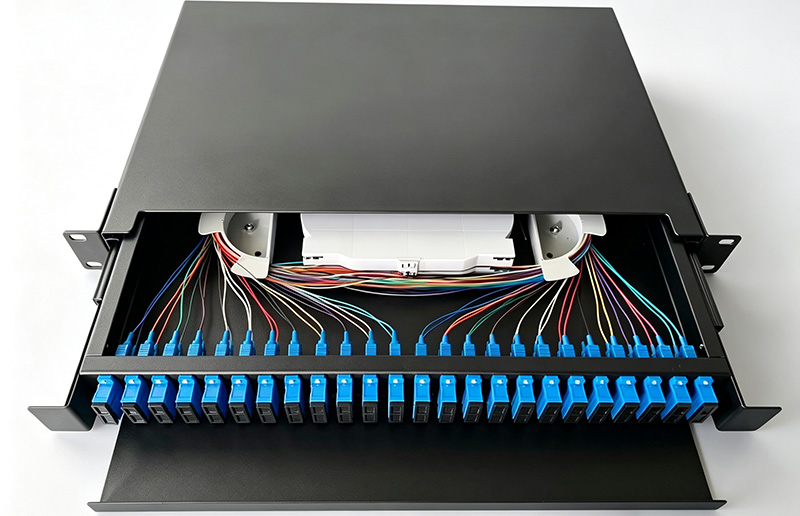

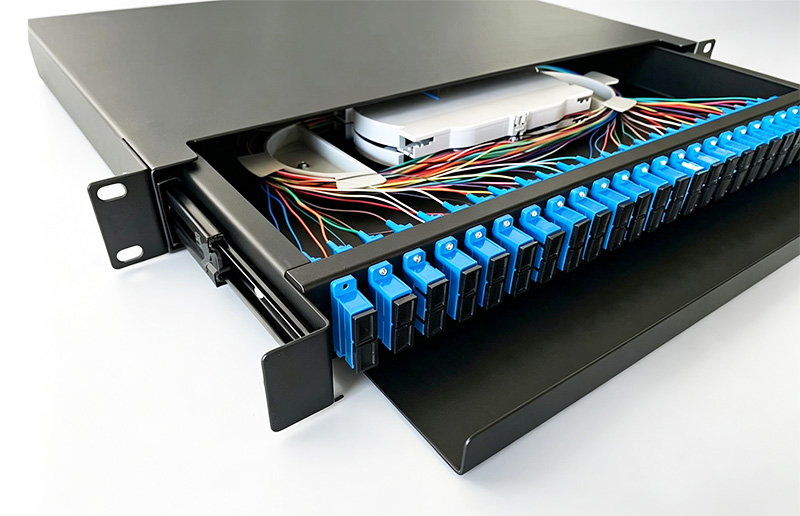

Our 19-inch fiber optic patch panel adopts a practical slide-out drawer structure, equipped with high-precision silent sliding rails. The entire splice tray can be fully pulled out of the cabinet, allowing technicians to complete fiber splicing, cable testing, fault inspection and cable replacement operations without disassembling the whole device.

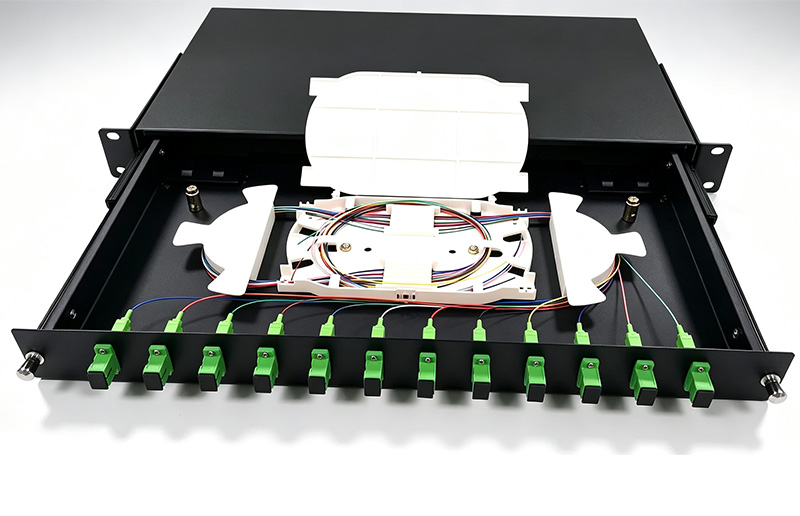

The interior is equipped with professional fiber management accessories including integrated splice trays, cable fixing clamps and routing guide grooves. It strictly controls the fiber bending radius, effectively avoiding signal attenuation caused by excessive fiber bending, and standardizes internal cable routing to keep the cabinet wiring neat, orderly and easy to manage.
Constructed with high-quality thickened cold-rolled steel plates, the rack mount ODF patch panel features excellent hardness and structural stability. The surface adopts electrostatic matte spraying technology, with outstanding anti-rust, anti-corrosion, scratch-resistant and dust-proof performance, adapting to long-term 24/7 stable operation in indoor cabinet environments.
Reinforced mounting ears ensure firm installation on standard 19-inch racks, and the optimized sliding rail structure supports thousands of push-pull cycles without jamming. All internal insulating parts adopt flame-retardant materials, which greatly improves the safety and durability of network equipment operation.
Wide Application Scenarios
Thanks to its standard size, strong compatibility and high practicability, our 19-inch rack mount fiber optic patch panel is widely used in multiple fields:
● Data center IDC machine rooms and cloud computer rooms
● Enterprise, campus, hospital and government office network rooms
● FTTH fiber-to-the-home distribution and community network wiring
● Intelligent building, security monitoring and weak current engineering
● Telecom backbone communication and industrial optical transmission projects
As a professional fiber optic communication equipment manufacturer, we focus on providing high-quality and cost-effective fiber cabling products for global buyers. All our custom fiber patch panels comply with international industry standards, with strict factory inspection before shipment to ensure stable product performance and consistent quality.
We support flexible MOQ for wholesale and customized orders, with fast production and short delivery cycles. Whether you are a network engineering contractor, system integrator or fiber hardware distributor, we can provide professional product solutions, technical support and competitive factory prices.
The 19-inch rack mount fiber optic patch panel is an essential core device for modern optical network cabling. It integrates fiber termination, distribution and protection functions, effectively improves network wiring efficiency, and reduces later operation and maintenance costs. With universal connector compatibility, rich customization options and reliable industrial quality, it is the preferred fiber management solution for various optical network projects.
Contact us now to get detailed product specifications, dimension drawings and exclusive wholesale quotation! Email: [email protected] WhatsApp: +86 13751094939
