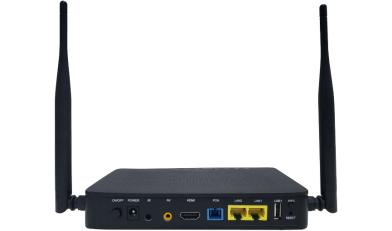

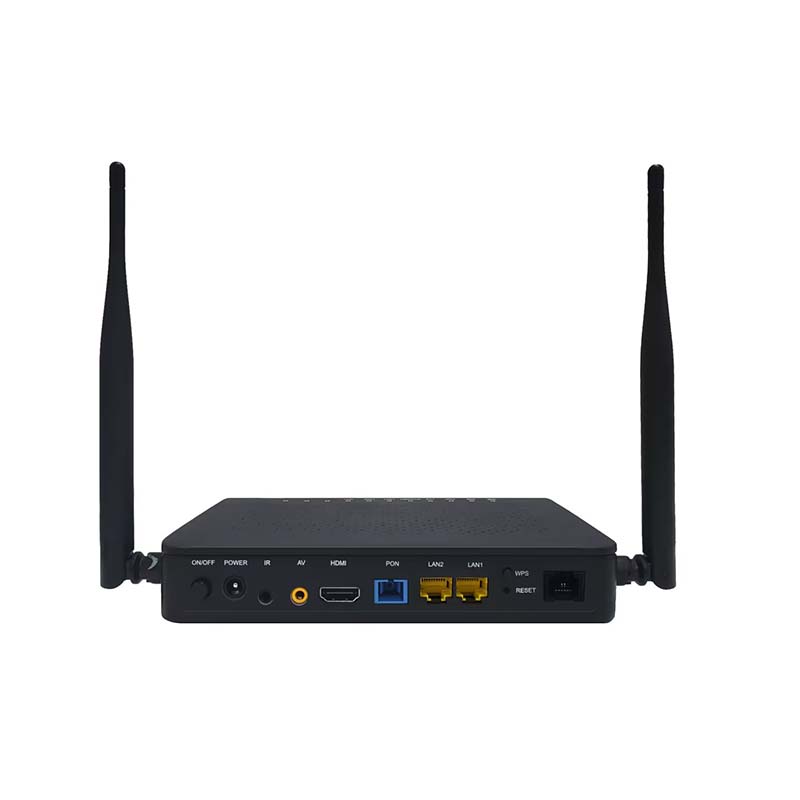

    SPU-GE23011W-H product include ONU modem and OTT/IPTV modem which are designed for fulfilling FTTH ultra-broadband access requirement of home and SOHO users. To meet subscribers demand for live TV and on demand.
  • Contact Us
  • SPU-GE23011W-H product include ONU modem and OTT/IPTV modem which are designed for fulfilling FTTH ultra-broadband access requirement of home and SOHO users. To meet subscriber's demand  for live TV and on demand. The ONT supports one GPON optical interface and one Gigabit-Ethernet port 10/100/1000Base-TX, The Boxes are based on the mature Gigabit GPON technology, which have high ratio of performance to price, the technology of 802.11b/g/n Wifi, Layer 2/3. High quality Voip as well,They are highly reliable and easy to maintain, with guaranteed QoS for different service.They are fully compliant with technical regulations such as ITU-T G.984 GPON standards connections.



    Features of ONU + OTT + Wifi

    GPON Hardware Specifications

    Protocol Standard

    GPON:ITU-T G.984.1/2/3/4standard

    VOIP:Support G.711u/aG.729G.722 and speech processing so onSupport SIP Protocol

    WIFI:Support 2.4G 11b/g/n technical standards

    GPON Speed



    EPON Speed




    One 10/100/1000m adapts to the RJ45 interface (Auto MDI/MDIX)

    One 10/100m adaptive RJ45 interface (Auto MDI/MDIX)

    1 10/100m docking OTT/IPTV adapts to the LAN socket (Auto MDI/MDIX)

    1 GPON interface (SC/UPC), Support class B + standard

    A USB 2.0 interface

    300Mbps wifi antenna


    Reset Reset button

    WIFI control button

    The WPS button


    Power indicator(POWER)

    The PON status indicator (PON)

    Light signal alarm indicator (LOS)

    Broadband status indicator (Internet)

    Network port status indicator (LAN)

    Wlan status indicator (WiFi)

    OTT link state indicator(STB)

    Power Consumption

    10W DC 12Vpower adapter

    GPON Software Specifications

    GPON feature


    Compliant with ITU-T G.984 GPON standard

    FEC (Forward Error Correction) in both upstream and downstream

    Dynamic bandwidth status report

    802.1p mapper for upstream

    QoS scheduling based on SP or WRR between GEM port and T-CONT

    Downstream multicast GEM port and broadcast GEM port

    Ethernet Feature


    Support Auto-speed and MDI/MDIX auto detection

    Internal L2 switch

    Advanced data processing function, such as VLAN label processing,

    flow classification and packet filtering.

    Gateway Feature

    WAN support Routerand Bridge mode

    Router mode supports PPPoE/DHCP/ static IP

    WAN support InternetVoIPIPTVTR069other

    LAN supports DHCP and static IP

    Support NAT

    Support UPnP

    WIFI feature

    Compatible with IEEE 802.11 b/g/n, maximum support 300Mbps

    Internal 1xoutside antenna and built-in mini antenna

    Single frequency 2.4GHz

    WEPWPA-PSKWPA2-PSK and other encryption

    OAM feature


    Standard OMCI (the embedded operations channel)compliant with ITU-T G.988

    Compliant with TR-069 standard,Compliant with TR-098TR-140 terminal integrated

    management interface specification,

    configuration of all kinds of services, including EthernetVoIPWLAN, etc

    Alarm reporting, performance monitoring

    Remote software upgrade through OMCI

    Ordering information

    Product Name

    Product Model




    ONU+OTT modem 1GE and 1FE port, 1 HDMI and AV port support 2.4G wifi

    Note: If you need more customized services, please contact us.
