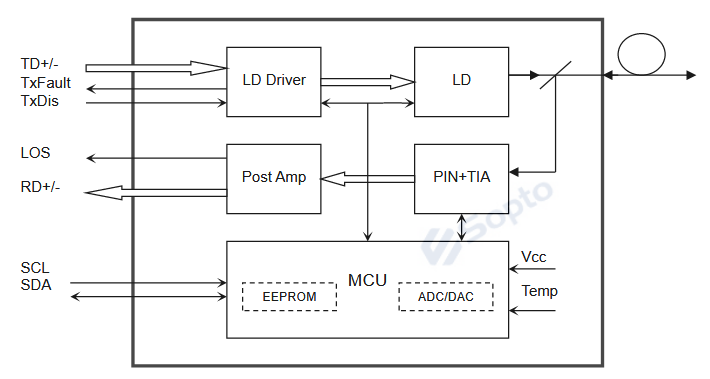

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections, a DFB laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For furtherinformation, please refer to SFP MSA.
Features
● Dual data-rate of 1.25Gbps/1.063Gbps operation
● 1310nm FP or 1490/1550nm DFB laser and PIN photo detector for 20km transmission
● Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptacle
● Digital Diagnostic Monitoring, Internal Calibration or External Calibration
● Compatible with SONET OC-24-LR-1
● Compatible with ROHS
● +3.3V single power supply
● Operating case temperature,
Standard: 0 to +70°C
Industral: -40 to +85°C
Applications
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Ordering information
1310nm TX / 1550 nm RX
SPT-PB351G-L10D, 1310nm Tx, 1.25Gbps, LC, 10km, 0°C~+70°C, With DDM
SPT-PB351G-S10D, 1310nm Tx, 1.25Gbps, SC, 10km, 0°C~+70°C, With DDM
SPT-PB351G-L20D, 1310nm Tx, 1.25Gbps, LC, 20km, 0°C~+70°C, With DDM
SPT-PB351G-S20D, 1310nm Tx, 1.25Gbps, SC, 20km, 0°C~+70°C, With DDM
SPT-PB351G-L10TD, 1310nm Tx, 1.25Gbps, LC, 10km, -40°C~+85°C, With DDM
SPT-PB351G-L20TD, 1310nm Tx, 1.25Gbps, LC, 20km, -40°C~+85°C, With DDM
1550nm TX / 1310 nm RX
SPT-PB531G-L10D, 1550nm Tx, 1.25Gbps, LC, 10km, 0°C ~ +70°C, With DDM
SPT-PB531G-S10D, 1550nm Tx, 1.25Gbps, SC, 10km, 0°C ~ +70°C, With DDM
SPT-PB531G-L20D, 1550nm Tx, 1.25Gbps, LC, 20km, 0°C ~ +70°C, With DDM
SPT-PB531G-S20D, 1550nm Tx, 1.25Gbps, SC, 20km, 0°C ~ +70°C, With DDM
SPT-PB531G-L10TD, 1550nm Tx, 1.25Gbps, LC, 10km, -40°C~+85°C, With DDM
SPT-PB531G-L20TD, 1550nm Tx, 1.25Gbps, LC, 20km, -40°C~+85°C, With DDM
1310nm Tx/1490nm Rx
SPT-PB341G-L10D, 1310nm Tx, 1.25Gbps, SC, 10km, 0°C ~ +70°C, DDM
SPT-PB341G-S10D, 1310nm Tx, 1.25Gbps, SC, 10km, 0°C ~ +70°C, DDM
SPT-PB341G-L20D, 1310nm Tx, 1.25Gbps, LC, 20km, 0°C ~ +70°C, DDM
SPT-PB341G-S20D, 1310nm Tx, 1.25Gbps, SC, 20km, 0°C ~ +70°C, DDM
1490nm Tx/1310nm Rx
SPT-PB431G-L10D, 1490nm Tx, 1.25Gbps, LC, 10km, 0°C ~ +70°C, DDM
SPT-PB431G-S10D, 1490nm Tx, 1.25Gbps, SC, 10km, 0°C ~ +70°C, DDM
SPT-PB431G-L20D, 1490nm Tx, 1.25Gbps, LC, 20km, 0°C ~ +70°C, DDM
SPT-PB431G-L20D1490nm Tx, 1.25Gbps, LC, 20km, 0°C ~ +70°C, DDM
Note:1. Default operating case temperature is 0 ~ 70°C. If you need -40 ~85°C products, please contact us.
2. If you need more customized services, please contact us,[email protected].
