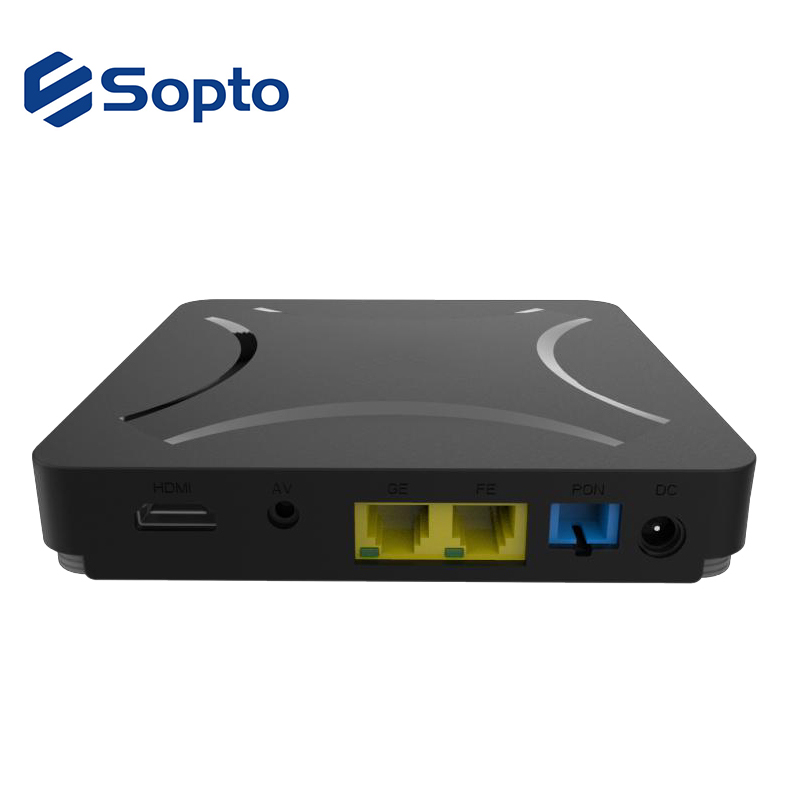

OTT WIFI ONU
SPU-GE2302W-H is an FTTH type OTT + ONU + WiFi three-in-one intelligent terminal developedby our company, which integrates ONU + WiFi intelligent gateway function and OTT intelligentset-top box function. And this product is not a simple splicing of several functional modules, but anintegrated design, which integrates the existing OTT set-top box module, ONU module, and WiFiimodule hardware into one. The single product can support live broadcast, VOD, and broadbandconvergence services . The product realizes integration, miniaturization, low cost, high bandwidth,high cost performance, simplifies product installation and commissioning and business opening, andgreatly reduces the complexity of product operation and maintenance costs.The SPU-GE2302W-H ONU module adopts GPON access technology, and the set-top box moduleadopts the RK3229 OTT chip solution that supports the ultra-high-definition blue light decoding.SPU-GE2302W-H integrates wireless function which meets 802.11 b/g/n technical standards. It hasbuilt-in high gain antenna and wireless transmission rate up to 300Mbps. It has the characteristics ofstrong penetrating power and wide coverage. It can provide users with more efficient datatransmission security.
Specification
Item
| Parameter | |
Specification of ONU part | ||
PON Interface | 1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/UPC single mode fiber 28dB Link loss and 20KM distance with 1:128 PON Throughput: Downstream 2.488Gbit/s; Upstream 1.244Gbit/s | |

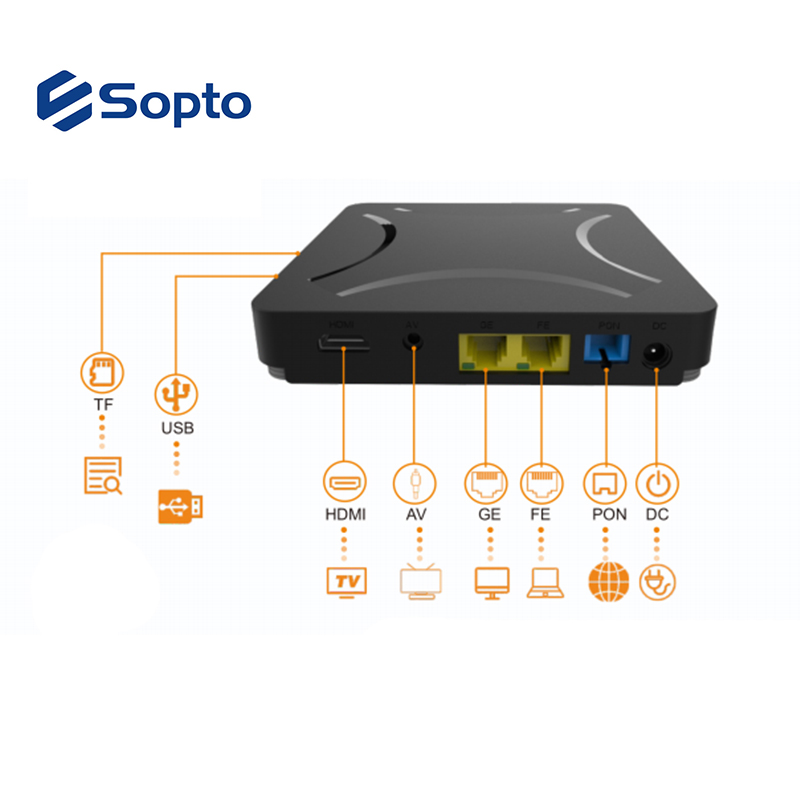

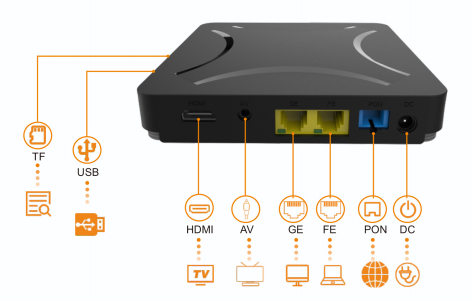

User Ethernet Interface | 1*10/100/1000M and 1*10/100M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance | |
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5~5dBm Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm | |
Software Features |
Provide Internet, IPTV service Support 802.11b/g/n standard wifi access Support OMCI+TR069 management method Support multiple multicast modes EMS network management based on SNMP Support IPv4/IPv6 Dual Stack Support multiple internet modes, DHCP/PPPOE/Static IP/Bridge WAN Support port forwarding Support L3 routing | |
Specification of OTT part | ||
Hardware Features | CPU | RK3229 32bits Quad Core 1.46Ghz(Cortex-A7) |
GPU | Mali-400MP2 | |
RAM | 2G | |
ROM | 16G | |
Memory card | Support TF card, up to 32GB | |
HDMI | HDMI2.0 | |
OTG | YES | |
HOST | USB2.0 | |
Operating system |
Android 7.1 |

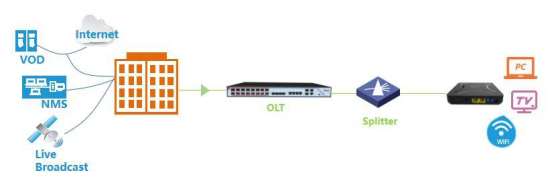

Network Application
● Typical Solution:FTTH
● Typical Business:INTERNET, IPTV, VOD, WIFI
Ordering Information
Product Name | Part Number | Product Description |
ONU+OTT+WIFI | SPU-GE2302W-H | 1*10/100/1000M and 1*10/100M Ethernet interface,1 EPON/GPON adaptive interface, 1HDMI interface, 1 AV interface, support 802.11b/g/n wifi function, plastic casing, external power supply adapter,2G RAM |
If you need more customized services, please contact us.
● Typical Solution:FTTH
● Typical Business:INTERNET, IPTV, VOD, WIFI
Product Name | Part Number | Product Description |
ONU+OTT+WIFI | SPU-GE2302W-H | 1*10/100/1000M and 1*10/100M Ethernet interface,1 EPON/GPON adaptive interface, 1HDMI interface, 1 AV interface, support 802.11b/g/n wifi function, plastic casing, external power supply adapter,2G RAM |
If you need more customized services, please contact us.
