    Sopto provides the categories of 155M~1.25G Transceiver include155M~1.25G SFP,CWDM SFP,DWDM SFP,They are designed for use in Fast Ethernet, Gigabit Ethernet, 1G Fibre Channel, and SONET/SDH links, compliant with the SFP MSA. Digital diagnostics functions are available. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
  • Contact Us

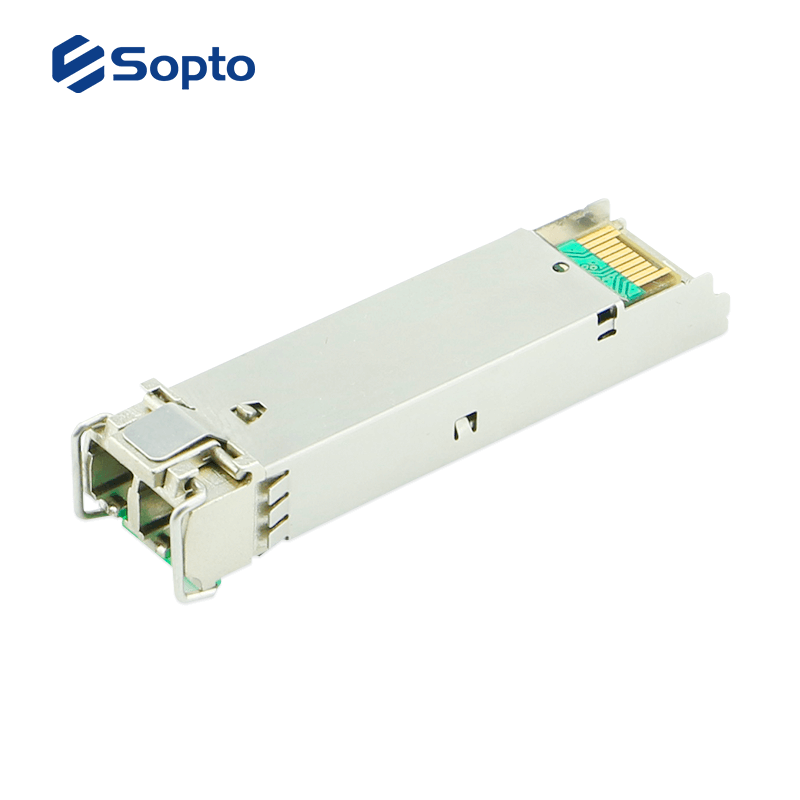

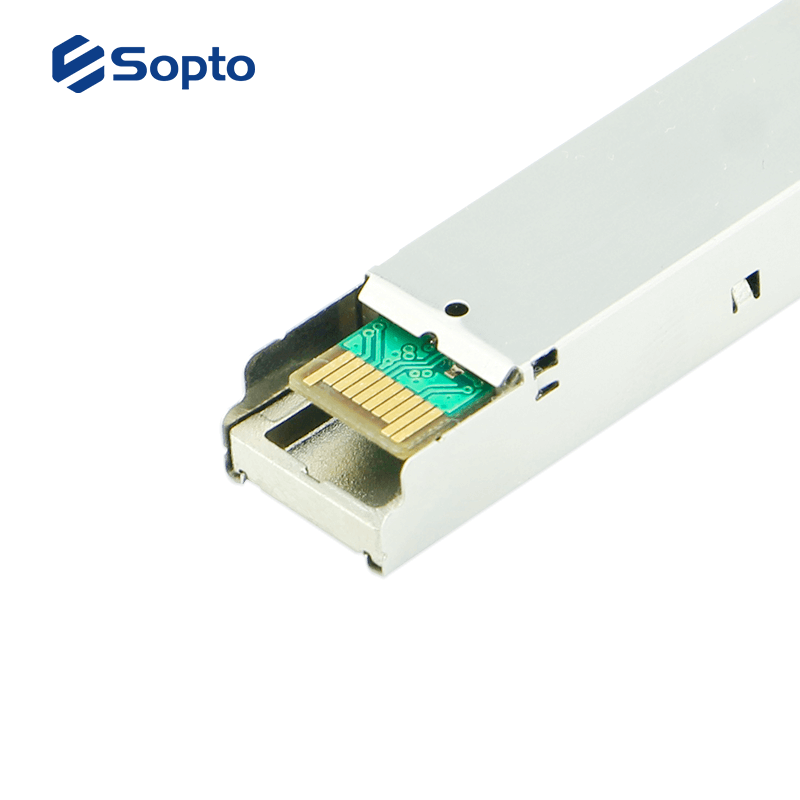

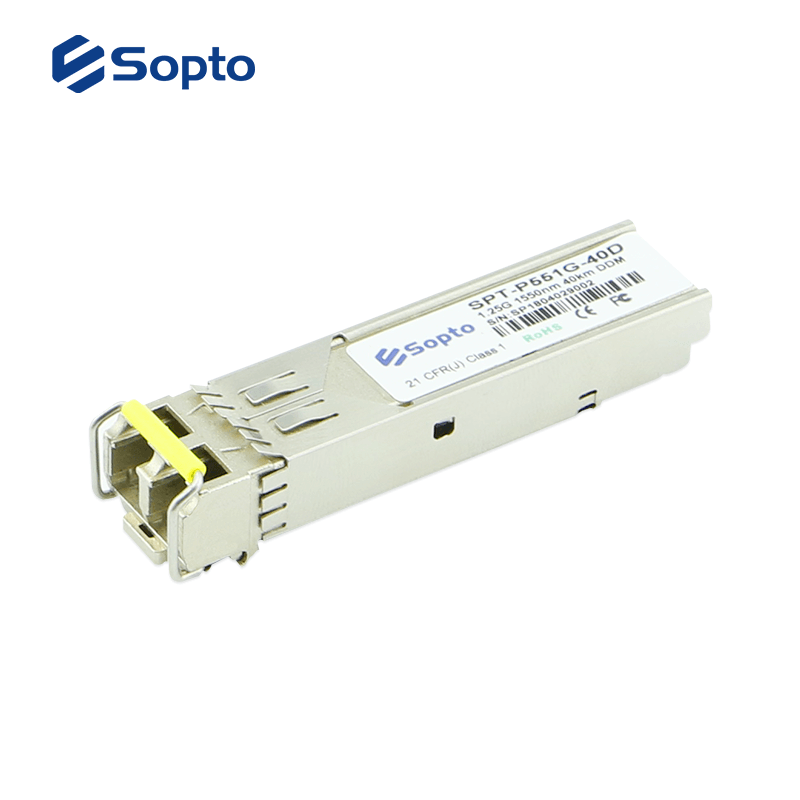

  • 155M~1.25G SFP transceivers are the most common sfp modules, which operating at 850nm, 1310nm, 1550nm wavelengths over dual fibers. BIDI SFP transceivers are operating over single Single Mode Fiber (SMF).

    CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications at 1270-1610nm CWDM wavelengths over single-Mode Fiber (SMF).

    DWDM SFP is a series of optical transceiver modules operating at DWDM C-band (100GHz channel spacing) wavelengths over single-Mode Fiber (SMF).


    Classification

    Features

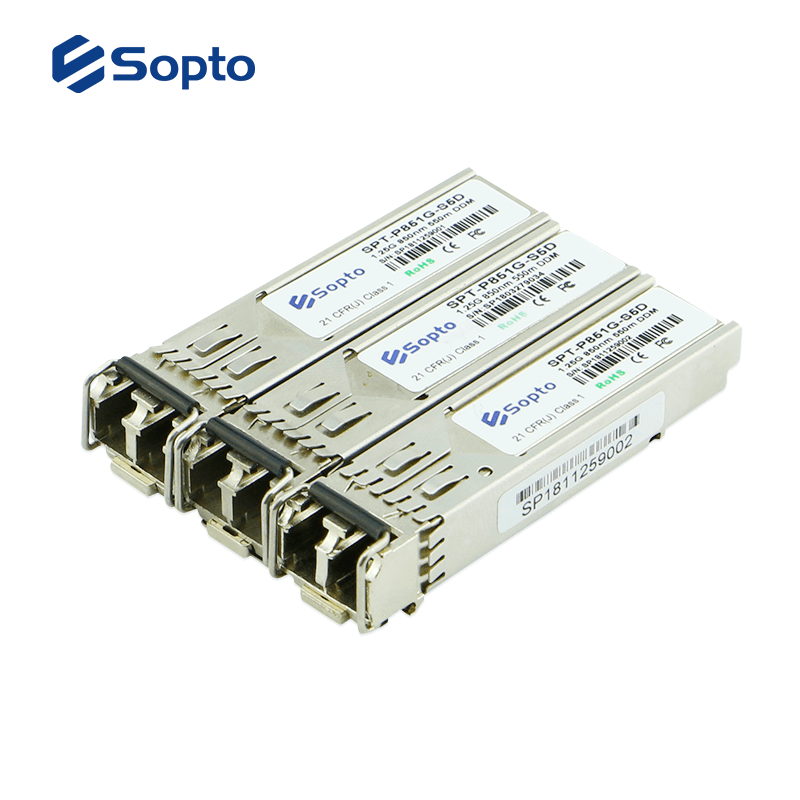

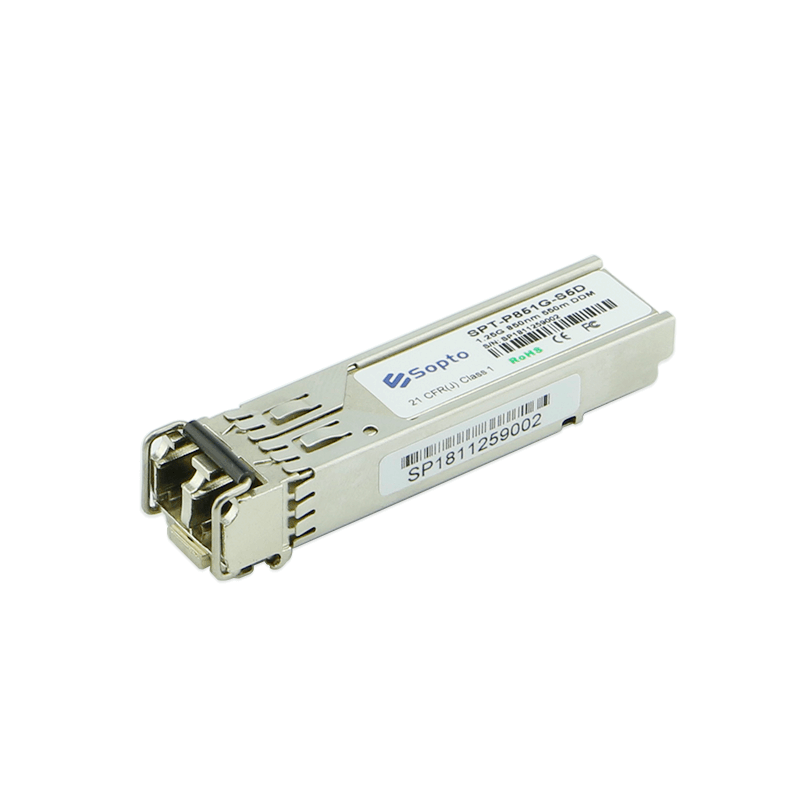

    SFP Transceivers.png

    155M~1.25G SFP Transceivers

    ● Supports data rates from 100Mb/s to 1.25Gb/s

    ● Compliant with SFP MSA

    ● Compliant with IEEE Std 802.3

    ● Compliant with FC-PI 13.0

    ● Single +3.3V power supply

    ● RoHS-6 compliant (lead free)

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C ;Industrial: -40~85°C

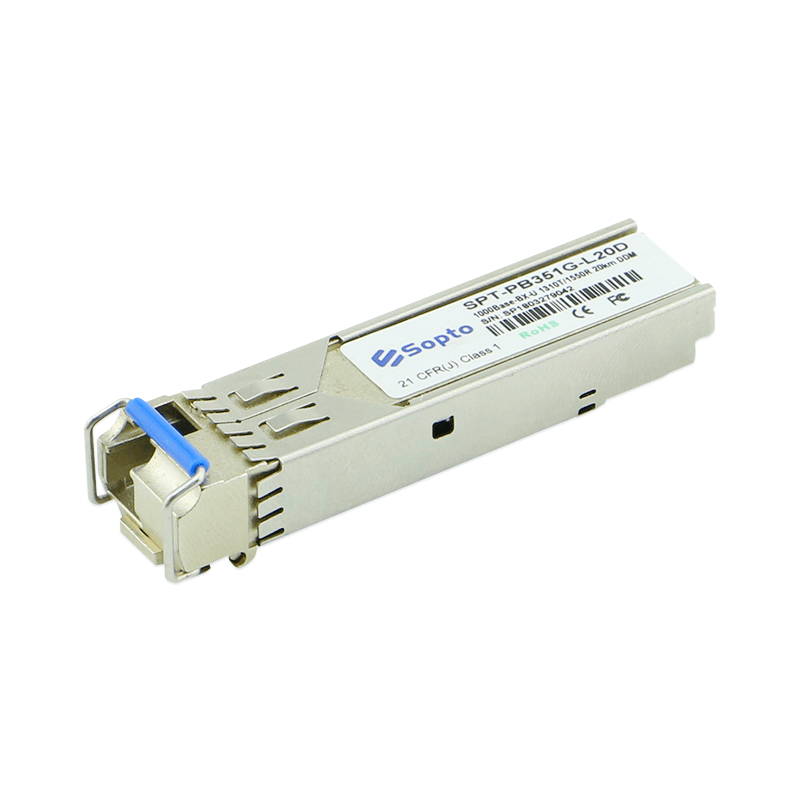

    BIDI SFP Transceivers.png

    155M~1.25G BIDI SFP Transceivers

    ● Supports data rates from 100Mb/s to 1.25Gb/s

    ● Simplex SC or LC Interface

    ● Compliant with SFP MSA

    ● Compliant with IEEE Std 802.3

    ● Compliant with FC-PI 13.0

    ● Single +3.3V power supply

    ● RoHS-6 compliant (lead free)

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C ;Industrial: -40~85°C

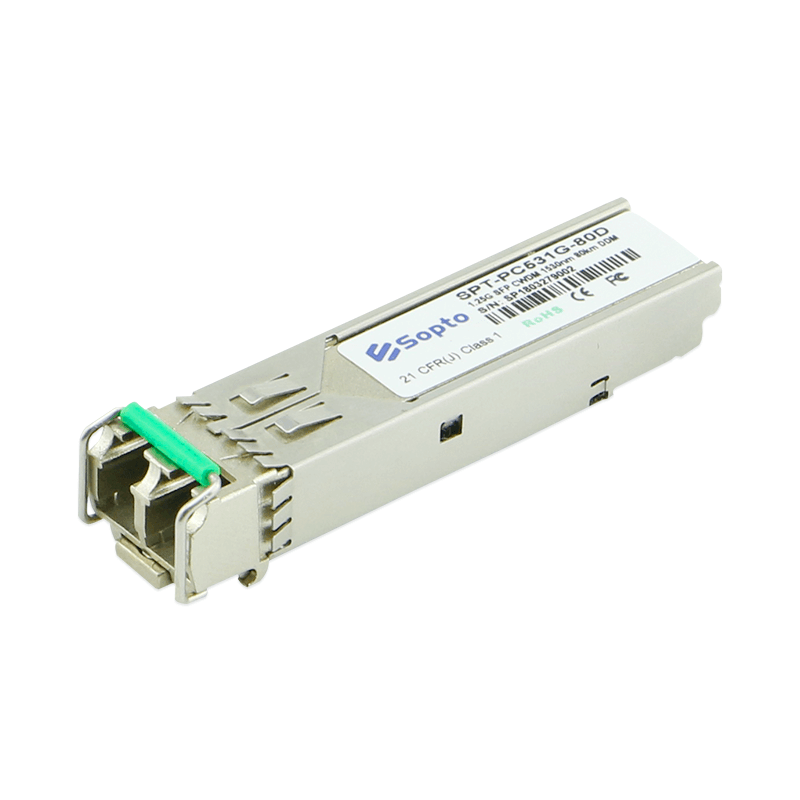

    CWDM SFP Transceivers.png

    1.25G CWDM SFP Transceivers

    ● Supports data rates from 100Mb/s to 1.25Gb/s

    ● Can be used with single fiber CWDM system or dual fiber CWDM system

    ● 18 Wavelengths CWDM 1270nm to 1610nm Available

    ● Compliant with SFP MSA

    ● Compliant with IEEE Std 802.3

    ● Compliant with FC-PI 13.0

    ● Single +3.3V power supply

    ● RoHS-6 compliant (lead free)

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C ;Industrial: -40~85°C

    DWDM SFP Transceivers.png

    1.25G DWDM SFP Transceivers

    ● Supports data rates from 100Mb/s   to 1.25Gb/s

    ● Can be used with single fiber DWDM system or dual fiber DWDM system

    ● DWDM 100GHz ITU Grid C Band Available

    ● Compliant with SFP MSA

    ● Compliant with IEEE Std 802.3

    ● Compliant with FC-PI 13.0

    ● Single +3.3V power supply

    ● RoHS-6 compliant (lead free)

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

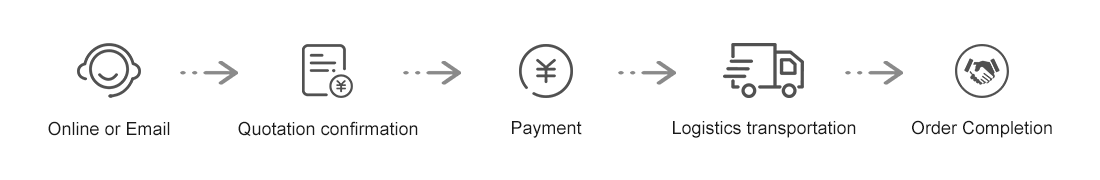

    Transaction Process


    Transaction Process.png

    Sopto will NOT charge any customer with Hidden fees on their order. All fees and charges will be calculated and displayed to you after you confirm the order

    paymnet

    Purchasers are welcome to provide their own courier collect a/c for freight charge incurred. Should no courier collect a/c be available, international shipments are delivered normally through FedEx, DHL, TNT or UPS unless otherwise specified.
