  • Horizontal Fiber Closure

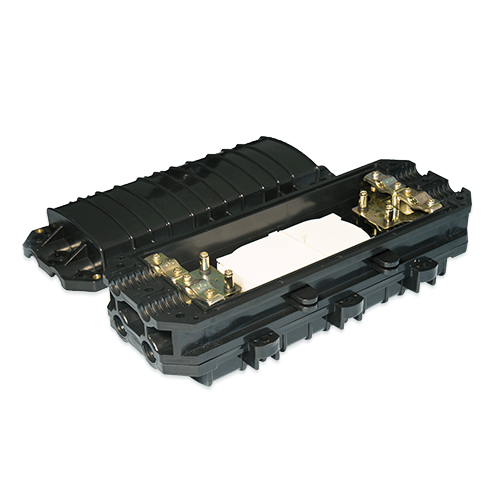

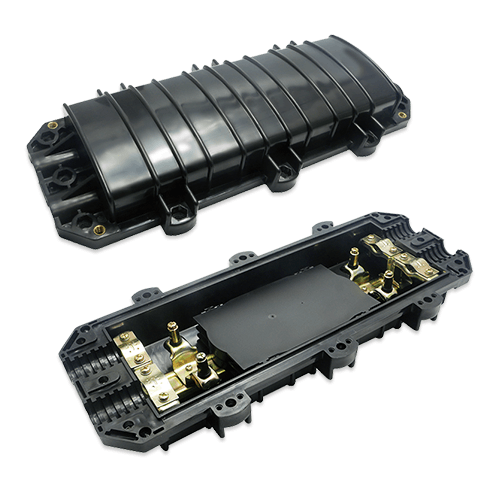

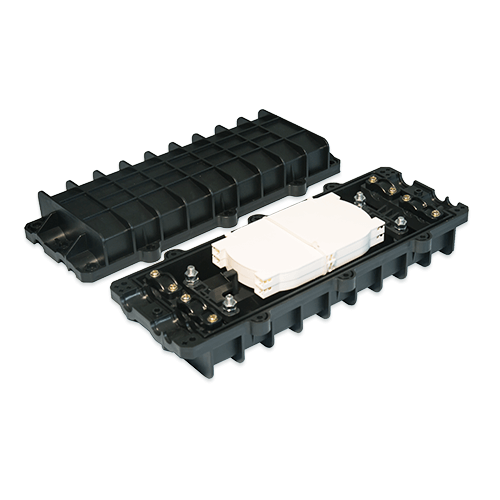

    Fiber Closure Horizontal type is suitable for overhead, direct buried, pipe installation, for protection connection and fiber distribution between two or more cables. It is one of the commonly used devices for user access points, and mainly completes the distribution cable and the home line cable. According to the number of fuse cores, the specifications are 12 cores, 24 cores, 48 cores, 72 cores, 96 cores, 144 cores, and 288 cores.
  • Contact Us

  • ● All property indexes are in accordance with National YD/T814-1996 Standard.

    ● Made from imported high-intensity engineering plastics (ABS) and formed the shape with mould plastics under high pressure.

    ● Light weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.

    ● Sealed with adhesive rubber strip(non-vulcanized) and sealed tape. Reliable sealing capability. It can be re-opened and easy to maintain.

    ● Unique disposition of different cable loops enables user to choose different outer diameter according to actual conditions, it enhances the reliability of the cable entrance sealed.

    ● Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.

    ● Outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments.


    Item

    Parameter

    Type

    Fiber Closure Horizontal type

    Way to install

    Aerial, duct and buried applications

    Capacity of splice tray

    12 or 24 cores Optional

    Sealing structure

    Sticky cincture

    Work Temperature

    -40 °C ~+70 °C

    Atmospheric    Pressure

    70Kpa~106Kpa

    Optical fiber winding radius

    ≥40mm

    Extra loss of fiber tray

    ≤ 0.01dB

    Fiber length left in tray

    ≥1.6m

    Max Capacity

    288 single fiber

    Lateral pressure-resistance

    ≥2000N / 10cm

    Shock-resistance

    ≥20N.m



    ● Telecommunication subscriber loop

    ● Fiber to the home (FTTH)

    ● LAN/WAN



    Part Number

    Product Description

    Size(mm)

    SPFC-NH-12M-1/1H

    Fibe Closure Horizontal type 12 Cores Max, 12 Cores Splice Tray 1 IN 1 OUT

     Mechanical Splicing type H

    390*140*75

    SPFC-NH-24M-1/1H

    Fiber Closure Horizontal type 24 Cores  Max, 12 Cores Splice Tray 1 IN 1 OUT

    Mechanical Splicing type H

    390*140*75

    SPFC-NH-36M-1/1H

    Fiber Closure Horizontal type 36 Cores Max , 12 Cores Splice Tray 1 IN 1 OUT

    Mechanical Splicing type H

    390*140*75

    SPFC-NH-48M-1/1H

    Fiber Closure Horizontal type 48 Cores Max , 12 Cores Splice Tray 1 IN 1 OUT

    Mechanical Splicing type H

    390*140*75

    SPFC-NH-24M-2/2C

    Fiber Closure Horizontal type 24 Cores  Max , 24 Cores Splice Tray 2 IN 2 OUT

    Mechanical Splicing type C

    435*190*120mm

    SPFC-NH-48M-2/2C

    Fiber Closure Horizontal type 48 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT

    Mechanical Splicing type C

    435*190*120mm

    SPFC-NH-72M-2/2C

    Fiber Closure Horizontal type 72 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT

    Mechanical Splicing type C

    435*190*120mm

    SPFC-NH-96M-2/2C

    Fiber Closure Horizontal type 96 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT

    Mechanical Splicing type C

    435*190*120mm

    SPFC-NH-144M-2/2C

    Fiber Closure Horizontal type 144 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT

    Mechanical Splicing type C

    435*190*120mm

    SPFC-NH-192M-2/2C

    Fiber Closure Horizontal type 192 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT

    Mechanical Splicing type C

    435*190*120mm

    SPFC-NH-24M-2/2D

    Fiber Closure Horizontal type 24 Cores  Max, 12 Cores Splice Tray 2 IN 2 OUT

    Mechanical Splicing type D

    350*145*90mm

    SPFC-NH-48M-2/2D

    Fiber Closure Horizontal type 48 Cores Max, 12 Cores Splice Tray 2 IN 2 OUT

    Mechanical Splicing type D

    350*145*90mm

    SPFC-NH-24M-2/2G

    Fiber Closure Horizontal type 24 Cores  Max, 12 Cores Splice Tray 2 IN 2 OUT

    Mechanical Splicing type G

    435*190*120mm

    SPFC-NH-24M-3/3B

    Fiber Closure Horizontal type 24 Cores  Max, 24 Cores Splice Tray 3 IN 3 OUT

    Mechanical Splicing type B

    420*150*110mm

    SPFC-NH-48M-3/3B

    Fiber Closure Horizontal type 48 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT

     Mechanical Splicing  type B

    420*150*110mm

    SPFC-NH-72M-3/3B

    Fiber Closure Horizontal type 72 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT

     Mechanical Splicing type B

    420*150*110mm

    SPFC-NH-96M-3/3B

    Fiber Closure Horizontal type 96 Cores Max,  24 Cores Splice Tray 3 IN 3 OUT

     Mechanical Splicing type B

    420*150*110mm

    SPFC-NH-24M-4/4A

    Fiber Closure Horizontal type 24 Cores  Max, 24 Cores Splice Tray 4 IN 4 OUT

     Mechanical Splicing type A

    470*240*120mm

    SPFC-NH-48M-4/4A

    Fiber Closure Horizontal type 48 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT

    Mechanical Splicing type A

    470*240*120mm

    SPFC-NH-72M-4/4A

    Fiber Closure Horizontal type 72 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT

     Mechanical Splicing type A

    470*240*120mm

    SPFC-NH-96M-4/4A

    Fiber Closure Horizontal type 96 Cores Max,  24 Cores Splice Tray 4 IN 4 OUT

    Mechanical  Splicing type A

    470*240*120mm

    SPFC-NH-144M-4/4A

    Fiber Closure Horizontal type 144 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT

    Mechanical Splicingtype A

    470*240*120mm

    SPFC-NH-24M-4/4F

    Fiber Closure Horizontal type 24 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT

    Mechanical Splicing type F

    435*190*170mm

    SPFC-NH-48M-4/4F

    Fiber Closure Horizontal type 48 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT

    Mechanical Splicing  type F

    435*190*170mm

    SPFC-NH-72M-4/4F

    Fiber Closure Horizontal type 72 Cores Max , 24 Cores Splice Tray 4 IN  4 OUT

    Mechanical Splicing type F

    435*190*170mm

    SPFC-NH-96M-4/4F

    Fiber Closure Horizontal type 96 Cores Max , 24 Cores SpliceTray 4 IN  4 OUT

    Mechanical Splicing  type F

    435*190*170mm

    SPFC-NH-144M-4/4F

    Fiber Closure Horizontal type 44 Cores Max , 24 Cores Splice Tray 4 IN  4 OUT

    Mechanical Splicing type F

    435*190*170mm

    SPFC-NH-192M-4/4F

    Fiber Closure Horizontal type 192 Cores Max , 24 Cores Splice Tray 4 IN  4 OUT

    Mechanical Splicing type F

    435*190*170mm

    SPFC-NH-216M-4/4F

    Fiber Closure Horizontal type 216 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT

    Mechanical Splicing type F

    435*190*170mm

    SPFC-NH-288M-4/4F

    Fiber Closure Horizontal type  288 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT

    Mechanical Splicingtype F

    435*190*170mm
