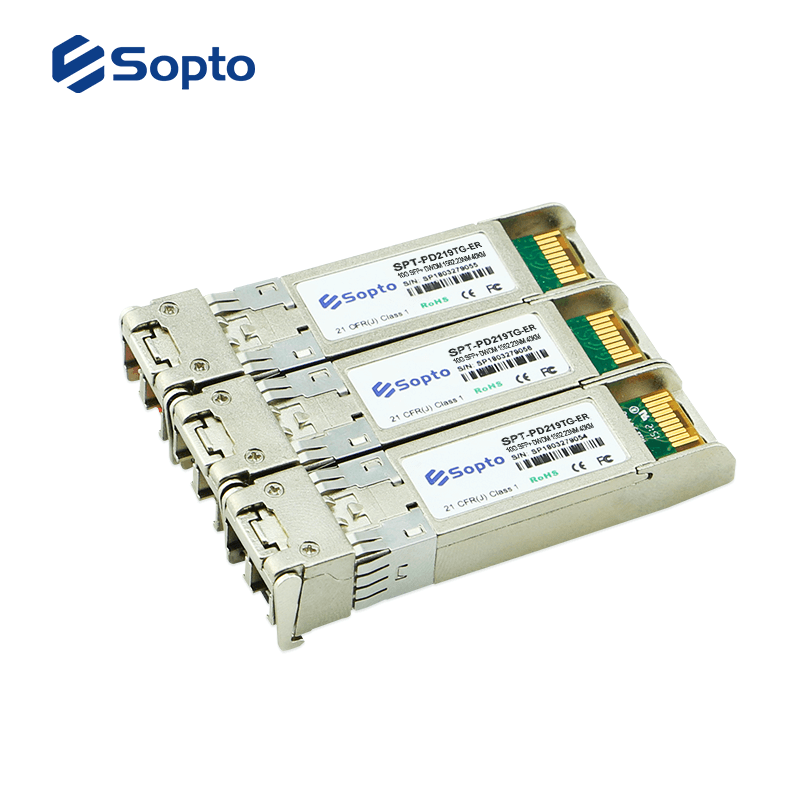

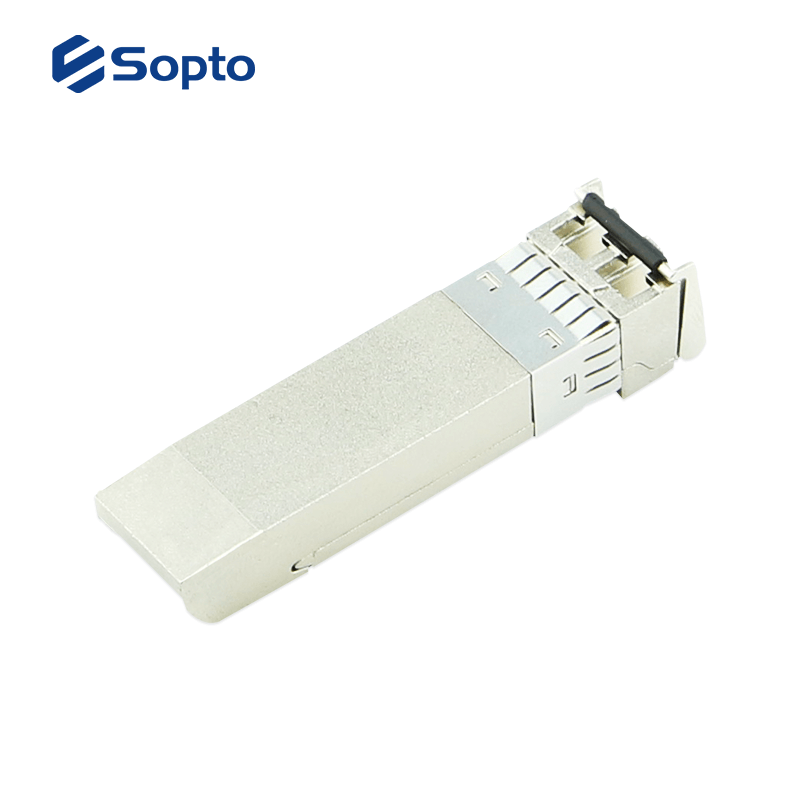

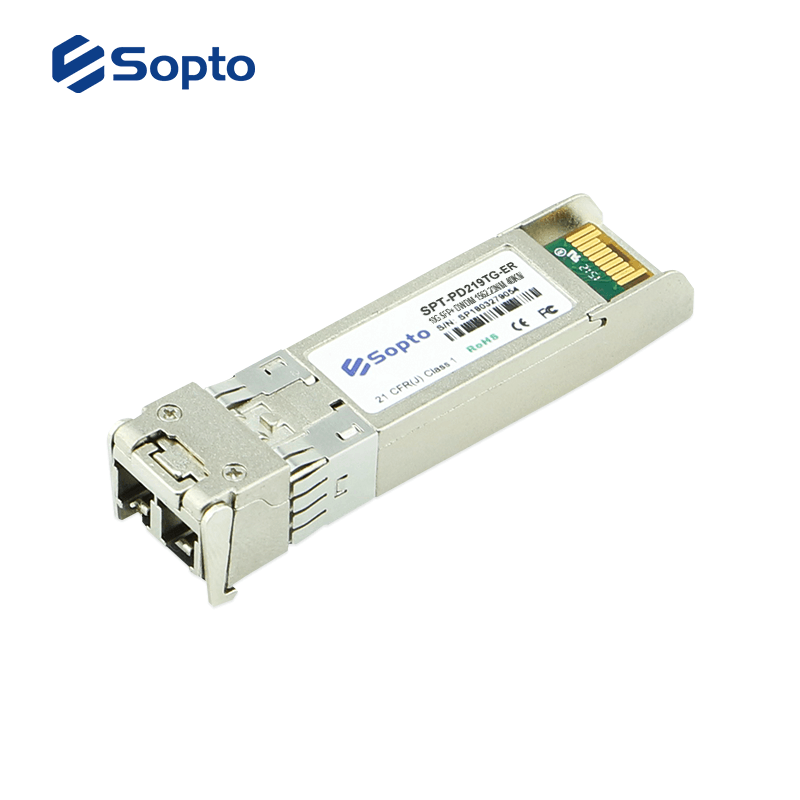

10G DWDM SFP+/XFP
Product Features
● Single +3.3 V Power Supply
● Support 9.95 Gbps to 11.1Gbps
● DWDM TUNABLE laser optional
● Built-in digital diagnostic functions
● Transmission distance up to 80km over SMF
● Temperature-stabilized DWDM EML Transmitter
● Can be used with single fiber DWDM system and dual fiber DWDM system
● Available in all C-Band Wavelengths on the 100GHz or 50GHz DWDM ITU Grid
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
Complaint
● RoHS-6
● SFP+/XFP MSA
● OC-192 / SDH STM LR2
● IEEE 802.3ae 10GBASE-ZR and 10GBASE-ER
● SFF-8431 ,SFF-8432 ,SFF-8436 and SFF-8472
Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs
Pin Assignment

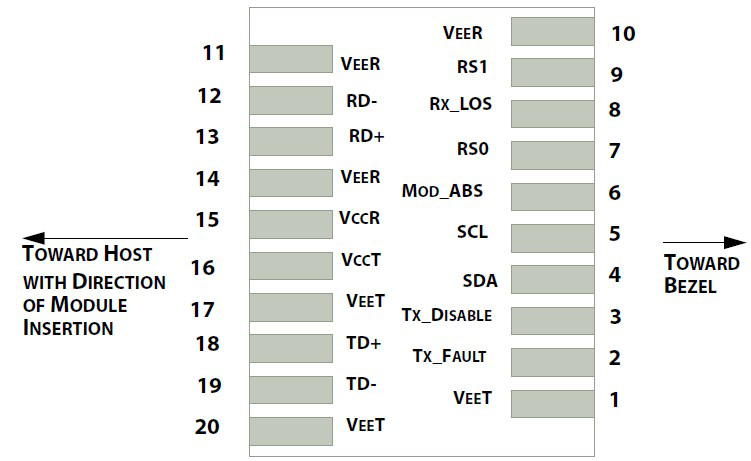

Diagram of Host Board Connector Block Pin Numbers and Name.
Pin Function Descriptions
PIN # | Name | Function | Notes |
1 | VeeT | Module transmitter ground | 1 |
2 | Tx Fault | Module transmitter fault | 2 |
3 | Tx Disable | Transmitter Disable; Turns off transmitter laser output | 3 |
4 | SDL | 2 wire serial interface data input/output (SDA) | |
5 | SCL | 2 wire serial interface clock input (SCL) | |
6 | MOD-ABS | Module Absent, connect to VeeR or VeeT in the module | 2 |
7 | RS0 | Rate select0, optionally control SFP+ receiver. When high, input data rate >4.5Gb/ s; when low, input data rate <=4.5Gb/s | |
8 | LOS | Receiver Loss of Signal Indication | 4 |
9 | RS1 | Rate select0, optionally control SFP+ transmitter. When high, input data rate >4.5Gb/s; when low, input data rate <=4.5Gb/s | |
10 | VeeR | Module receiver ground | 1 |
11 | VeeR | Module receiver ground | 1 |
12 | RD- | Receiver inverted data out put | |
13 | RD+ | Receiver non-inverted data out put | |
14 | VeeR | Module receiver ground | 1 |
15 | VccR | Module receiver 3.3V supply | |
16 | VccT | Module transmitter 3.3V supply | |
17 | VeeT | Module transmitter ground | 1 |
18 | TD+ | Transmitter inverted data out put | |
19 | TD- | Transmitter non-inverted data out put | |
20 | VeeT | Module transmitter ground | 1 |
Note:
1. The module ground pins shall be isolated from the module case.
2. This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board.
3. This pin shall be pulled up with 4.7K-10Kohms to VccT in the module.
4. This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board.
SFP Module EEPROM Information and Management
The SFP modules implement the 2-wire serial communication protocol as defined in the SFP -8472. The serial ID information of the SFP modules and Digital Diagnostic Monitor parameters can be accessed through the I2C interface at address A0h and A2h. The memory is mapped in Table 1. Detailed ID information (A0h) is listed in Table 2. And the DDM specification at address A2h. For more details of the memory map and byte definitions, please refer to the SFF-8472, “Digital Diagnostic Monitoring Interface for Optical Transceivers”. The DDM parameters have been internally calibrated.

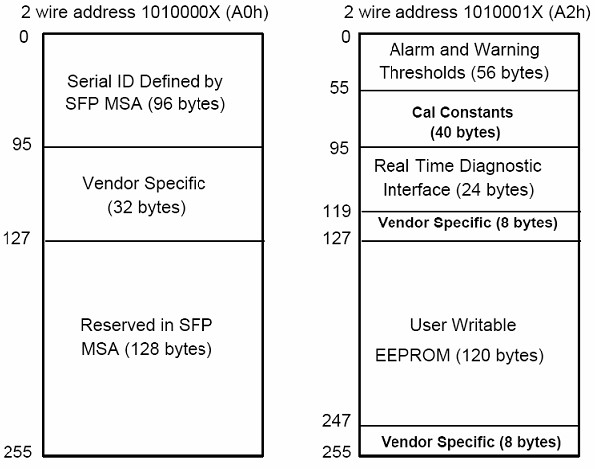

Table 1: Digital Diagnostic Memory Map (Specific Data Field Descriptions)
Table 2:EEPROM Serial ID Memory Contents (A0h)
Data Address | Length(Byte) | Name of Length | Description and Contents |
Base ID Fields | |||
0 | 1 | Identifier | Type of Serial transceiver (03h=SFP) |
1 | 1 | Reserved | Extended identifier of type serial transceiver (04h) |
2 | 1 | Connector | Code of optical connector type (07=LC) |
3-10 | 8 | Transceiver | 10G Base-ZR |
11 | 1 | Encoding | 64B/66B |
12 | 1 | BR, Nominal | Nominal baud rate, unit of 100Mbps |
13-14 | 2 | Reserved | (0000h) |
15 | 1 | Length(9um) | Link length supported for 9/125um fiber, units of 100m |
16 | 1 | Length(50um) | Link length supported for 50/125um fiber, units of 10m |
17 | 1 | Length(62.5um) | Link length supported for 62.5/125um fiber, units of 10m |
18 | 1 | Length(Copper) | Link length supported for copper, units of meters |
19 | 1 | Reserved | |
20-35 | 16 | Vendor Name | SFP vendor name: SOPTO |
36 | 1 | Reserved | |
37-39 | 3 | Vendor OUI | SFP transceiver vendor OUI ID |
40-55 | 16 | Vendor PN | Part Number: “SPT-PDXXTG-ZR+” (ASCII) |
56-59 | 4 | Vendor rev | Revision level for part number |
60-62 | 3 | Reserved | |
63 | 1 | CCID | Least significant byte of sum of data in address 0-62 |
Extended ID Fields | |||
64-65 | 2 | Option | Indicates which optical SFP signals are implemented (001Ah = LOS, TX_FAULT, TX_DISABLE all supported) |
66 | 1 | BR, max | Upper bit rate margin, units of % |
67 | 1 | BR, min | Lower bit rate margin, units of % |
68-83 | 16 | Vendor SN | Serial number (ASCII) |
84-91 | 8 | Date code | Sopto’s Manufacturing date code |
92-94 | 3 | Reserved | |
95 | 1 | CCEX | Check code for the extended ID Fields (addresses 64 to 94) |
Vendor Specific ID Fields | |||
96-127 | 32 | Readable | Sopto specific date, read only |
128-255 | 128 | Reserved | Reserved for SFF-8079 |
Recommended Host Board Power Supply Circuit

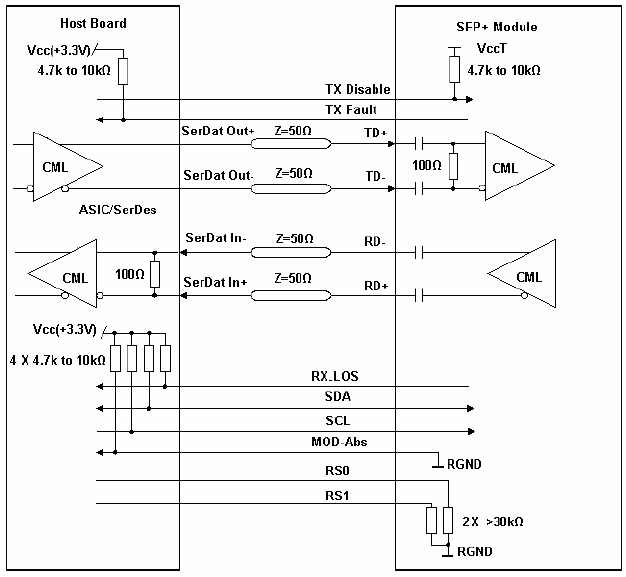

Recommended High-speed Interface Circuit

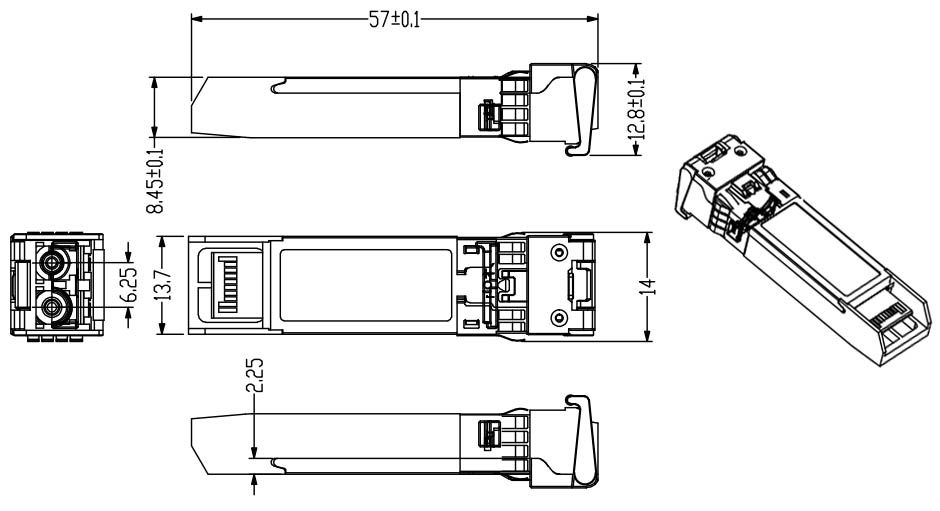

Mechanical Dimensions
All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc.
If you want to know more about the exact information of the specified transceiver or get price, Please Contact Us>>.
● SONET OC-192 / SDH STM-64
● OTN ITU-T G.709
● 10GBASE-SR/LR/ER/ZR Ethernet
● 10X/8X/4X/2X/1X Fibre Channel
● DWDM Networks
Related Articles
● What is SFP-10G-LRM Optical Transceiver?
● The difference of SFP 10G SR LR LRM ER and ZR
● What is DDM Function for Fiber Optic Transceiver?
● Fiber Optic Transceiver Module's Selection and Use Skills
PN | Data Rate(Gbps) | Distance | Fiber | Output Power(dBm) | Sensitivity(dBm) | Interface | Temp. | DDM |
100GHz DWDM SFP+ | ||||||||
SPT-PDXXTG-ER | 9.95~11.3 | 40km | SM | 0~5 | -16 | Duplex LC | 0 to 70℃ | D |
SPT-PDXXTG-ZR | 9.95~11.3 | 80km | SM | 0~5 | -23 | Duplex LC | 0 to 70℃ | D |
SPT-PDXXTG-ZR+ | 9.95~11.3 | 100km | SM | 0~5 | -24 | Duplex LC | 0 to 70℃ | D |
100GHz DWDM Tunable SFP+ | ||||||||
SPT-PDCTG-ER | 9.95~11.3 | 40km | SM | 0~5 | -16 | Duplex LC | 0 to 70℃ | D |
SPT-PDCTG-ZR | 9.95~11.3 | 80km | SM | 0~5 | -23 | Duplex LC | 0 to 70℃ | D |
50GHz DWDM Tunable SFP+ | ||||||||
SPT-PD1CTG-ER | 9.95~11.3 | 40km | SM | 0~5 | -16 | Duplex LC | 0 to 70℃ | D |
SPT-PD1CTG-ZR | 9.95~11.3 | 80km | SM | 0~5 | -23 | Duplex LC | 0 to 70℃ | D |
100GHz DWDM XFP | ||||||||
SPT-XDXXTG-ER | 9.95~11.3 | 40km | SM | 0~5 | -16 | Duplex LC | 0 to 70℃ | D |
SPT-XDXXTG-ZR | 9.95~11.3 | 80km | SM | 0~5 | -23 | Duplex LC | 0 to 70℃ | D |
SPT-XDXXTG-ZR+ | 9.95~11.3 | 100km | SM | 0~5 | -24 | Duplex LC | 0 to 70℃ | D |
100GHz DWDM Tunable XFP | ||||||||
SPT-XDCTG-ER | 9.95~11.3 | 40km | SM | 0~5 | -16 | Duplex LC | 0 to 70℃ | D |
SPT-XDCTG-ZR | 9.95~11.3 | 80km | SM | 0~5 | -23 | Duplex LC | 0 to 70℃ | D |
50GHz DWDM Tunable XFP | ||||||||
SPT-XD1CTG-ER | 9.95~11.3 | 40km | SM | 0~5 | -16 | Duplex LC | 0 to 70℃ | D |
SPT-XD1CTG-ZR | 9.95~11.3 | 80km | SM | 0~5 | -23 | Duplex LC | 0 to 70℃ | D |
Note: XX = 17~61 (ITU Channel C-band)
