    Direct Buried Outdoor Cable, externally wrapped with steel tape or steel wire, directly buried in the ground, requires resistance to external mechanical damage and soil corrosion resistance.
  • Contact Us
  • ● 2 ~ 576 cores

    ● Steel wire/FRP as strength member.

    ● Must be double Jacketed, with at least one layer of armor.

    ● Good resistance to lateral pressure and softness

    ● Loose-tube twisted single sheath or central tube structure

    ● Loose sleeve material with good hydrolysis resistance and high strength;

    ● Compact structure,excellent waterproof performance, excellent mechanical performance and temperature performance

    ● Bunched or ribbon fiber

    ● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM (OM1, OM2, OM3, OM4) are available;

    ● PE, LSZH outer jacket material optional


    Hot Model





                               GYFTA53


                                GYTA53



                              GYFTY53

                                GYTY53


    Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC



    ● Long-distance backbone network

    ● Urban ring network

    ● Access Network, FTTX

    ● Relay between communication machine rooms

    ● Building cable in integrated wiring


    Related Articles

    ●  What is the armored fiber optic cable

    ●  Optical Fiber and Optical Fiber Classification

    ●  What is Principle of Optical Fiber Communication


     Cable Type

     Product Description

     Application

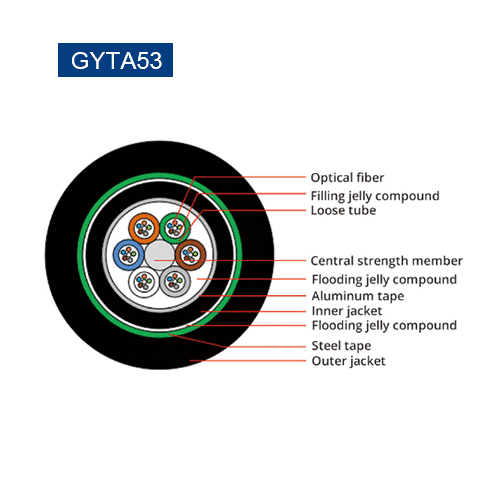

     GYTA53

     Outdoor optical cable , Metal strength member; Aluminum-polyethylene adhesive inner jacket; Steel-polyethylene adhesive outer jacket

     Direct Buried

     GYFY53

     Semi-dry optical cable , Non-metal strength member; Water blocking tapeWater blocking yarn ;Glass yarn strength member PE inner jacket; Steel-polyethylene adhesive outer jacket

     Direct Buried

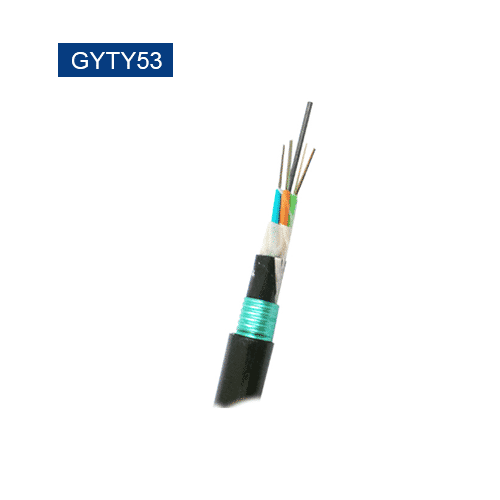

     GYTY53

     Outdoor optical cable, Metal strength member, PE inner jacket; Steel-polyethylene adhesive outer jacket

     Direct Buried

     GYFTA53

     Outdoor optical cable, Non-metal strength member, Aluminum-polyethylene adhesive inner jacket; Steel-p olyethylene adhesive outer jacket

     Direct Buried

     GYFTY63

     Outdoor optical cable , Non-metal strength member; PE inner jacket; Glass yarn strength member; PE Outer jacket

     Direct Buried

     GYFTY53

     Outdoor optical cable , Non-metal strength member, PE inner jacket; Steel-PE adhesive outer jacket

     Direct Buried

     GYTA5333

     Outdoor optical cable , Metal strength member; Aluminum-polyethylene adhesive and Steel-polyethylene adhesive inner jacket ;Single smaller round steel wire armoringPE Outer jacket

     Direct Buried or Submarine

     GYFTY33

     Outdoor optical cable , Non-metal strength member, PE inner jacket; Single smaller round steel wire armoringPE Outer jacket

     Direct Buried or Submarine

     GYFTY73

     All dielectric reinforced optical cable Non-metal strength member; PE inner jacket; Glass yarn strength member, PE outer jacket

     Aerial or Direct Buried

     GYFTZY63

     Outdoor optical cable , Non-metal strength member; HDPE inner jacket; Glass yarn strength member; LSZH Outer jacket

     Aerial or Direct Buried

    Notes:

    1.Flooding jelly compound default

    2.The relevant technical parameters can be adjusted according to the customers' demands;

    3.The block water way can be adjusted according to the customers' demands;

    4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’ demands.
