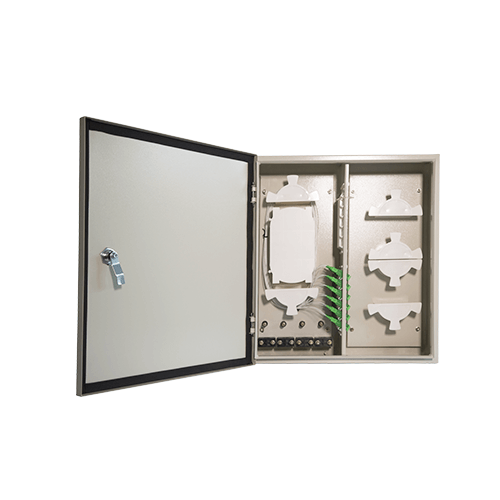

  • 72 cores Fiber Terminal Box

    This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
  • Contact Us
  • ● Single door, double door optional, easy to operate

    ● Suitable for outdoor or indoor use

    ● Applicable to SC, LC duplex, FC, ST and other adapters and pigtails

    ● Made of high-quality metal material, fully enclosed structure, beautiful appearance

    ● Effectively protect and manage cables

    ● Adopt anti-theft lock mechanism

    ● Integrated processing of feeder cable and lead-in cable, fiber connection, fixing, storage, and distribution

    ● The size and style of the cabinet can be customized according to customer requirements.


    Name

    Content

    Model

    SPDF-I72SCS-XXX

    Mounting

    Wall-mounted & Pole-mounted

    Environment

    Outdoor & Indoor

    Color of Frame

    White

    Material of Frame

    1.2mm superior cold-rolled sheet,   surface with static painting

    Adaptor Output Type

    FC, SC, ST, 2LC

    Withstand Voltage

    Withstand Voltage is greater than or equal to 3000V(DC) between box and grounding device of high voltage protection, cannot be breakdown within 1min by high voltage,  Non-arcing phenomenon

    Insulation

    Insulation Resistance is not less than 100MΩ/500V(DV) between box and grounding device of high voltage protection


    ● Telecommunication subscriber loop

    ● Fiber to the home (FTTH)

    ● LAN/WAN


    Part Number

    Describe

    Model Size mm

    SPDF-I72SCS-WMA

    FTTH Terminal Box Indoor wall mounted 72cores Simplex SC/Duplex LC type without adaptors, pigtails Metal Single door type A

    455*405*150

    SPDF-O72SCS-WMA

    FTTH Terminal Box outdoor wall mounted 72cores Simplex SC/Duplex LC type without adaptors, pigtails Metal Single door type A

    455*405*150
