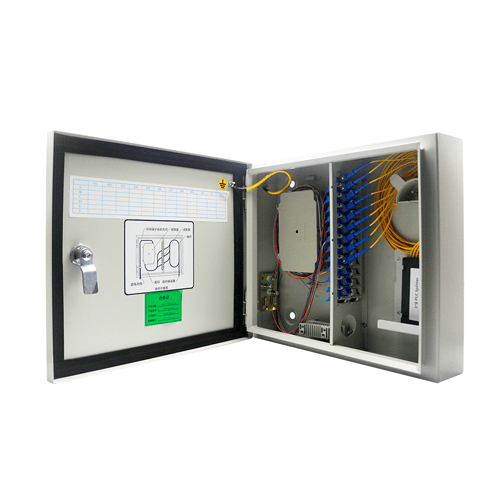

  • 36 cores Splitter Distribution Box

    Fiber Distribution Box is a connecting box between fiber cable and optical communication equipment for distributing optical fiber, in the use of patch cord bringing optical signal out with fiber adaptor in distribution box. This box could be used in outdoor and indoor for small capacity of fiber optical communication project as configuring with entire central apparatus room.Wall-mounted & Pole-mounted type is easy to installation with good looking and reasonable structure for long life time.
  • Contact Us
  • ● Two parts of box frame- Part 1 for fiber splicing and branching through installing common splicing tray,real capacity could be adjusted as practical situation through adding splicing tray with reversible gap. Part 2 is for connecting patch cord in the use of ABS cassette splitter.

    ● Reliable setting for fixing fiber | drop cable, dependable tool for stripping fiber, and safe part for connecting underground.

    ● Design for protecting fiber routing across the enough special space, under guaranteed maximum bending radius is over 40mm, basing on the easy installation.

    ● Fixing by 12ports of adaptor to be suitable for sorts of adaptors.

    ● Sealed with sealing strip, which can effectively prevent the dust from entering.

    ● Elegant appearance with average color, excellent frame structure is able to bear giant compact.


    Name

    Content

    Model

    SPDF-O36SCS-XXX

    Mounting

    Wall-mounted & Pole-mounted

    Environment

    Outdoor & Indoor

    Color of Frame

    White

    Material of Frame

    1.2mm superior cold-rolled sheet, surface with static painting

    Adaptor Output Type

    FC, SC, ST, 2LC

    Withstand Voltage

    Withstand Voltage is greater than or equal to 3000V(DC) between box and grounding device of high voltage protection, cannot be breakdown within 1min by high voltage, Non-arcing phenomenon

    Insulation

    Insulation Resistance is not less than 100MΩ/500V(DV) between box and grounding device of high voltage protection


    ● Telecommunication subscriber loop

    ● Fiber to the home(FTTH)

    ● LAN/WAN


    Part Number

    Describe

    Model Size (mm)

    SPDF-I36SCS-WAMA

    Splitter Distribution Box Indoor wall mounted 36 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation without adaptors, pigtails and splitter Metal Single door type A

    420*350*110

    SPDF-O36SCS-PAMD

    Splitter Distribution Box Outdoor pole mounted/wall mounted 36 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation without adaptors, pigtails and splitter Metal Single door type D

    420*350*110
