  • Standalone 8 PON EPON OLT Standalone 8 PON EPON OLT
  • Standalone 8 PON EPON OLT

    SPO-ES8808 provides 8GE(copper)and 8SFP slots Combo interface for uplink, and 8 EPON ports for downstream. It can support 512 ONU under 1:64 splitter ratio.SPO-ES8444 8PON EPON OLT provides 1 USB interface, 4GE(copper) and 4GE optical interface, 4*10Gb uplink interface, and 8 EPON ports for downstream. It can support 512 ONUs under 1:64 splitter ratio.
  • Contact Us

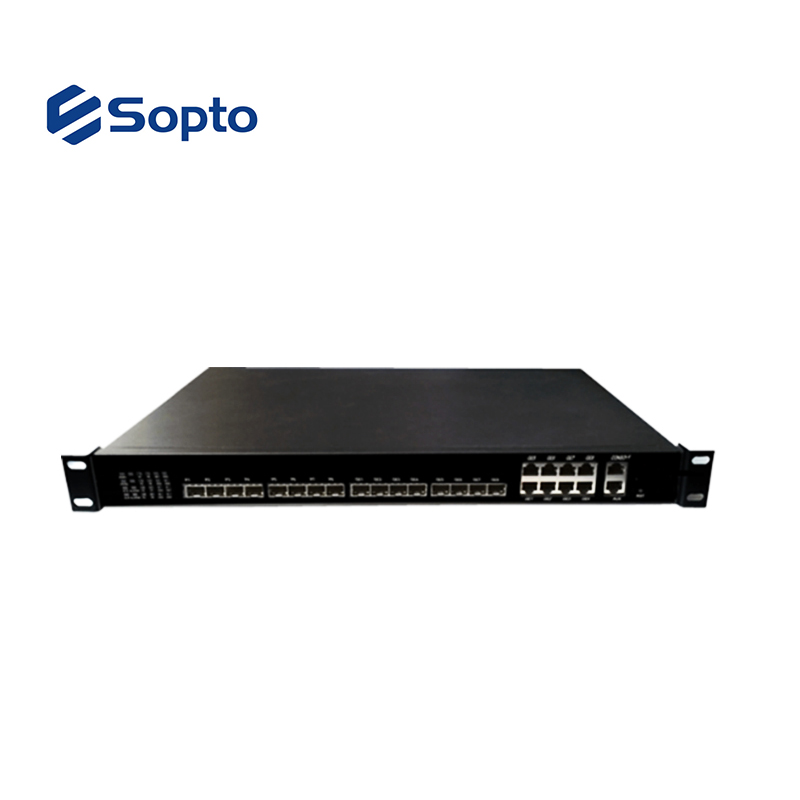

  • SPO-ES8808

    ● 8 PON ports EPON OLT

    ● 8 pon port in 1U pizza-box

    ● 8 uplink GE optical SFP ports

    ● 8 uplink GE RJ45 copper ports

    ● Double 220VAC or -48VDC redundancy power supply

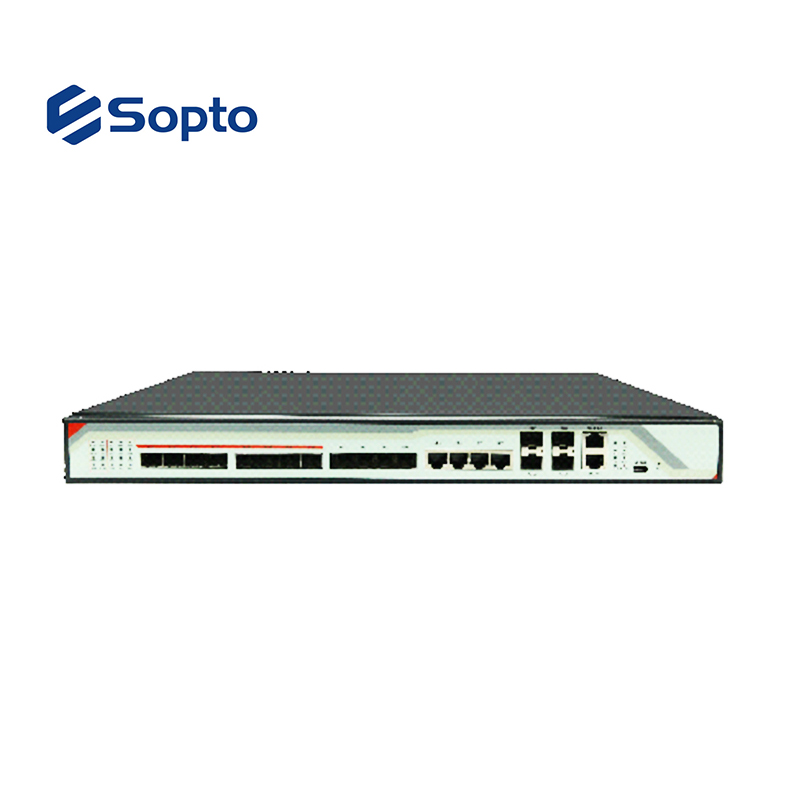

    SPO-ES8444

    ● 4GE(copper) and 4GE optical interface

    ● 2*10Gb uplink interface

    ● 8 EPON ports for downstream

    ● 1 USB interface

    ● Double 220VAC or -48VDC redundancy power supply


    Specification

    Size

    440*280mm*44mm(L*W*H)

    Weight

    4.5kg

    Power Consumption

    45W

    Power supply

    220VAC

    AC: 90V240V47/63Hz

    -48DC

    DC:-36V-72V

    Working environment

    Working temperature

    050

    Storage temperature

    -4085Relative

    Relative humidity

    590% (Non-condensing)

    Management Mode

    SNMP, Telnet, CLI   management mode.

    Management Ports

    1*10/100/1000Mauto-negotiable   outband port

    1CONSOLE port

    Uplink Port

    QTY

    16

    Copper

    10/100/1000M auto-negotiable,RJ45:4pcs

    SFP

    8 SFP slots

    PON Port

    Quantity

    8

    Physical interface

    SFP slot

    Connector Type

    1000BASE-PX20+

    Max splitting ratio

    1:64

    PON Port attribute



    Transmission distance

    20KM

    Port rate

    Symmetrical 1.25Gbps

    Wavelength

    1490nm TX,1310nm RX

    Interface type

    SC/PC

    Fiber type

    9/125μm SMF   (Single Mode Fiber)

    TX Power

    +2.5+7dBm

    Rx Sensitivity

    -27dBm

    Saturation power

    -6dBm

    EPON Function

    Support port-based rate limitation and bandwidth control;

    In compliant with IEEE802.3ah Standard

    Up to 20KM transmission Distance

    Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.

    Support Dynamic Bandwidth Allocation (DBA)

    Support ONU auto-discovery/Link detection/remote upgrade of software;

    Support VLAN division and user separation to avoid broadcast storm;

    Support various LLID configuration and single LLID configuration. Different user and different service could provide different QoS by means of different LLID channels.

    Support power-off alarm function, easy for link problem  detection

    Support broadcasting storm resistance function

    Support port isolation between different ports

    Support ACL and SNMP to configure data packet filter flexibly

    Specialized design for system breakdown prevention to maintain stable system

    Support dynamic distance calculation on EMS online

    Support RSTP, IGMP Proxy


    —————————————————————————————————————————————————

    onuonu


    EPON OLT Factory Configuration (User Manual and EMS)


    Download link:https://pan.baidu.com/s/1R_CDpI0co7xOhj70vLjtvg


    Code:ser2

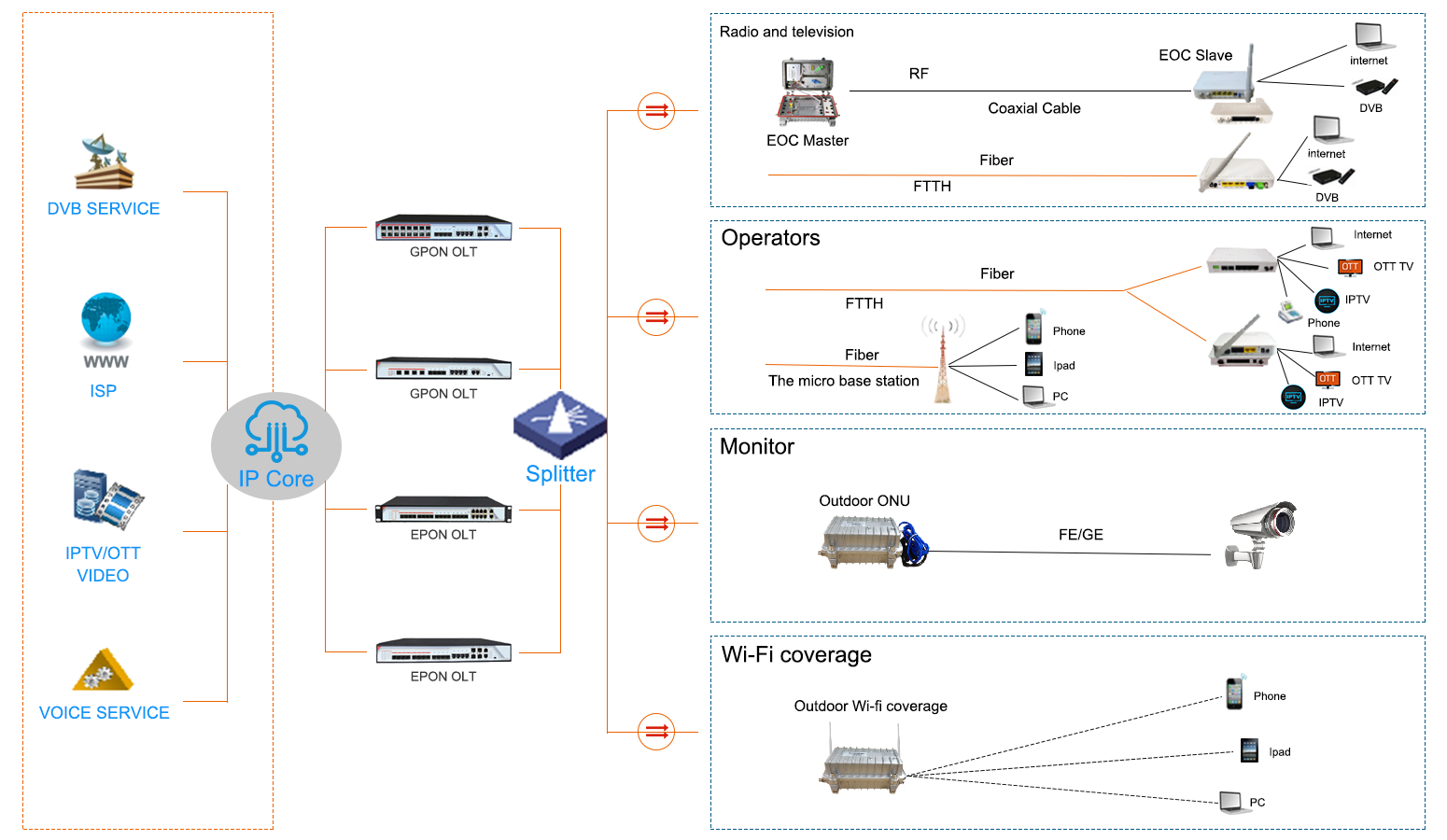

      Applications in FTTH

    PON OLT Network Application(1).png


    Related Articles

    ●  What is the PON+EOC network solution

    ●  Introduction and Comparison EPON and GPON



    Product

    Model

    Configuration

    Notes

    1U EPON OLT

    SPO-ES8808

    1U EPON OLT , 8PON ports, 8 GE uplink optic ports(SFP), 8GE uplink electric ports, 220VAC or -48VDC plug-in power modules, supports dual power configuration

    without SFP modules

    1U EPON OLT

    SPO-ES8444

    1U standalone GPON OLT with 1 USB interface, 8 PON ports, 4 uplink gigabit optical ports,4 uplink UTP ports, 4 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual power redundancy configuration

    without SFP modules
