    Sopto provides single-mode Planar Lightware Circuit Splitter (PLC type), Steel tube splitter, ABS Cassette,Plugin splitter or Tray type,Rack Mount type fiber PLC splitters
  • Contact Us
  • Single-mode Planar Lightware Circuit Splitter (PLC type) are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low-cost light distribution solution with small form factor and high reliability. The PLC type devices have high performance in terms of low insertion loss, low PDL high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1650nm and working in temperature from -40C to +85C. The PLCS devices have standard configurations of 1x4, 1x8, 1x16 and 1x32 configurations, as well as customized structures of 2x8, 2x16, 2x32 and 2x64.

    Steel tube splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

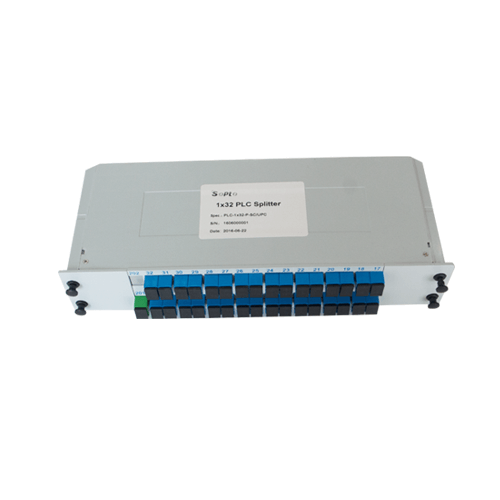

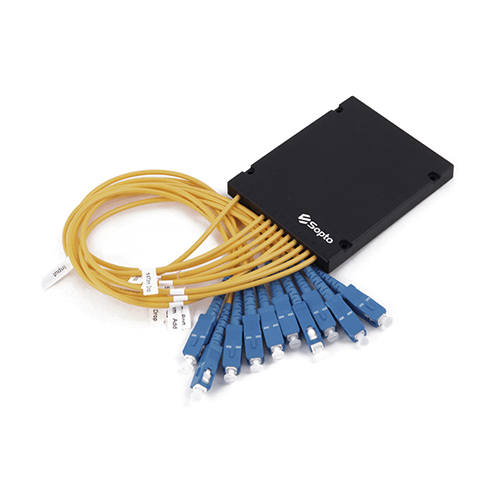

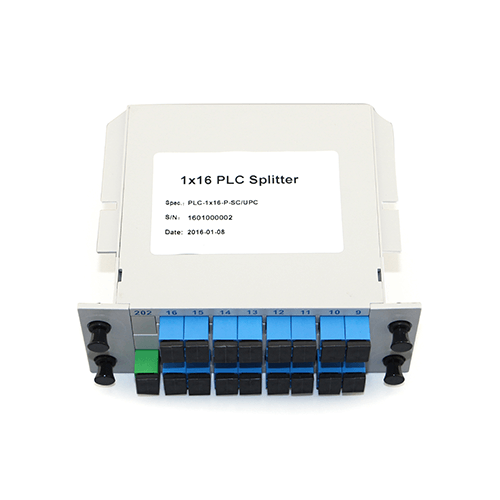

    ABS Cassette,Plugin splitter or Tray type is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets. splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

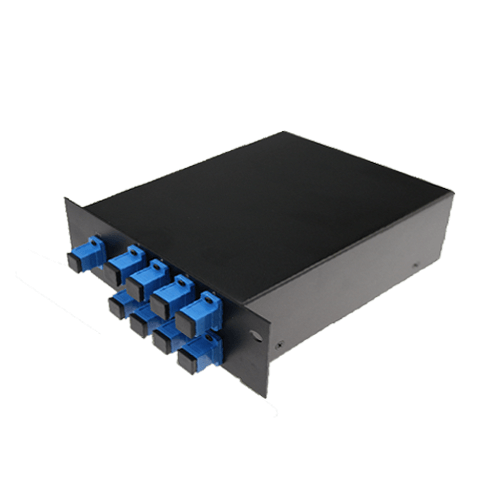

    Rack Mount type fiber PLC splitters are all with superior optical performance, high stability and high reliability to meet various application requirements.

    ● Compact design

    ● Low insertion loss and low PDL

    ● High reliability

    ● High channel counts

    ● Wide wavelength range

    ● Large operating temperature range

    ● Customized packaging and configuration


    1XN PLC Steel Tube Specifications:



    Port Configuration


    1X2

    1X4

    1X8

    1X16

    1X32

    1X64

    1X128

    Fiber Type

    SMF-28e or Customer specified

    Operating Wavelength(nm)

    1260~1650

    Insertion

    Loss

    (dB)

    PLC Device

    ≤3.8

    ≤7.4

    ≤10.5

    ≤13.5

    ≤16.8

    ≤20.5

    ≤24

    PLC

    Plug type

    ≤4.2

    ≤7.8

    ≤10.9

    ≤13.9

    ≤17.2

    ≤20.9

    ≤24.4

    PLC

    Adaptor type

    ≤4.4

    ≤8.0

    ≤11.1

    ≤14.1

    ≤17.4

    ≤21.1

    ≤24.6

    Polarization Dependent Loss(dB)

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.5

    Loss

    Uniformity

    (dB)

    Fixed working

    wavelength

    ≤0.6

    ≤0.7

    ≤1.0

    ≤1.2

    ≤1.5

    ≤2.0

    ≤2.5

    Full working

    bandwidth

    ≤1.1

    ≤1.2

    ≤1.5

    ≤1.7

    ≤2.0

    ≤2.5

    ≤3.0

    Return

    Loss

    (dB)

    PLC Device

    ≥55

    PLC

    Plug type

    ≥45PC; ≥50UPC;≥55APC;

    Directivity(dB)

     ≥55

    Temperature Dependent Loss

    (°C )

    -40~+85C

    Notes

    The test wavelengths of insertion loss in the table are: 1310nm, 1490nm, 1550nm, and the insertion loss in the 1260nm-1300m and 1600nm-1650nm wavelength range increases 0.3dB on the basis of the above index.

    The test wavelengths of Loss Uniformity in the table are: 1310nm, 1490nm, 1550nm. The channel uniformity index in the1260nm-1300nm and 1600nm-1650nm wavelength range increases 0.5dB based on the above index.

    Notes: 1. Specifications without fiber connectors.      2. Room temperature test.


    2XN Steel Tube PLC Specifications:


    Port Configuration


    2X2

    2X4

    2X8

    2X16

    2X32

    2X64

    2X128

    Fiber Type

    SMF-28e or Customer specified

    Operating Wavelength(nm)

    1260~1650

    Insertion

    Loss

    (dB)

    PLC Device

    ≤4.0

    ≤7.6

    ≤10.8

    ≤13.8

    ≤17.1

    ≤20.8

    ≤24.3

    PLC

    Plug type

    ≤4.4

    ≤8.0

    ≤11.2

    ≤14.2

    ≤17.5

    ≤21.2

    ≤24.7

    PLC

    Adaptor type

    ≤4.6

    ≤8.2

    ≤11.4

    ≤14.4

    ≤17.7

    ≤21.4

    ≤24.9

    Polarization Dependent Loss(dB)

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.5

    Loss

    Uniformity

    (dB)

    Fixed working

    wavelength

    ≤0.6

    ≤0.7

    ≤1.0

    ≤1.2

    ≤1.5

    ≤2.0

    ≤2.5

    Full working

    bandwidth

    ≤1.1

    ≤1.2

    ≤1.5

    ≤1.7

    ≤2.0

    ≤2.5

    ≤3.0

    Return

    Loss

    (dB)

    PLC Device

    ≥55

    PLC

    Plug type

    ≥45PC; ≥50UPC;≥55APC;

    Directivity(dB)

    ≥55

    Temperature Dependent Loss

    (°C )

    -40~+85C

    Notes

    The test wavelengths of insertion loss in the table are: 1310nm, 1490nm, 1550nm, and the insertion loss in the 1260nm-1300m and 1600nm-1650nm wavelength range increases 0.3dB on the basis of the above index.

    The test wavelengths of Loss Uniformity in the table are: 1310nm, 1490nm, 1550nm. The channel uniformity index in the 1260nm-1300nm and 1600nm-1650nm wavelength range increases 0.5dB based on the above index.

    Notes: 1. Specifications without fiber connectors.      2. Room temperature test.


    Compliance:

    ● Telcordia GR-1209-CORE

    ● Telcordia GR-1221-CORE

    Download


    ● FTTx systems

    ● LAN,WAN and Metro Networks

    ● Analog/Digital Passive Optical Networks

    ● CATV Networks

    ● Other applications in fiber optical systems


    Part NumberSPS-2×16-A1-09-1 S S U- B P

                                      1   2  3      4 5 6 7     8 9 10
    Product DescriptionSplitter PLC Type Steel Tube 2× 16 G.657.A1 0.9mm Diameter 1M Fiber Length with Loose Tube Input SC/UPC Output SC/UPC

    1 - Input Number

    12

    2 - Output Number

    248163264128etc

    3- Fiber Type

    DG.652DA1G.657.A1A2:G.657.A2MCustomized Fiber Type

    4 - Diameter

    25250μm090.9mm (with Loose Tube );202.0mm303.0mmIbuilt-in

    5 - Length

    050.5M11M151.5Metc

    6 - Input Connector

    【Null】:No Input ConnectorLLCS:SCF:FC

    7 - Output Connector

    【Null】:No Input ConnectorLLCS:SCF:FC

    8 - Connector Endface

    UUPCAAPCPPC

    9- Package

    BSteel TubeP:PluginAABS CassetteTTrayR:Rack Fixed

    10 -Type

    P:PLC
